DKFZD5030-5滚珠丝杠、DKFZD6310-5滚珠丝杠、DKFZD6310-6滚珠丝杠、DKFZD6312-5滚珠丝杠、DKFZD6312-6滚珠丝杠、DKFZD6312-5滚珠丝杠、DKFZD6312-6滚珠丝杠、DKFZD6316-5滚珠丝杠、DKFZD6316-6滚珠丝杠、DKFZD6316-5滚珠丝杠、DKFZD6316-6滚珠丝杠、DKFZD6320-5滚珠丝杠、DKFZD6320-6滚珠丝杠、DKFZD6320-5滚珠丝杠

发布时间：2019-10-17

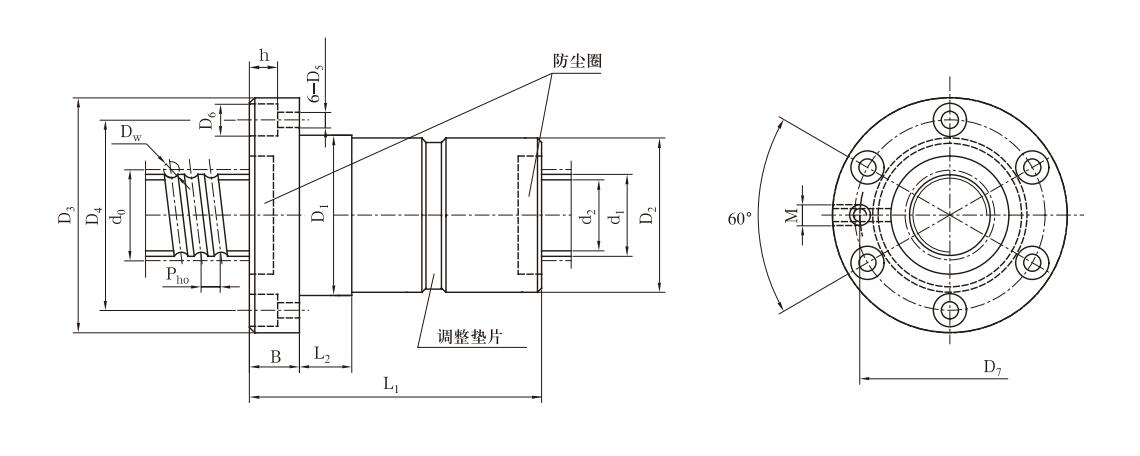

CODE	d0	Ph0	Xd1	Xd2	Dw	n	CaKN	C0aKN	Kc	D1	D2	L2	D3	B	D4	D5	M	L1
DKFZD2506-4	25	6	24	21.1	3.969	4	16.2	39.4	1022	45	45	10	65	10	54	6.6	M6	94
DKFZD2506-5	25	6	24	21.1	3.969	5	19.9	50	1281	45	45	10	65	10	54	6.6	M6	106
DKFZD2510-4	25	10	24	21.1	3.969	4	16.1	39.3	1011	45	45	15	65	11	54	6.6	M6	122
DKFZD3206-5	32	6	31	28.1	3.969	5	25.4	67.6	1664	50	50	10	80	12	65	9	M6	108
DKFZD3206-6	32	6	31	28.1	3.969	6	30	81.8	1980	50	50	10	80	12	65	9	M6	120
DKFZD3210-4	32	10	31	26.4	6.35	4	33.7	81.2	1324	62	62	15	92	14	77	9	M6	135
DKFZD3210-5	32	10	31	26.4	6.35	5	41.6	103.7	1661	62	62	15	92	14	77	9	M6	155
DKFZD3212-4	32	12	31	26.4	6.35	4	33.8	81.4	1326	62	62	15	92	14	77	9	M6	149
DKFZD3212-5	32	12	31	26.4	6.35	5	41.6	103.9	1663	62	62	15	92	14	77	9	M6	173
DKFZD4010-5	40	10	39	34.4	6.35	5	46.9	131.2	2026	70	70	20	100	14	85	9	M8X1	155
DKFZD4010-6	40	10	39	34.4	6.35	6	55.3	158.8	2431	70	70	20	100	14	85	9	M8X1	175
DKFZD4012-5	40	12	39	34.7	6.35	5	46.9	131.3	2023	70	70	20	100	14	85	9	M8X1	173
DKFZD4012-6	40	12	39	34.7	6.35	6	55.3	158.8	2428	70	70	20	100	14	85	9	M8X1	197
DKFZD4016-5	40	16	39	34.7	6.35	5	46.5	131.3	2009	70	70	30	100	14	85	9	M8X1	213
DKFZD4016-6	40	16	39	34.7	6.35	6	55.1	158.9	2412	70	70	30	100	14	85	9	M8X1	245
DKFZD4020-5	40	20	39	34.7	6.35	5	46.7	131.3	2009	70	70	30	100	14	85	9	M8X1	257
DKFZD4020-6	40	20	39	34.7	6.35	6	55	158.9	2410	70	70	30	100	14	85	9	M8X1	297
DKFZD40224	40	25	39	34.7	6.35	4	37.9	103.7	1588	70	70	30	100	14	85	9	M8X1	251
DKFZD40225	40	25	39	34.7	6.35	5	46.5	131.3	1990	70	70	30	100	14	85	9	M8X1	301
DKFZD5010-5	50	10	49	44.4	6.35	5	52.2	165	2438	82	82	20	118	16	100	11	M8X1	163
DKFZD5010-6	50	10	49	44.4	6.35	6	61.5	199.6	2923	82	82	20	118	16	100	11	M8X1	183
DKFZD5012-5	50	12	49	44.4	6.35	5	52.2	165	2438	82	82	20	118	16	100	11	M8X1	181
DKFZD5012-6	50	12	49	44.4	6.35	6	61.5	199.6	2923	82	82	20	118	16	100	11	M8X1	205
DKFZD5016-5	50	16	49	44.4	6.35	5	52.5	165.5	2452	82	82	30	118	16	100	11	M8X1	230
DKFZD5016-6	50	16	49	44.4	6.35	6	61.5	200.2	2940	82	82	30	118	16	100	11	M8X1	262
DKFZD5020-5	50	20	49	44.4	6.35	5	52.1	165.7	2430	82	82	30	118	16	100	11	M8X1	268
DKFZD5020-6	50	20	49	44.4	6.35	6	61.4	200.5	2914	82	82	30	118	16	100	11	M8X1	308
DKFZD50224	50	25	49	44.4	6.35	4	42.3	130.4	1933	82	82	30	118	16	100	11	M8X1	272
DKFZD50225	50	25	49	44.4	6.35	5	52	165.7	2419	82	82	30	118	16	100	11	M8X1	322
DKFZD5030-4	50	30	49	44.4	6.35	4	42.3	131	1920	82	82	30	118	16	100	11	M8X1	303
DKFZD5030-5	50	30	49	44.4	6.35	5	51.8	165.7	2403	82	82	30	118	16	100	11	M8X1	363
DKFZD6310-5	63	10	61	56.4	6.35	5	56.8	202.5	2868	95	95	20	135	22	115	13.5	M8X1	168
DKFZD6310-6	63	10	61	56.4	6.35	6	66.9	244.8	3437	95	95	20	135	22	115	13.5	M8X1	188
DKFZD6312-5	63	12	61	56.4	6.35	5	56.8	202.5	2915	95	95	20	135	22	115	13.5	M8X1	180
DKFZD6312-6	63	12	61	56.4	6.35	6	66.9	244.8	3494	95	95	20	135	22	115	13.5	M8X1	204
DKFZD6312-5	63	12	61	55.3	7.938	5	102.3	358.8	3904	98	98	20	138	20	118	13.5	M8X1	198
DKFZD6312-6	63	12	61	55.3	7.938	6	120.5	433.8	4680	98	98	20	138	20	118	13.5	M8X1	222
DKFZD6316-5	63	16	61	56.4	6.35	5	56.8	202.5	2915	95	95	30	135	22	115	13.5	M8X1	227
DKFZD6316-6	63	16	61	56.4	6.35	6	66.9	244.8	3494	95	95	30	135	22	115	13.5	M8X1	259
DKFZD6316-5	63	16	61	53.9	10	5	76.9	234.5	3056	107	107	30	147	20	127	13.5	M8X1	242
DKFZD6316-6	63	16	61	53.9	10	6	90.6	283.6	3637	107	107	30	147	20	127	13.5	M8X1	274
DKFZD6320-5	63	20	61	56.4	6.35	5	56.9	204.3	2912	95	95	40	135	22	115	13.5	M8X1	263
DKFZD6320-6	63	20	61	56.4	6.35	6	67.1	247.4	3490	95	95	40	135	22	115	13.5	M8X1	303
DKFZD6320-5	63	20	61	53.9	10	5	138.1	447.2	3971	107	107	40	147	20	127	13.5	M8X1	288
DKFZD6320-6	63	20	61	53.9	10	6	162.8	541.3	4763	107	107	40	147	20	127	13.5	M8X1	328
DKFZD6325-4	63	25	61	56.4	6.35	4	46.8	163.1	2321	95	95	40	135	22	115	13.5	M8X1	256
DKFZD6325-5	63	25	61	56.4	6.35	5	57.3	206.3	2903	95	95	40	135	22	115	13.5	M8X1	306
DKFZD6325-4	63	25	61	53.9	10	4	112.6	353.3	3161	107	107	40	147	20	127	13.5	M8X1	283.5
DKFZD6325-5	63	25	61	53.9	10	5	137.9	447.3	3959	107	107	40	147	20	127	13.5	M8X1	333.5
DKFZD6330-4	63	30	61	56.4	6.35	4	46.7	163.1	2305	95	95	40	135	22	115	13.5	M8X1	301
DKFZD6330-5	63	30	61	56.4	6.35	5	57.1	206.2	2882	95	95	40	135	22	115	13.5	M8X1	361
DKFZD6330-4	63	30	61	53.9	10	4	112.4	353.4	3149	107	107	40	147	20	127	13.5	M8X1	329
DKFZD6330-5	63	30	61	53.9	10	5	137.6	447.4	3943	107	107	40	147	20	127	13.5	M8X1	389
DKFZD6340-4	63	40	61	56.4	6.35	4	46.5	163.2	2263	95	95	40	135	22	115	13.5	M8X1	389
DKFZD6340-5	63	40	61	56.4	6.35	5	56.8	206.4	2830	95	95	40	135	22	115	13.5	M8X1	469
DKFZD6340-4	63	40	61	53.9	10	4	111.8	353.4	3118	107	107	40	147	20	127	13.5	M8X1	400
DKFZD6340-5	63	40	61	53.9	10	5	137.5	447.4	3904	107	107	40	147	20	127	13.5	M8X1	480
