JF8020-8滚珠丝杠、JF8025-5滚珠丝杠、JF8025-8滚珠丝杠、JF8032-5滚珠丝杠、JF8032-8滚珠丝杠、JF10020-5滚珠丝杠、JF10020-8滚珠丝杠、JF10025-5滚珠丝杠、JF10025-8滚珠丝杠、JF10032-5滚珠丝杠、JF10032-8滚珠丝杠、JF10040-4滚珠丝杠、JF12520-5滚珠丝杠、JF12520-8滚珠丝杠、JF12525-5滚珠丝杠、JF12525-8滚珠丝杠 — 搜轴承黑板报
搜轴承 -- 黑板报 -- JF8020-8滚珠丝杠、JF8025-5滚珠丝杠、JF8025-8滚珠丝杠...

JF8020-8滚珠丝杠、JF8025-5滚珠丝杠、JF8025-8滚珠丝杠、JF8032-5滚珠丝杠、JF8032-8滚珠丝杠、JF10020-5滚珠丝杠、JF10020-8滚珠丝杠、JF10025-5滚珠丝杠、JF10025-8滚珠丝杠、JF10032-5滚珠丝杠、JF10032-8滚珠丝杠、JF10040-4滚珠丝杠、JF12520-5滚珠丝杠、JF12520-8滚珠丝杠、JF12525-5滚珠丝杠、JF12525-8滚珠丝杠

发布时间：2019-09-29

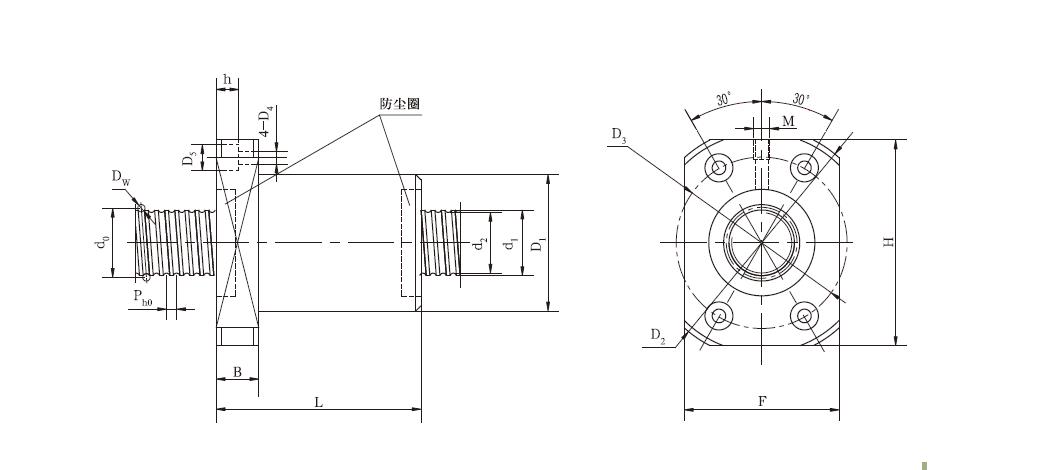

CODE d0 Ph0 Xd1 Dw Xd2 n CaKN C0aKN Kc D1g6 D1 D2 L2 L3 D3 B D5 D4 L1
JF8020-8 80 20 78 12.7 68.9184916 8 381.3 1074.7 3959 125 125 125 25 15 170 28 13.5 150 218
JF80225 80 25 78 12.7 68.9184916 5 254.6 670.5 2520 125 125 125 25 15 170 28 13.5 150 189
JF80228 80 25 78 12.7 68.9184916 8 381.3 1072.8 3944 125 125 125 25 15 170 28 13.5 150 264
JF8032-5 80 32 78 12.7 68.9184916 5 253.5 668.4 2503 125 125 125 25 15 170 28 13.5 150 231
JF8032-8 80 32 78 12.7 68.9184916 8 379.8 1069.5 3919 125 125 125 25 15 170 28 13.5 150 327
JF10020-5 100 20 97 12.7 87.9184916 5 292.1 887.3 3177 150 150 150 25 20 207 28 17.5 180 160
JF10020-8 100 20 97 12.7 87.9184916 8 437.6 1419.7 4973 150 150 150 25 20 207 28 17.5 180 220
JF100225 100 25 97 15.875 85.6981145 5 380.3 1050.5 3114 150 150 150 25 20 207 28 17.5 180 196
JF100228 100 25 97 15.875 85.6981145 8 571.2 1679.3 4876 150 150 150 25 20 207 28 17.5 180 271
JF10032-5 100 32 97 15.875 85.6981145 5 380.3 1047.4 3102 150 150 150 25 20 207 28 17.5 180 240
JF10032-8 100 32 97 15.875 85.6981145 8 569.8 1675.9 4855 150 150 150 25 20 207 28 17.5 180 336
JF10040-4 100 40 97 15.875 85.6981145 4 312.7 835.5 2447 150 150 150 40 20 207 32 17.5 180 238
JF12520-5 125 20 123.5 12.7 114.4 5 322.5 1103.2 3790 170 170 170 25 25 244 32 22 210 158
JF12520-8 125 20 123.5 12.7 114.4 8 483.2 1765.1 5932 170 170 170 25 25 244 32 22 210 218
JF12525-5 125 25 123.5 18.256 110.642744 5 507.7 1523.5 3872 190 190 190 25 25 258 32 22 224 204
JF12525-8 125 25 123.5 18.256 110.642744 8 760.6 2437.6 6061 190 190 190 25 25 258 32 22 224 279
JF12532-5 125 32 123.5 20.638 109.21416 5 578.7 1665.2 3865 190 190 190 25 25 258 32 22 224 252
JF12532-8 125 32 123.5 20.638 109.21416 8 867 2664.4 6050 190 190 190 25 25 258 32 22 224 348
JF12540-4 125 40 123.5 20.638 109.21416 4 476.5 1329.7 3112 190 190 190 40 25 258 32 22 224 252
JF16020-5 160 20 156.5 12.7 147.4184916 5 364.8 1493.2 4269 220 220 220 25 25 294 36 22 260 163
JF16020-8 160 20 156.5 12.7 147.4184916 8 546.6 2389.1 6682 220 220 220 25 25 294 36 22 260 223
JF160225 160 25 156.5 18.256 143.642744 5 580.6 2015.5 4399 240 240 240 40 25 314 36 22 280 201
JF160228 160 25 156.5 18.256 143.642744 8 869.8 3224.7 6885 240 240 240 40 25 314 36 22 280 276
JF16032-5 160 32 156.5 20.638 142.21416 5 679.8 2306.2 5053 240 240 240 40 25 314 36 22 280 241
JF16032-8 160 32 156.5 20.638 142.21416 8 1018.5 3690 7909 240 240 240 40 25 314 36 22 280 337
JF16040-4 160 40 156.5 25.4 138.6427 4 740 2213.4 4056 240 240 240 40 25 314 36 22 280 251
JF200225 200 25 196.5 18.256 183.642744 5 666.1 2736.4 6232 280 280 280 40 25 349 40 22 315 195
JF200228 200 25 196.5 18.256 183.642744 8 997.8 4378.3 9755 280 280 280 40 25 349 40 22 315 270
JF20032-5 200 32 196.5 20.638 182.21416 5 756.6 2949.6 6156 280 280 280 40 25 349 40 22 315 242
JF20032-8 200 32 196.5 20.638 182.21416 8 1133.5 4719.4 9637 280 280 280 40 25 349 40 22 315 338
JF20040-4 200 40 196.5 25.4 178.6427 4 838.5 2882.8 5030 300 300 300 40 25 369 40 22 335 252
JF20040-8 200 40 196.5 25.4 178.6427 8 1571.8 5949.6 19797 300 300 300 40 25 369 40 22 335 412
