FFZL2004L-3、FFZL2004-3、FFZL2005-3、FFZL2505-3、FFZL2506-3、FFZL3205-3、FFZL3206-3、FFZL4006-3、FFZL4008-3、FFZL4010-3、FFZL4012-3、FFZL5006-4、FFZL5008-4、FFZL5010-4、FFZL5012-4、FFZL6308-4、FFZL6310-4、FFZL6312-4、FFZL8010-4、FFZL8012-4滚珠丝杠

发布时间：2025-05-04

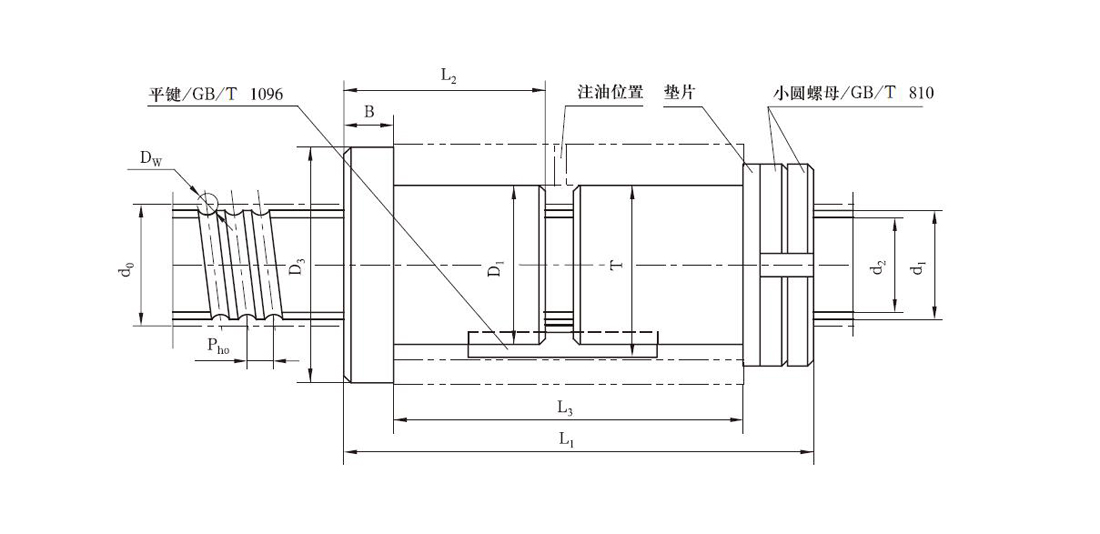

规格代号公称直径 d0 公称导程 Ph0 丝杠直径 d1 钢球直径 Dw 丝杠底径 d2 循环总圈数 n 动载荷Ca KN 静载荷C0a KN 刚度Kc N/μm D1(h6) D3 L1 L2 L3 B T 小圆螺母平键

FFZL2004L-3 20 4 19.3 2.381 17.5 3 5.3 12.1 519 30 45 70 28 44 6 32 M30x1.5 4x4x30

FFZL2004-3 20 4 19.1 3 16.9 3 7.3 15.4 519 30 45 70 28 44 6 32 M30x1.5 4x4x30

FFZL2005-3 20 5 19.5 3.5 16.9 3 9.1 18.3 536 34 48 81 34 55 6 36.5 M33x1.5 5x5x40

FFZL2505-3 25 5 24.5 3.5 21.9 3 10.2 23.6 657 42 58 84 34.5 55 8 44.5 M42x1.5 5x5x40

FFZL2506-3 25 6 23.9 3.969 20.9 3 11.3 23.7 636 45 62 95 41 66 8 48 M45x1.5 6x6x45

FFZL3205-3 32 5 31.5 3.5 28.9 3 11.7 31.4 826 50 68 88 37 55 8 52.5 M48x1.5 5x5x40

FFZL3206-3 32 6 30.9 3.969 27.9 3 13 32.1 839 50 68 99 41 66 8 53 M48x1.5 6x6x45

FFZL4006-3 40 6 38.9 3.969 35.9 3 15.1 43.8 1017 60 80 101 42 66 10 63 M60x2 6x6x45

FFZL4008-3 40 8 38.6 5 34.9 3 19.8 51 1004 60 80 119 52 84 10 63 M60x2 8x7x55

FFZL4010-3 40 10 39.5 7.144 34.3 3 30 66.3 973 65 85 140 62 102 13 68 M64x2 6x6x60

FFZL4012-3 40 12 38 7.144 32.7 4 24.9 70.7 909 65 85 161 75 121 15 68 M64x2 6x6x60

FFZL5006-4 50 6 48.9 3.969 45.9 4 21.7 76.3 1558 72 95 117 50 78 10 75.5 M72x2 8x7x55

FFZL5008-4 50 8 48.6 5 44.9 4 28.7 89.3 1756 75 95 144 64 102 12 79 M72x2 12x8x80

FFZL5010-4 50 10 49.5 7.144 44.3 4 46 124.2 1874 75 95 167 76 124 13 79 M72x2 12x8x100

FFZL5012-4 50 12 48 7.144 42.7 4 44.7 117 1137 75 95 191 89 146 15 79 M72x2 12x8x100

FFZL6308-4 63 8 61 5 57.3 4 33 121.1 2018 85 110 144 64 102 12 89 M85x2 12x8x80

FFZL6310-4 63 10 61 7.144 55.7 4 51.5 160.6 2023 90 115 168 77 124 14 95 M90x2 16x10x100

FFZL6312-4 63 12 61 7.144 55.8 4 50.3 153.3 2049 90 115 195 90 150 15 95 M90x2 16x10x100

FFZL8010-4 80 10 78 7.144 72.7 4 58.1 311.4 2479 110 135 180 79 127 15 116 M110x2 20x12x100

FFZL8012-4 80 12 78 7.144 72.7 4 58.3 211 2566 110 135 204 91 150 16 116 M110x2 20x12x100

上一篇：JF8020-8滚珠丝杠、JF8025-5滚珠丝杠、JF8025-8滚珠丝杠、JF8032-5滚珠丝杠、JF8032-8滚珠丝杠、JF10020-5滚珠丝杠、JF10020-8滚珠丝杠、JF10025-5滚珠丝杠、JF10025-8滚珠丝杠、JF10032-5滚珠丝杠、JF10032-8滚珠丝杠、JF10040-4滚珠丝杠、JF12520-5滚珠丝杠、JF12520-8滚珠丝杠、JF12525-5滚珠丝杠、JF12525-8滚珠丝杠 —— 下一篇：FFZD6312-5、FFZD6316-4、FFZD6316-5、FFZD6320-4、FFZD6320-5、FFZD8010-4、FFZD8010-5、FFZD8012-4、FFZD8012-5、FFZD8016-4、FFZD8016-5、FFZD8020-4、FFZD8020-5、FFZD10016-4、FFZD10016-5、FFZD10020-4、FFZD10020-5、FFZD12016-5、FFZD12016-7、FFZD12020-5、FFZD12020-7滚珠丝杠

返回搜轴承首页

规格代号	公称直径 d0	公称导程 Ph0	丝杠直径 d1	钢球直径 Dw	丝杠底径 d2	循环总圈数 n	动载荷Ca KN	静载荷C0a KN	刚度Kc N/μm	D1(h6)	D3	L1	L2	L3	B	T	小圆螺母	平键
FFZL2004L-3	20	4	19.3	2.381	17.5	3	5.3	12.1	519	30	45	70	28	44	6	32	M30x1.5	4x4x30
FFZL2004-3	20	4	19.1	3	16.9	3	7.3	15.4	519	30	45	70	28	44	6	32	M30x1.5	4x4x30
FFZL2005-3	20	5	19.5	3.5	16.9	3	9.1	18.3	536	34	48	81	34	55	6	36.5	M33x1.5	5x5x40
FFZL2505-3	25	5	24.5	3.5	21.9	3	10.2	23.6	657	42	58	84	34.5	55	8	44.5	M42x1.5	5x5x40
FFZL2506-3	25	6	23.9	3.969	20.9	3	11.3	23.7	636	45	62	95	41	66	8	48	M45x1.5	6x6x45
FFZL3205-3	32	5	31.5	3.5	28.9	3	11.7	31.4	826	50	68	88	37	55	8	52.5	M48x1.5	5x5x40
FFZL3206-3	32	6	30.9	3.969	27.9	3	13	32.1	839	50	68	99	41	66	8	53	M48x1.5	6x6x45
FFZL4006-3	40	6	38.9	3.969	35.9	3	15.1	43.8	1017	60	80	101	42	66	10	63	M60x2	6x6x45
FFZL4008-3	40	8	38.6	5	34.9	3	19.8	51	1004	60	80	119	52	84	10	63	M60x2	8x7x55
FFZL4010-3	40	10	39.5	7.144	34.3	3	30	66.3	973	65	85	140	62	102	13	68	M64x2	6x6x60
FFZL4012-3	40	12	38	7.144	32.7	4	24.9	70.7	909	65	85	161	75	121	15	68	M64x2	6x6x60
FFZL5006-4	50	6	48.9	3.969	45.9	4	21.7	76.3	1558	72	95	117	50	78	10	75.5	M72x2	8x7x55
FFZL5008-4	50	8	48.6	5	44.9	4	28.7	89.3	1756	75	95	144	64	102	12	79	M72x2	12x8x80
FFZL5010-4	50	10	49.5	7.144	44.3	4	46	124.2	1874	75	95	167	76	124	13	79	M72x2	12x8x100
FFZL5012-4	50	12	48	7.144	42.7	4	44.7	117	1137	75	95	191	89	146	15	79	M72x2	12x8x100
FFZL6308-4	63	8	61	5	57.3	4	33	121.1	2018	85	110	144	64	102	12	89	M85x2	12x8x80
FFZL6310-4	63	10	61	7.144	55.7	4	51.5	160.6	2023	90	115	168	77	124	14	95	M90x2	16x10x100
FFZL6312-4	63	12	61	7.144	55.8	4	50.3	153.3	2049	90	115	195	90	150	15	95	M90x2	16x10x100
FFZL8010-4	80	10	78	7.144	72.7	4	58.1	311.4	2479	110	135	180	79	127	15	116	M110x2	20x12x100
FFZL8012-4	80	12	78	7.144	72.7	4	58.3	211	2566	110	135	204	91	150	16	116	M110x2	20x12x100
