FF1204-3、FF1604-3、FF1605-3、FF2004LH-3、FF2004-3、FF2005-3、FF2504-3、FF2505-3、FF2506-3、FF3204-3、FF3204-5、FF3205-3、FF3205-5、FF3206-3、FF3206-5、FF3210-3、FF3210-5、FF4005-3、FF4005-5、FF4006-3、FF4006-5、FF4008-3滚珠丝杠
发布时间：2025-06-20

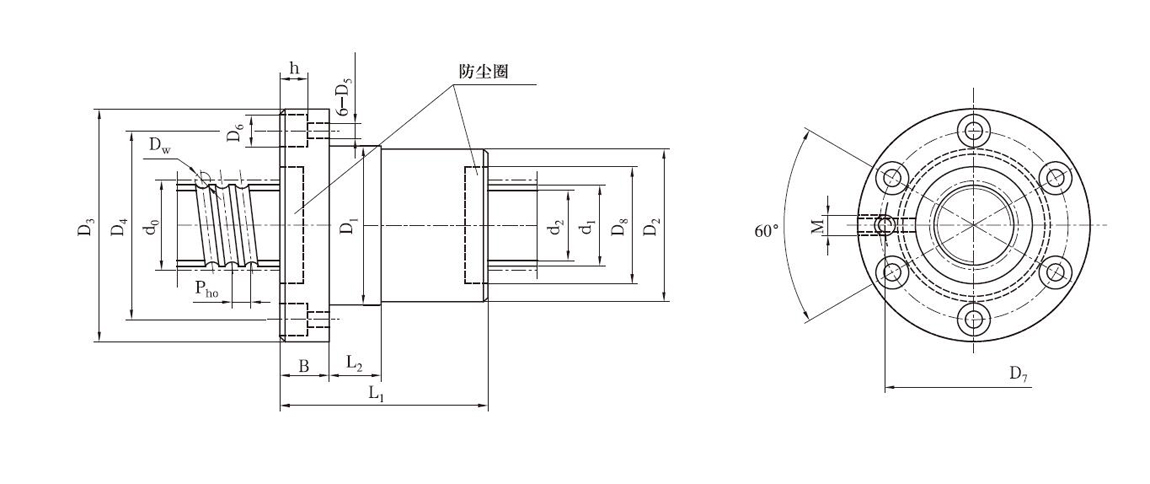

| CODE | d0 | Ph0 | d1 | Dw | Xd2 | n | CaKN | C0aKN | kc | D1(g6) | D2 | L2 | D3 | B | D4 | D5 | D6 | h | D7 | M | D8 | L1 |
| FF1204-3 | 12 | 4 | 11.3 | 2.381 | 9.5 | 3 | 4 | 6.7 | 208 | 22 | 22 | 10 | 44 | 8 | 32 | 4.8 | 8.5 | 4.5 | 32 | M2.5 | 16 | 35 |
| FF1604-3 | 16 | 4 | 15.3 | 2.381 | 13.5 | 3 | 4.8 | 9.7 | 221 | 28 | 28 | 10 | 52 | 10 | 38 | 5.8 | 10 | 6 | 32 | M6 | 20 | 37 |
| FF1605-3 | 16 | 5 | 15.5 | 3.5 | 12.9 | 3 | 7.6 | 13.2 | 200 | 28 | 28 | 10 | 52 | 10 | 38 | 5.8 | 10 | 6 | 32 | M6 | 22 | 42 |
| FF2004LH-3 | 20 | 4 | 19.3 | 2.381 | 17.5 | 3 | 5.3 | 12.1 | 259 | 36 | 36 | 10 | 62 | 11 | 48 | 5.8 | 10 | 6 | 40 | M6 | 25 | 38 |
| FF2004-3 | 20 | 4 | 19.1 | 3 | 16.9 | 3 | 7.3 | 15.4 | 259 | 36 | 36 | 10 | 62 | 11 | 48 | 5.8 | 10 | 6 | 40 | M6 | 25 | 38 |
| FF2005-3 | 20 | 5 | 19.5 | 3.5 | 16.9 | 3 | 9.1 | 18.3 | 268 | 36 | 36 | 10 | 62 | 11 | 48 | 5.8 | 10 | 6 | 40 | M6 | 25 | 43 |
| FF2504-3 | 25 | 4 | 24.1 | 3 | 21.9 | 3 | 8.3 | 20.2 | 327 | 40 | 40 | 10 | 66 | 11 | 53 | 5.8 | 10 | 6 | 46 | M6 | 30 | 38 |
| FF2505-3 | 25 | 5 | 24.5 | 3.5 | 21.9 | 3 | 10.2 | 23.6 | 328 | 40 | 40 | 10 | 66 | 11 | 53 | 5.8 | 10 | 6 | 46 | M6 | 30 | 43 |
| FF2506-3 | 25 | 6 | 23.9 | 3.969 | 20.9 | 3 | 11.3 | 23.7 | 318 | 40 | 40 | 10 | 66 | 11 | 53 | 5.8 | 10 | 6 | 46 | M6 | 30 | 49 |
| FF3204-3 | 32 | 4 | 31.1 | 3 | 28.9 | 3 | 9.6 | 27.9 | 411 | 50 | 50 | 10 | 76 | 11 | 63 | 5.8 | 10 | 6 | 56 | M6 | 38 | 38 |
| FF3204-5 | 32 | 4 | 31.1 | 3 | 28.9 | 5 | 15 | 46.5 | 670 | 50 | 50 | 10 | 76 | 11 | 63 | 5.8 | 10 | 6 | 56 | M6 | 38 | 47 |
| FF3205-3 | 32 | 5 | 31.5 | 3.5 | 28.9 | 3 | 11.7 | 31.4 | 413 | 50 | 50 | 10 | 82 | 13 | 67 | 7 | 12 | 7 | 62 | M6 | 38 | 45 |
| FF3205-5 | 32 | 5 | 31.5 | 3.5 | 28.9 | 5 | 18.1 | 52.4 | 673 | 50 | 50 | 10 | 82 | 13 | 67 | 7 | 12 | 7 | 62 | M6 | 38 | 56 |
| FF3206-3 | 32 | 6 | 30.9 | 3.969 | 27.9 | 3 | 13 | 32.1 | 419 | 50 | 50 | 10 | 82 | 13 | 67 | 7 | 12 | 7 | 62 | M6 | 38 | 51 |
| FF3206-5 | 32 | 6 | 30.9 | 3.969 | 27.9 | 5 | 20.2 | 53.5 | 683 | 50 | 50 | 10 | 82 | 13 | 67 | 7 | 12 | 7 | 62 | M6 | 38 | 66 |
| FF3210-3 | 32 | 10 | 32.5 | 7.144 | 27.3 | 3 | 25.7 | 50.2 | 386 | 53 | 53 | 15 | 90 | 15 | 71 | 9 | 15 | 9 | 70 | M6 | 44 | 76 |
| FF3210-5 | 32 | 10 | 32.5 | 7.144 | 27.3 | 5 | 40 | 83.8 | 628 | 53 | 53 | 15 | 90 | 15 | 71 | 9 | 15 | 9 | 70 | M6 | 44 | 99 |
| FF4005-3 | 40 | 5 | 39.5 | 3.5 | 36.9 | 3 | 13 | 40.6 | 512 | 60 | 60 | 10 | 94 | 15 | 75 | 9 | 15 | 9 | 74 | M6 | 48 | 47 |
| FF4005-5 | 40 | 5 | 39.5 | 3.5 | 36.9 | 5 | 20.2 | 67.7 | 835 | 60 | 60 | 10 | 94 | 15 | 75 | 9 | 15 | 9 | 75 | M6 | 48 | 58 |
| FF4006-3 | 40 | 6 | 38.9 | 3.969 | 35.9 | 3 | 15.1 | 43.8 | 508 | 60 | 60 | 10 | 94 | 15 | 75 | 9 | 15 | 9 | 74 | M6 | 48 | 53 |
| FF4006-5 | 40 | 6 | 38.9 | 3.969 | 35.9 | 5 | 23.5 | 73 | 829 | 60 | 60 | 10 | 94 | 15 | 75 | 9 | 15 | 9 | 75 | M6 | 48 | 68 |
| FF4008-3 | 40 | 8 | 38.6 | 5 | 34.9 | 3 | 19.8 | 51 | 502 | 63 | 63 | 15 | 108 | 18 | 85 | 11 | 18 | 11 | 85 | M6 | 50 | 67 |
