DFV01510-2.7滚珠丝杠、DFV02005-4.8滚珠丝杠、DFV02510-2.7滚珠丝杠、DFV03210-4.8滚珠丝杠、DFV03220-2.7滚珠丝杠、DFV04010-4.8滚珠丝杠、DFV04020-2.7滚珠丝杠、DFV05010-4.8滚珠丝杠、DFV05020-2.7滚珠丝杠、DFV06310-4.8滚珠丝杠、DFV06320-2.7滚珠丝杠、DFV08010-4.8滚珠丝杠、DFV08020-4.8滚珠丝杠、DFV08020-7.6滚珠丝杠

发布时间：2025-10-22

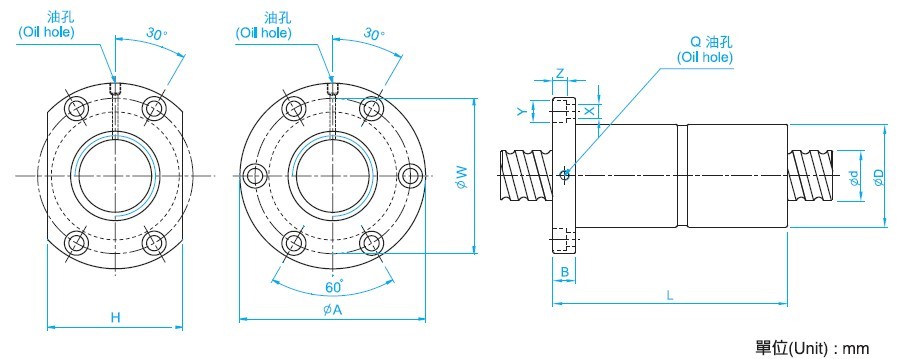

型号 滾珠螺杆 , 螺帽之基准数据
d I Da D A B L W H X Q n Ca Coa K
DFV01510-2.7 15 10 3.175 34 58 10 107 45 34 5.5 M6 2.7*1 693 1267 28
DFV02005-4.8 20 5 3.175 44 67 11 112 55 52 5.5 M6 4.8*1 1255 2816 65
DFV02510-2.7 25 10 6.35 68 102 15 130 84 82 9 M8 2.7*1 2205 4118 47
DFV03210-4.8 32 10 6.35 74 108 15 186 90 82 9 M8 4.8*1 3963 9011 106
DFV03220-2.7 　 20 6.35 74 108 16 200 90 82 9 M8 2.7*1 2481 5385 59
DFV04010-4.8 40 10 6.35 82 124 18 188 102 94 11 M8 4.8*1 4372 11264 130
DFV04020-2.7 　 20 6.35 82 124 18 200 102 90 11 M8 2.7*1 2723 6653 73
DFV05010-4.8 50 10 6.35 93 135 16 173 113 98 11 M8 4.8*1 4823 14080 162
DFV05020-2.7 　 20 9.525 105 152 28 221 128 110 14 M8 2.7*1 5149 12118 93
DFV06310-4.8 63 10 6.35 108 154 22 195 130 110 14 M8 4.8*1 5377 18023 202
DFV06320-2.7 　 20 9.525 122 180 28 220 150 130 18 M8 2.7*1 5651 14969 115
DFV08010-4.8 80 10 6.35 130 176 22 195 152 132 14 M8 4.8*1 5931 22528 255
DFV08020-4.8 　 20 9.525 143 204 28 340 172 148 18 M8 4.8*1 10352 34215 258
DFV08020-7.6 　 20 9.525 143 204 28 460 172 148 18 M8 3.8*2 15370 54175 409
