DFI01604-4滚珠丝杠、DFI01605-4滚珠丝杠、DFI02004-4滚珠丝杠、DFI02005-4滚珠丝杠、DFI02504-4滚珠丝杠、DFI02505-4滚珠丝杠、DFI02510-4滚珠丝杠、DFI03204-4滚珠丝杠、DFI03205-4滚珠丝杠、DFI03210-4滚珠丝杠、DFI04005-4滚珠丝杠、DFI04010-4滚珠丝杠、DFI05010-4滚珠丝杠、DFI06310-4滚珠丝杠、DFI08010-4滚珠丝杠

发布时间：2026-08-13

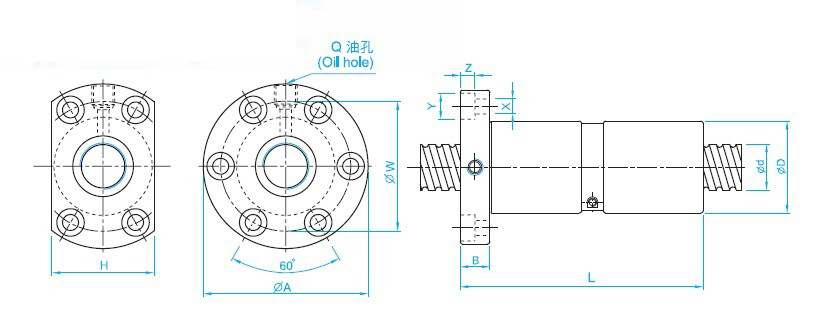

型 号 滾珠螺杆 , 螺帽之基准数据
d l Da D A B L W H X Y Z Q n Ca Coa K
DFI01604-4 16 4 2.381 30 49 10 80 39 34 4.5 8 4.5 M6 4 640 1340 35
DFI01605-4 　 5 3.175 30 49 10 100 39 34 4.5 8 4.5 M6 4 780 1790 36
DFI02004-4 20 4 2.381 34 57 11 80 45 40 5.5 9.5 5.5 M6 4 670 1480 41
DFI02005-4 　 5 3.175 34 57 11 101 45 40 5.5 9.5 5.5 M6 4 1130 2380 45
DFI02504-4 25 4 2.381 40 63 11 80 51 46 5.5 9.5 5.5 M6 4 760 1950 48
DFI02505-4 　 5 3.175 40 63 11 101 51 46 5.5 9.5 5.5 M8 4 1280 3110 63
DFI02510-4 　 10 4.762 46 72 12 145 58 52 6.5 11 6.5 M6 4 1944 3877 65
DFI03204-4 32 4 2.381 46 72 12 80 58 52 6.5 11 6.5 M6 4 860 3050 56
DFI03205-4 　 5 3.175 46 72 12 102 58 52 6.5 11 6.5 M8 4 1450 4150 72
DFI03210-4 　 10 6.35 54 88 15 162 70 62 9 14 8.5 M8 4 3390 7170 72
DFI04005-4 40 5 3.175 56 90 15 105 72 64 9 14 8.5 M8 4 1610 5330 98
DFI04010-4 　 10 6.35 62 104 18 165 82 70 11 17.5 11 M8 4 3910 9520 90
DFI05010-4 50 10 6.35 72 114 18 171 92 82 11 17.5 11 M8 4 4450 12500 117
DFI06310-4 63 10 6.35 85 131 22 182 107 95 14 20 13 M8 4 5070 16600 114
DFI08010-4 80 10 6.35 105 150 22 182 127 115 14 20 13 M8 4 5620 21300 162
