搜轴承 -- 黑板报 -- ALL44塞坚果、ALL48塞坚果、AL44塞坚果、ALL56塞坚果、A...
ALL44塞坚果、ALL48塞坚果、AL44塞坚果、ALL56塞坚果、ALL60塞坚果、AL52塞坚果、AL60塞坚果、ALL64塞坚果、AL64塞坚果、ALL72塞坚果、ALL76塞坚果、AL68塞坚果、ALL84塞坚果、ALL88塞坚果、AL76塞坚果、AL80塞坚果、ALL96塞坚果、AL88塞坚果、AL96塞坚果、AL100塞坚果
发布时间：2025-05-05

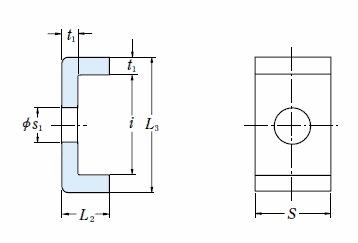

| Part number | t1 | S | L2 | s1 | i | L3 | Weight | Nut Numbers |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | ||
| ALL44 | 4 | 20 | 12 | 7 | 13,5 | 21,5 | 0,0212 | ANL44 |
| ALL48 | 4 | 20 | 12 | 9 | 17,5 | 25,5 | 0,0229 | ANL48,ANL52 |
| AL44 | 4 | 20 | 12 | 9 | 22,5 | 30,5 | 0,026 | AN44,AN48 |
| ALL56 | 4 | 24 | 12 | 9 | 17,5 | 25,5 | 0,0292 | ANL56 |
| ALL60 | 4 | 24 | 12 | 9 | 20,5 | 28,5 | 0,0315 | ANL60 |
| AL52 | 4 | 24 | 12 | 12 | 25,5 | 33,5 | 0,034 | AN52,AN56 |
| AL60 | 4 | 24 | 12 | 12 | 30,5 | 38,5 | 0,038 | AN60 |
| ALL64 | 5 | 24 | 15 | 9 | 21 | 31 | 0,0455 | ANL64,ANL68 |
| AL64 | 5 | 24 | 15 | 12 | 31 | 41 | 0,0535 | AN64 |
| ALL72 | 5 | 28 | 15 | 9 | 20 | 30 | 0,0505 | ANL72 |
| ALL76 | 5 | 28 | 15 | 12 | 24 | 34 | 0,053 | ANL76,ANL80 |
| AL68 | 5 | 28 | 15 | 14 | 38 | 48 | 0,0665 | AN68,AN72 |
| ALL84 | 5 | 32 | 15 | 12 | 24 | 34 | 0,061 | ANL84 |
| ALL88 | 5 | 32 | 15 | 14 | 28 | 38 | 0,0645 | ANL88,ANL92 |
| AL76 | 5 | 32 | 15 | 14 | 40 | 50 | 0,0795 | AN76 |
| AL80 | 5 | 32 | 15 | 18 | 45 | 55 | 0,082 | AN80,AN84 |
| ALL96 | 5 | 36 | 15 | 14 | 28 | 38 | 0,073 | ANL96,ANL100 |
| AL88 | 5 | 36 | 15 | 18 | 43 | 53 | 0,09 | AN88,AN92 |
| AL96 | 5 | 36 | 15 | 18 | 53 | 63 | 0,104 | AN96 |
| AL100 | 5 | 40 | 15 | 18 | 45 | 55 | 0,105 | AN100 |
