搜轴承 -- 黑板报 -- RNFCL1632A2滚珠丝杠与螺母、RNFCL1632A2S滚珠丝杠与螺母...

RNFCL1632A2滚珠丝杠与螺母、RNFCL1632A2S滚珠丝杠与螺母、RNFCL1632A3滚珠丝杠与螺母、RNFCL1632A3S滚珠丝杠与螺母、RNFCL1632A6滚珠丝杠与螺母、RNFCL1632A6S滚珠丝杠与螺母、RNFCL2040A2滚珠丝杠与螺母、RNFCL2040A2S滚珠丝杠与螺母、RNFCL2040A3滚珠丝杠与螺母

发布时间：2026-01-31

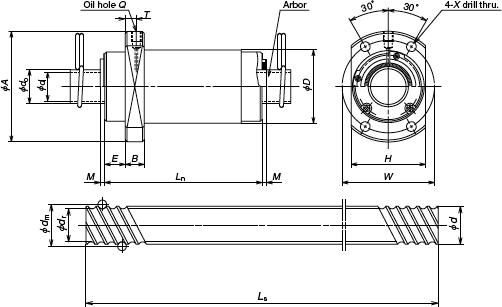

Part number	d	l	Dw	dm	dr	Turns x Circuits	Ca	C0a	Axial play max.	D	A	H	B	E
RNFCL1632A2	16	32	2.778	16.65	13.5	0.7x4	4600	8460	0.1	32	50	34	10	10
RNFCL1632A2S	16	32	2.778	16.65	13.5	0.7x4	4600	8460	0.1	32	50	34	10	10
RNFCL1632A3	16	32	2.778	16.65	13.5	1.7x2	5430	10400	0.1	32	50	34	10	10
RNFCL1632A3S	16	32	2.778	16.65	13.5	1.7x2	5430	10400	0.1	32	50	34	10	10
RNFCL1632A6	16	32	2.778	16.65	13.5	1.7x4	9860	20800	0.1	32	50	34	10	10
RNFCL1632A6S	16	32	2.778	16.65	13.5	1.7x4	9860	20800	0.1	32	50	34	10	10
RNFCL2040A2	20	40	3.175	20.75	17.3	0.7x4	6610	13600	0.1	38	58	40	10	11
RNFCL2040A2S	20	40	3.175	20.75	17.3	0.7x4	6610	13600	0.1	38	58	40	10	11
RNFCL2040A3	20	40	3.175	20.75	17.3	1.7x2	7810	16500	0.1	38	58	40	10	11
RNFCL2040A3S	20	40	3.175	20.75	17.3	1.7x2	7810	16500	0.1	38	58	40	10	11
RNFCL2040A6	20	40	3.175	20.75	17.3	1.7x4	14200	33000	0.1	38	58	40	10	11
RNFCL2040A6S	20	40	3.175	20.75	17.3	1.7x4	14200	33000	0.1	38	58	40	10	11
RNFCL2550A2	25	50	3.969	26	22	0.7x4	9870	21200	0.12	46	70	48	12	13
RNFCL2550A2S	25	50	3.969	26	22	0.7x4	9870	21200	0.12	46	70	48	12	13
RNFCL2550A3	25	50	3.969	26	22	1.7x2	11700	25800	0.12	46	70	48	12	13
RNFCL2550A3S	25	50	3.969	26	22	1.7x2	11700	25800	0.12	46	70	48	12	13
RNFCL2550A6	25	50	3.969	26	22	1.7x4	21200	51500	0.12	46	70	48	12	13
RNFCL2550A6S	25	50	3.969	26	22	1.7x4	21200	51500	0.12	46	70	48	12	13
RNFCL3264A3	32	64	4.762	33.25	28	1.7x2	17100	40500	0.15	58	92	60	12	15.5
RNFCL3264A3S	32	64	4.762	33.25	28	1.7x2	17100	40500	0.15	58	92	60	12	15.5
RNFCL3264A6	32	64	4.762	33.25	28	1.7x4	31000	81000	0.15	58	92	60	12	15.5
RNFCL3264A6S	32	64	4.762	33.25	28	1.7x4	31000	81000	0.15	58	92	60	12	15.5
RNFCL4080A3	40	80	6.35	41.75	35	1.7x2	27200	67900	0.2	73	114	75	15	19
RNFCL4080A3S	40	80	6.35	41.75	35	1.7x2	27200	67900	0.2	73	114	75	15	19
RNFCL4080A6	40	80	6.35	41.75	35	1.7x4	49300	136000	0.2	73	114	75	15	19
RNFCL4080A6S	40	80	6.35	41.75	35	1.7x4	49300	136000	0.2	73	114	75	15	19
Part number	Ln	M	W	X	Q	T	Mass (kg)	d0	di	Standard length LS	Standard length LS	Standard length LS	Standard length LS	Shaft mass/m (kg)
RNFCL1632A2	34	-	41	4.5	M6x1	5.5	0.21	13.5	11.5	500	500	500	500	1.34
RNFCL1632A2S	34	3	41	4.5	M6x1	5.5	0.21	13.5	11.5	500	500	500	500	1.34
RNFCL1632A3	66	-	41	4.5	M6x1	5.5	0.33	13.5	11.5	500	500	500	500	1.34
RNFCL1632A3S	66	3	41	4.5	M6x1	5.5	0.33	13.5	11.5	500	500	500	500	1.34
RNFCL1632A6	66	-	41	4.5	M6x1	5.5	0.33	13.5	11.5	500	500	500	500	1.34
RNFCL1632A6S	66	3	41	4.5	M6x1	5.5	0.33	13.5	11.5	500	500	500	500	1.34
RNFCL2040A2	41	-	48	5.5	M6x1	5.5	0.31	17.3	14.9	500	500	500	500	2.15
RNFCL2040A2S	41	3	48	5.5	M6x1	5.5	0.31	17.3	14.9	500	500	500	500	2.15
RNFCL2040A3	81	-	48	5.5	M6x1	5.5	0.53	17.3	14.9	500	500	500	500	2.15
RNFCL2040A3S	81	3	48	5.5	M6x1	5.5	0.53	17.3	14.9	500	500	500	500	2.15
RNFCL2040A6	81	-	48	5.5	M6x1	5.5	0.53	17.3	14.9	500	500	500	500	2.15
RNFCL2040A6S	81	3	48	5.5	M6x1	5.5	0.53	17.3	14.9	500	500	500	500	2.15
RNFCL2550A2	50	-	58	6.6	M6x1	7	0.53	22	19.6	1000	1000	1000	1000	3.37
RNFCL2550A2S	50	3	58	6.6	M6x1	7	0.53	22	19.6	1000	1000	1000	1000	3.37
RNFCL2550A3	100	-	58	6.6	M6x1	7	0.91	22	19.6	1000	1000	1000	1000	3.37
RNFCL2550A3S	100	3	58	6.6	M6x1	7	0.91	22	19.6	1000	1000	1000	1000	3.37
RNFCL2550A6	100	-	58	6.6	M6x1	7	0.91	22	19.6	1000	1000	1000	1000	3.37
RNFCL2550A6S	100	3	58	6.6	M6x1	7	0.91	22	19.6	1000	1000	1000	1000	3.37
RNFCL3264A3	126	-	74	9	M6x1	7.5	1.76	28	25.6	1000	1000	1000	1000	5.63
RNFCL3264A3S	126	3	74	9	M6x1	7.5	1.76	28	25.6	1000	1000	1000	1000	5.63
RNFCL3264A6	126	-	74	9	M6x1	7.5	1.76	28	25.6	1000	1000	1000	1000	5.63
RNFCL3264A6S	126	3	74	9	M6x1	7.5	1.76	28	25.6	1000	1000	1000	1000	5.63
RNFCL4080A3	158	-	93	11	M6x1	10	3.44	35	31.8	2000	2000	2000	2000	8.69
RNFCL4080A3S	158	3.5	93	11	M6x1	10	3.44	35	31.8	2000	2000	2000	2000	8.69
RNFCL4080A6	158	-	93	11	M6x1	10	3.44	35	31.8	2000	2000	2000	2000	8.69
RNFCL4080A6S	158	3.5	93	11	M6x1	10	3.44	35	31.8	2000	2000	2000	2000	8.69
