RNSTL2806A2.5S滚珠丝杠与螺母、RNSTL2806A5S滚珠丝杠与螺母、RNSTL3210A2.5S滚珠丝杠与螺母、RNSTL3210A5S滚珠丝杠与螺母、RNSTL3610A2.5S滚珠丝杠与螺母、RNSTL3610A5S滚珠丝杠与螺母、RNSTL4512A5S滚珠丝杠与螺母 — 搜轴承黑板报
搜轴承 -- 黑板报 -- RNSTL2806A2.5S滚珠丝杠与螺母、RNSTL2806A5S滚珠丝杠与...

RNSTL2806A2.5S滚珠丝杠与螺母、RNSTL2806A5S滚珠丝杠与螺母、RNSTL3210A2.5S滚珠丝杠与螺母、RNSTL3210A5S滚珠丝杠与螺母、RNSTL3610A2.5S滚珠丝杠与螺母、RNSTL3610A5S滚珠丝杠与螺母、RNSTL4512A5S滚珠丝杠与螺母

发布时间：2025-05-05

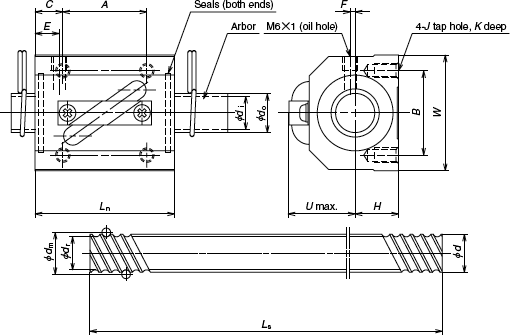

Part number d l Dw dm dr Turns x Circuits Ca C0a Axial play max. Ln W H A B
RNSTL1404A3.5S 14 4 2.778 14.5 11.5 3.5x1 5370 10800 0.1 38 34 13 22 26
RNSTL1405A2.5S 14 5 3.175 14.5 11 2.5x1 5260 9720 0.1 38 34 13 22 26
RNSTL1808A3.5S 18 8 4.762 18.5 13.6 3.5x1 13200 25800 0.15 56 48 17 35 35
RNSTL2005A2.5S 20 5 3.175 20.5 17 2.5x1 6360 14200 0.1 38 48 17 22 35
RNSTL2010A2.5S 20 10 4.762 21.25 16.2 2.5x1 10900 21800 0.15 58 48 18 35 35
RNSTL2505A2.5S 25 5 3.175 25.5 22 2.5x1 7070 18200 0.1 35 60 20 22 40
RNSTL2510A5S 25 10 6.35 26 19 2.5x2 31800 70300 0.2 94 60 23 60 40
RNSTL2806A2.5S 28 6 3.175 28.5 25 2.5x1 7430 20300 0.1 42 60 22 18 40
RNSTL2806A5S 28 6 3.175 28.5 25 2.5x2 13500 40600 0.1 67 60 22 40 40
RNSTL3210A2.5S 32 10 6.35 33.75 27 2.5x1 19700 46100 0.2 64 70 26 45 50
RNSTL3210A5S 32 10 6.35 33.75 27 2.5x2 35700 92200 0.2 94 70 26 60 50
RNSTL3610A2.5S 36 10 6.35 37 30 2.5x1 21000 51000 0.2 64 86 29 45 60
RNSTL3610A5S 36 10 6.35 37 30 2.5x2 38100 102000 0.2 96 86 29 60 60
RNSTL4512A5S 45 12 7.144 46.5 39 2.5x2 49600 147000 0.23 115 100 36 75 75
Part number C J K E F U Mass (kg) d0 di Standard length LS Standard length LS Standard length LS Screw shaft No. Shaft mass/m (kg)
RNSTL1404A3.5S 8 M4 7 7 3 20 0.2 11.5 9.5 500 500 500 　 1.02
RNSTL1405A2.5S 8 M4 7 7 3 21 0.2 11 9 500 500 500 　 1
RNSTL1808A3.5S 10.5 M6 10 8 3 26 0.31 13.6 11.6 500 500 500 　 1.6
RNSTL2005A2.5S 8 M6 9 6 2 27 0.24 17 14.6 500 500 500 　 2.17
RNSTL2010A2.5S 11.5 M6 10 10 2 28 0.35 16.2 13.8 500 500 500 　 2.18
RNSTL2505A2.5S 6.5 M8 10 6 0 27 0.31 22 19.6 1000 1000 1000 　 3.47
RNSTL2510A5S 17 M8 12 10 0 32 1.32 19 16.6 1000 1000 1000 　 3.13
RNSTL2806A2.5S 12 M8 12 8 0 32 0.65 25 22.6 1000 1000 1000 　 4.47
RNSTL2806A5S 13.5 M8 12 8 0 32 1.04 25 22.6 1000 1000 1000 　 4.47
RNSTL3210A2.5S 9.5 M8 12 10 0 38 1.12 27 24.6 1000 1000 1000 　 5.53
RNSTL3210A5S 17 M8 12 10 0 38 1.75 27 24.6 1000 1000 1000 　 5.53
RNSTL3610A2.5S 9.5 M10 16 11 0 41 1.76 30 27.6 1000 1000 1000 　 6.91
RNSTL3610A5S 18 M10 16 11 0 41 2.64 30 27.6 1000 1000 1000 　 6.91
RNSTL4512A5S 20 M12 20 13 0 46 1.22 39 35.8 2000 2000 2000 　 11.16
