O-18推力球轴承、O-19推力球轴承、O-20推力球轴承、O-21推力球轴承、O-22推力球轴承、O-23推力球轴承、O-24推力球轴承、O-26推力球轴承、O-28推力球轴承、O-30推力球轴承、O-32推力球轴承、O-36推力球轴承、O-40推力球轴承、O-44推力球轴承、O-48推力球轴承

发布时间：2025-05-04

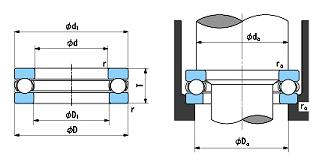

主要寸法(mm)				代號	基本動	基本靜	容許轉速(rpm)		尺寸(mm)		裝配相關尺寸(mm)			參考重量	代號
主要寸法(mm)					額定荷重	額定荷重	容許轉速(rpm)		尺寸(mm)		裝配相關尺寸(mm)			(kg)
d	D	T	r		Ca(N)	Coa(N)	脂潤滑	油潤滑	D1	d1	da	Da	ra
d	D	T	(min)				脂潤滑	油潤滑	(min)	(max)	(min)	(max)	(max)
9.525	25.4	13.494	0.8	O-3	11800	15200	5400	8100	9.925	24.606	19.1	15.9	0.8	0.036	O-3
12.7	32.544	15.875	0.8	O-4	18600	25100	4300	6500	13.097	31.75	24.6	20.6	0.8	0.077	O-4
15.875	35.719	15.875	0.8	O-5	19400	28300	4100	6200	16.272	34.925	27.8	23.8	0.8	0.086	O-5
19.05	38.894	15.875	0.8	O-6	21400	34500	4000	6000	19.447	38.1	29	26	0.8	0.095	O-6
22.225	42.069	15.875	0.8	O-7	21900	37500	3800	5800	22.622	41.275	34	30	0.8	0.1	O-7
25.4	45.244	15.875	1.6	O-8	22500	41000	3700	5500	25.797	44.45	37	33	0.8	0.11	O-8
28.575	48.419	15.875	1.6	O-9	24100	47000	3600	5400	28.972	47.625	40	37	0.8	0.128	O-9
31.75	53.181	18.256	1.6	O-10	27900	54500	3200	4800	32.147	52.388	45	40	0.8	0.164	O-10
34.925	56.356	18.256	1.6	O-11	28600	58000	3100	4600	35.322	55.562	48	43	0.8	0.186	O-11
38.1	59.531	18.256	1.6	O-12	30500	66000	3000	4500	38.497	58.738	51	47	1	0.2	O-12
41.275	62.706	18.256	1.6	O-13	26700	63000	2900	4400	41.672	61.912	54	50	1	0.21	O-13
44.45	68.262	19.05	1.6	O-14	32500	77500	2700	4100	44.847	67.469	59	54	1	0.26	O-14
47.625	71.438	19.05	1.6	O-15	37500	89000	2700	4000	48.021	70.644	62	57	1	0.285	O-15
50.8	75.406	19.05	2.4	O-16	38000	94000	2600	3900	51.594	74.613	66	61	1	0.3	O-16
53.975	81.756	22.225	2.4	O-17	49500	118000	2300	3500	54.769	80.962	71	65	1.6	0.405	O-17
57.15	84.931	22.225	2.4	O-18	50500	125000	2300	3400	57.944	84.138	74	68	1.6	0.45	O-18
60.325	91.281	25.4	2.4	O-19	58000	145000	2000	3100	61.119	90.488	79	73	1.6	0.59	O-19
63.5	94.456	25.4	2.4	O-20	59500	152000	2000	3000	64.294	93.662	82	76	1.6	0.61	O-20
66.675	97.631	25.4	2.4	O-21	60500	160000	2000	3000	67.469	96.838	85	79	1.6	0.66	O-21
69.85	102.394	25.4	2.4	O-22	71500	179000	1900	2900	70.644	101.6	89	83	1.6	0.7	O-22
73.025	105.569	25.4	2.4	O-23	75500	199000	1900	2800	73.819	104.775	93	86	1.6	0.73	O-23
76.2	111.125	28.575	3.2	O-24	77000	209000	1700	2600	77.788	109.538	97	90	2	0.9	O-24
82.55	122.238	31.75	3.2	O-26	97500	252000	1600	2400	84.138	120.65	106	98	2	1.3	O-26
88.9	128.588	31.75	3.2	O-28	99000	266000	1500	2300	90.488	127	113	105	2	1.32	O-28
95.25	134.938	31.75	3.2	O-30	98500	289000	1500	2200	96.838	133.35	119	111	2	1.36	O-30
101.6	147.638	34.925	3.2	O-32	113000	310000	1300	2000	103.188	146.05	129	120	2	1.88	O-32
114.3	166.688	44.45	4.8	O-36	157000	435000	1100	1700	115.888	165.1	146	135	3	3.18	O-36
127	185.738	50.8	4.8	O-40	193000	545000	1000	1500	128.588	184.15	162	150	3	4.54	O-40
139.7	204.788	55.562	4.8	O-44	248000	715000	910	1300	141.288	203.2	179	166	3	5.9	O-44
152.4	220.662	60.325	4.8	O-48	269000	805000	830	1200	153.988	219.075	193	180	3	7.25	O-48
