搜轴承 -- 黑板报 -- TLA1216UU滚针轴承、TLA1416UU滚针轴承、TLA1516UU滚针轴�...

TLA1216UU滚针轴承、TLA1416UU滚针轴承、TLA1516UU滚针轴承、TLA1616UU滚针轴承、TLA1816UU滚针轴承、TLA2016UU滚针轴承、TLA2020UU滚针轴承、TLA2216UU滚针轴承、TLA2220UU滚针轴承、TLA2516UU滚针轴承

发布时间：2025-05-04

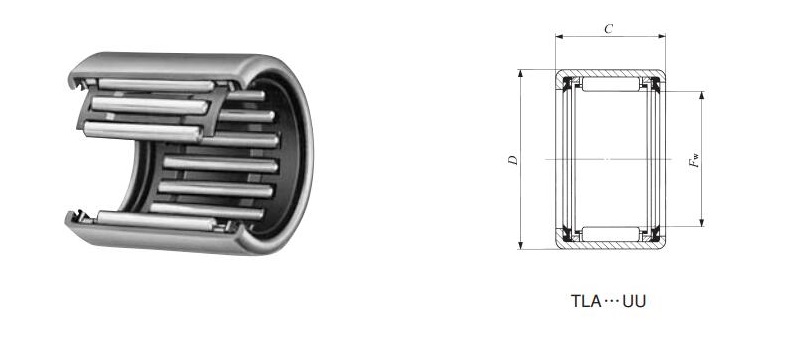

Shaft dia.	Identification number	Mass	Boundary dimensions			Standard mounting dimensions mm				Basic dynamic	Basicstatic	Allowable
						h6		N7		load rating	loadrating	rotational
		(Ref. )	mm			Shaft dia.		Housing bore dia.		C	C0	speed(1）
mm	BEARINGPOWER	g	Fw	D	C	Max.	Min.	Max.	Min.	N	N	rpm
12	TLA 1216 UU	11.7	12	18	16	12	11.989	17.995	17.977	6 420	7 490	14 000
14	TLA 1416 UU	13.3	14	20	16	14	13.989	19.993	19.972	7 080	8 840	12 000
15	TLA 1516 UU	14	15	21	16	15	14.989	20.993	20.972	7 380	9 520	11 000
16	TLA 1616 UU	14.8	16	22	16	16	15.989	21.993	21.972	7 670	10 200	11 000
18	TLA 1816 UU	16.3	18	24	16	18	17.989	23.993	23.972	8 230	11 500	9 000
20	TLA 2016 UU	17.8	20	26	16	20	19.987	25.993	25.972	8 740	12 900	9 000
20	TLA 2020 UU	22.5	20	26	20	20	19.987	25.993	25.972	11 100	17 500	9 000
22	TLA 2216 UU	19.4	22	28	16	22	21.987	27.993	27.972	9 230	14 300	8 000
22	TLA 2220 UU	25	22	28	20	22	21.987	27.993	27.972	11 700	19 300	8 000
25	TLA 2516 UU	26	25	32	16	25	24.987	31.992	31.967	9 440	13 900	7 000
25	TLA 2520 UU	33	25	32	20	25	24.987	31.992	31.967	12 800	20 500	7 000
28	TLA 2820 UU	36.5	28	35	20	28	27.987	34.992	34.967	13 800	23 500	6 000
30	TLA 3016 UU	30.5	30	37	16	30	29.987	36.992	36.967	10 400	16 600	5 500
30	TLA 3020 UU	39	30	37	20	30	29.987	36.992	36.967	14 100	24 500	5 500
35	TLA 3516 UU	35	35	42	16	35	34.984	41.992	41.967	11 600	20 000	5 000
35	TLA 3520 UU	45	35	42	20	35	34.984	41.992	41.967	15 700	29 600	5 000
40	TLA 4016 UU	39.5	40	47	16	40	39.984	46.992	46.967	12 400	22 800	4 500
40	TLA 4020 UU	50.5	40	47	20	40	39.984	46.992	46.967	16 700	33 700	4 500
45	TLA 4520 UU	56	45	52	20	45	44.984	51.991	51.961	17 800
