DACF1035B第二代轮毂单元、DACF1029第二代轮毂单元、DACF1082C第二代轮毂单元、DACF1076D第二代轮毂单元、DACF1112A第二代轮毂单元、DACF1050A第二代轮毂单元、DACF1050B第二代轮毂单元、DACF1072B-1第二代轮毂单元、DACF1083CR第二代轮毂单元、DACF1041C第二代轮毂单元

发布时间：2025-06-20

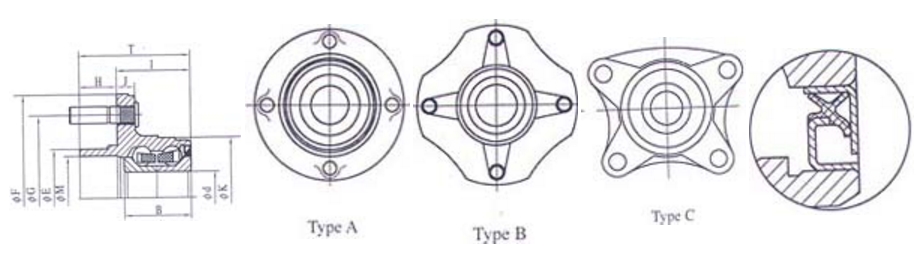

Bearing No.	Dimension(mm)											Bolt Size	Outer Ring Flange
	d	F	B	T	E	M	G	K	H	I	J		Bolt Hole	Q`ty	Shape of Flange
DACF1035B DACF1029 DACF1082C	25 25 27	133 133 148	43 43 55	73.4 73.4 73	60 60 66	54.25 54.3 52	108 100 114.3	71 71 64	19.4 19.4 15.5	54 54 57.5	12.25 11 9	M12*1.5 - -	14.22 M12*1.5 12.5	5 4 4	A A C
DACF1076D DACF1112A DACF1050A DACF1050B	28 28 28 28	- 139 140 140.8	42 38 48 50.5	- 64.5 70.5 71	- 67 67 56	61 58 59 47.8	97 114.3 114.3 100	66.2 70 63 66.6	- 14 14 18.9	51.8 50.5 50.5 52.1	7.5 9 9 4.5	- - M12*1.5 M12*1.5	10.5 14 14 14	4 4 4 4	C A A A
DACF1072B-1 DACF1083CR DACF1041C	30 30 30	- 117 122	42 37 47	- 61.3 59.5	- 58 54	63 52 48	99 98 100	68.2 71.8 68	- 17 13.5	51.8 44.3 56	7.5 10 8	- M12*1.5 M12*1.5	10.5 - 12.56	4 4 4	C A A
DACF1049A DACF1038A DACF1102A	30 30 30	126 131 136	59 43 41	79 71.3 66	56 65 56	50.5 59 51	100 108 100	65.5 76 68.5	14.5 19 11.5	62.5 21 54.5	10 13.5 8	M12*1.5 - -	14 M12*1.5 12.1	5 4 4	A A A
DACF1015 DACF1086 DACF1087A	30 30 30	136 140 125	40 50 50	66 70.5 70.5	56 67 56	51 59 50	100 114.3 100	68.5 68.9 68.9	11.5 14 14	54.5 56.5 56.5	8 9 10	M12*1.5 M12*1.5 M12*1.5	12.1 14 14	4 4 4	A A A
DACF1065A DACF1022 DACF1091A	30 30 30	152 - -	41 42 50	67.5 - -	64 - 66	58 63 58.3	114.3 99.90 99	67 72 68	11.5 - 10	55.5 58.5 44	9 7.5 10	M12*1.5 - -	12.1 10.5 M12*1.5	4 4 4	B C C
DACF1097D DACF1005C DACF1034C	30 31 33	- 120 140	42 40 47	- 61 71.2	- 57 67	63 50.5 59	100 114.3 114.3	73.6 73.8 77	- 19 14	51.8 42 54.7	7.5 12 9	- - M12*1.5	10.5 M12*1.5 14	4 4 5	C A A
DACF1081C DACF1036A DACF1031B	34 34 34.5	139 139.5 139	42 42 52	64.5 70 65.5	67 64 63.26	58 58 58	114.3 107 95	74 75 86	14 15 13.5	50.5 55 52	9 9 10	M12*1.5 M12*1.5 M12*1.5	14 12.1 13.1	4 4 5	A A A
DACF1023D DACF1082L DACF1063A	35 35 36	137 137 140	45 45 50	69.5 74 71	65 65 67	53.3 57 59	108 110 114.3	81 81 79	20.5 25 14	49 49 57	12 12 11	M12*1.5 - M12*1.5	13.1 M12*1.5 14	5 5 5	A A A
DACF1033K DACF1033K-1 DACF1033K-2 DACF1074CR DACF1092A	37 37 37 38 40	139 139 139 146.5 -	45 45 45 52 53	64 64 64 77 43	72.5 72.5 72.5 70 84	66 66 66 64 -	120 120 120 114.3 106	84 80 80 76.8 84	19 19 19 15 16.4	45 45 45 62 26.5	11 11 11 9 10	- - - M12*1.5 -	M12*1.5 M12*1.5 M12*1.5 12.1 M12*1.5	5 5 5 5 5	A A A A C
