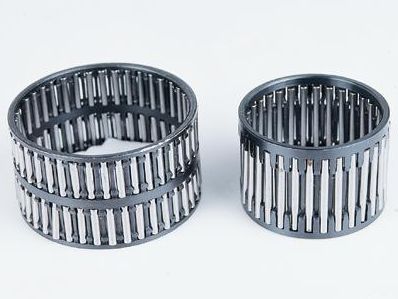

K20X24X17滚针轴承、K20X24X22滚针轴承、K20X25X14滚针轴承、K20X25X16滚针轴承、K20X25X20滚针轴承、K20X25X23滚针轴承、K20X25X25滚针轴承、KK20X25X31.6滚针轴承、KK20X25X40滚针轴承、K20X26X11滚针轴承、K20X26X12滚针轴承、K20X26X14滚针轴承、K20X26X17滚针轴承、K20X26X20滚针轴承、K20X26X24滚针轴承、K20X26X27滚针轴承、K20X28X14滚针轴承、K20X28X20滚针轴承

发布时间：2025-05-04

轴径	轴承型号	重 量 g	外  形  尺  寸mm			基本额定动负载 CN	基本额定静负载 C0N	允许转速 rpm
	新代号		Fw	Ew	Bc
5	K3x6x7TN	0.39	3	6	7	1 480	990	140 000
	K4x7x7TN	0.47	4	7	7	1 800	1 300	100 000
	K5x8x7TN	0.53	5	8	7	2 070	1 600	85 000
	K5x8x8TN	0.66	5	8	8	2 420	1 950	85 000
	K5x8x10		5	8	10
6	K6x9x7	0.63	6	9	7	2 310	1 900	75 000
	K6x9x8	0.75	6	9	8	2 700	2 320	75 000
	K6x9x10	1.45	6	9	10	3 010	2 660	75 000
	K6x9x13		6	9	13
	K6x10x13	2.7	6	10	13	4 410	3 720	75 000
7	K7x10x8	0.86	7	10	8	2 960	2 690	65 000
	K7x10x10	1.69	7	10	10	3 340	3 130	65 000
8	K8x11x8	0.96	8	11	8	3 190	3 060	60 000
	K8x11x10	1.9	8	11	10	3 630	3 600	60 000
	K8x11x13	2.5	8	11	13	4 500	4 750	60 000
	K8x12x8	2.1	8	12	8	3 630	3 040	60 000
	K8x12x10	3	8	12	10
	K8x12x11	3	8	12	11	4 630	4 170	60 000
9	K9x12x10	2.1	9	12	10	3 900	4 070	55 000
	K9x12x13	2.8	9	12	13	4 840	5 370	55 000
10	K10x13x8	1.9	10	13	8	3 370	3 470	50 000
	K10x13x10	2.3	10	13	10	4 160	4 550	50 000
	K10x13x13	3	10	13	13	5 160	6 000	50 000
	K10x13x16		10	13	16
	K10x14x10	3.2	10	14	10	4 900	4 680	50 000
	K10x14x12	3.8	10	14	12	5 940	6 000	50 000
	K10x14x13	4.2	10	14	13	6 100	6 200	50 000
	K10x14x15	4.8	10	14	15	7 080	7 520	50 000
	K10x14x16		10	14	16
11	K11x14x10	2.5	11	14	10	4 400	5 020	45 000
11	K11x14x12		11	14	12
12	K12x15x8	2.2	12	15	8	3 750	4 200	40 000
	K12x15x10	2.7	12	15	10	4 620	5 490	40 000
	K12x15x12	3.2	12	15	12	5 590	7 020	40 000
	K12x15x13	3.2	12	15	13	5 730	7 250	40 000
	K12x15x14	3.6	12	15	14	6 200	8 010	40 000
	K12x15x15	3.8	12	15	15
	K12x15x17	4.0	12	15	17
	K12x16x10	3.8	12	16	10	5 650	5 890	40 000
	K12x16x13	5.2	12	16	13	7 020	7 800	40 000
	K12x16x16		12	16	16
	K12x16x18	7	12	16	18	9 790	11 900	40 000
	K12x16x24		12	16	24
	K12x17x10	5.1	12	17	10	6 170	5 740	40 000
	K12x17x12		12	17	12
	K12x18x12	7.8	12	18	12	9 030	8 460	40 000
	K12x18x20	13.2	12	18	20	13 700	14 400	40 000
13	K13x17x10	4.3	13	17	10	5 990	6 500	40 000
	K13x18x10		13	18	10
	K13x18x15	8.2	13	18	15	9 660	10 400	40 000
	K13x18x16	8.7	13	18	16	10 300	11 400	40 000
	K13x18x18		13	18	18
14	K14x18x8	3.7	14	18	8	5 110	5 410	35 000
	K14x18x10	4.6	14	18	10	6 320	7 110	35 000
	K14x18x11	5.2	14	18	11	6 520	7 410	35 000
	K14x18x13	6	14	18	13	7 860	9 410	35 000
	K14x18x15		14	18	15
	K14x18x16	7.3	14	18	16	9 750	12 400	35 000
	K14x18x17		14	18	17
	K14x19x10	5.9	14	19	10	7 130	7 180	35 000
	K14x19x16	9.4	14	19	16	11 100	12 600	35 000
	K14x19x18	10.5	14	19	18	12 400	14 700	35 000
	K14x20x10		14	20	10
	K14x20x12	8.7	14	20	12	9 790	9 680	35 000
	K14x20x17	12.4	14	20	17	13 300	14 400	35 000
15	K15x19x9	4.4	15	19	9	6 120	6 960	35 000
	K15x19x10	4.9	15	19	10	6 630	7 720	35 000
	K15x19x11	5.5	15	19	11	6 850	8 040	35 000
	K15x19x13	6.4	15	19	13	8 250	10 200	35 000
	K15x19x17	8.2	15	19	17	10 900	14 600	35 000
	K15x19x18	8.7	15	19	18	11 500	15 600	35 000
	K15x19x20		15	19	20
	K15x20x10	6.3	15	20	10	7 580	7 920	35 000
	K15x20x20		15	20	20
	K15x21x15	11.9	15	21	15	12 600	13 500	35 000
16	K16x20x10	5.2	16	20	10	6 930	8 330	30 000
	K16x20x12		16	20	12
	K16x20x13	6.8	16	20	13	8 620	11 000	30 000
	K16x20x16	8.3	16	20	16	10 700	14 600	30 000
16	K16x20x17	8.7	16	20	17	11 400	15 700	30 000
	K16x21x18	12.0	16	21	18	14 000	17 700	30 000
	K16x21x20	13.6	16	21	20	14 700	18 900	30 000
	K16x21x25	16.6	16	21	25	18 300	25 100	30 000
	K16x22x12	9.7	16	22	12	10 500	10 900	30 000
	K16x22x14	11.5	16	22	14	11 600	12 500	30 000
	K16x22x16		16	22	16
	K16x22x17	13.8	16	22	17	14 200	16 100	30 000
	K16x22x20	16.5	16	22	20	15 900	18 600	30 000
	K16x23x14		16	23	14
	K16x24x20	23.5	16	24	20	18 500	19 000	30 000
17	K17x21x10	5.5	17	21	10	7 220	8 950	30 000
	K17x21x13	7.2	17	21	13	8 980	11 800	30 000
	K17x21x15	8.2	17	21	15	10 400	14 400	30 000
	K17x21x17	9.3	17	21	17	11 800	16 900	30 000
	K17x22x20	14.0	17	22	20	15 500	20 500	30 000
	K17x23x11	9.6	17	23	11	10 100	10 500	30 000
	K17x23x15	13.1	17	23	15	13 300	15 100	30 000
	K17x23x17		17	23	17
	K17x24x18	18.6	17	24	18	16 500	18 000	30 000
17.5	K17.5x22x16		17.5	22	16
18	K18x22x8	4.7	18	22	8	6 060	7 720	30 000
	K18x22x10	5.8	18	22	10	7 500	9 560	30 000
	K18x22x13	7.6	18	22	13	9 330	12 700	30 000
	K18x22x14		18	22	14
	K18x22x16	9.2	18	22	16	11 600	16 700	30 000
	K18x22x17		18	22	17
	K18x24x12	11.0	18	24	12	11 800	13 100	30 000
	K18x24x13		18	24	13
	K18x24x16	14.8	18	24	16	15 100	17 900	30 000
	K18x24x17	15.7	18	24	17	16 000	19 400	30 000
	K18x24x20	18.7	18	24	20	17 900	22 400	30 000
	K18x25x17	18.8	18	25	17	16 700	18 600	30 000
	K18x25x19	21.0	18	25	19	18 700	21 400	30 000
	K18x25x22	24.5	18	25	22	20 600	24 200	30 000
	K18x26x14	18.1	18	26	14	14 600	14 400	30 000
	K18x26x20	26.0	18	26	20	20 000	21 600	30 000
19	K19x23x13		19	23	13
	K19x23x17		19	23	17
20	K20x24x10	6.3	20	24	10	7 710	10 200	25 000
	K20x24x13	8.3	20	24	13	9 590	13 500	25 000
	K20x24x17	10.6	20	24	17	12 600	19 300	25 000
	K20x24x22	14.6	20	24	22	13 700	21 300	25 000
	K20x25x14		20	25	14
	K20x25x16		20	25	16
	K20x25x20		20	25	20
	K20x25x23		20	25	23
	K20x25x25	19.7	20	25	25	19 900	29 800	25 000
	KK20x25x31.6	26.5	20	25	31.6	21 700	33 200	25 000
20	KK20x25x40	32.5	20	25	40	27 500	44 900	25 000
	K20x26x11	11.1	20	26	11	11 200	12 500	25 000
	K20x26x12	12.0	20	26	12	12 400	14 300	25 000
	K20x26x14	14.2	20	26	14	13 700	16 400	25 000
	K20x26x17	17.0	20	26	17	16 800	21 200	25 000
	K20x26x20	20.5	20	26	20	18 700	24 400	25 000
	K20x26x24	24	20	26	24	22 500	30 900	25 000
	K20x26x27	26.5	20	26	27	26 000	37 300	25 000
	K20x28x14	20.0	20	28	14	15 700	16 100	25 000
	K20x28x20	29.0	20	28	20	21 500	24 200	25 000
	K20x30x20		20	30	20
	K20x32x25	49.5	20	32	25	30 800	30 500	25 000
	K20x32x32.3		20	32	32.3
21	K21x26x10	8.5	21	26	10	9 090	11 000	25 000
	K21x26x11	9.6	21	26	11	9 390	11 500	25 000
22	K22x26x10	6.9	22	26	10	8 220	11 500	25 000
	K22x26x12		22	26	12
	K22x26x13	9.1	22	26	13	10 200	15 200	25 000
	K22x26x17	11.6	22	26	17	13 500	21 600	25 000
	K22x26x25	17.7	22	26	25	17 100	29 400	25 000
	K22x27x20	17.9	22	27	20	17 400	25 700	25 000
	K22x27x26	22.5	22	27	26	22 500	35 800	25 000
	K22x28x17	18.4	22	28	17	17 500	23 000	25 000
	K22x28x20		22	28	20
	K22x28x23		22	28	23
	K22x29x12	16.4	22	29	12	12 900	14 000	25 000
	K22x29x16	21.0	22	29	16	17 600	20 900	25 000
	K22x29x17	22.5	22	29	17	18 700	22 600	25 000
	K22x29x18	23.5	22	29	18	19 800	24 400	25 000
	K22x29x20	26.5	22	29	20	20 900	26 100	25 000
	K22x30x15	23.5	22	30	15	17 900	19 700	25 000
	K22x32x30	52.5	22	32	30	36 400	42 700	25 000
	K22x32x32	56.0	22	32	32	38 800	46 300	25 000
23	K23x28x24	22.0	23	28	24	21 600	34 500	20 000
	K23x29x13	9.9	23	29	13	13 800	17 200	20 000
	K23x30x15	21.0	23	30	15	17 300	20 800	20 000
	K23x30x16	22.0	23	30	16	18 600	22 600	20 000
24	K24x28x10		24	28	10
	K24x28x13	9.9	24	28	13	10 800	16 800	20 000
	K24x28x16	12.0	24	28	16	13 400	22 200	20 000
	K24x28x17		24	28	17
	KK24x28x34	27.0	24	28	34	21 600	40 700	20 000
	K24x29x13	12.8	24	29	13	12 700	17 600	20 000
	K24x30x20	23.5	24	30	20	20 300	28 500	20 000
	K24x36x23		24	36	23
	K24x38x23		24	38	23
25	K25x29x10	7.9	25	29	10	8 940	13 300	20 000
	K25x29x13	10.3	25	29	13	11 100	17 600	20 000
	K25x29x17		25	29	17
25	K25x30x13	13.3	25	30	13	13 100	18 600	20 000
	K25x30x17	17.1	25	30	17	17 300	26 600	20 000
	K25x30x20	20.0	25	30	20	18 600	29 100	20 000
	K25x30x25		25	30	25
	K25x31x13	16.2	25	31	13	14 300	18 400	20 000
	K25x31x16	19.6	25	31	16	17 800	24 400	20 000
	K25x31x17	20.5	25	31	17	19 000	26 500	20 000
	K25x31x20	25.0	25	31	20	21 200	30 500	20 000
	K25x31x24		25	31	24
	K25x32x16	23.5	25	32	16	19 400	24 500	20 000
	K25x32x20		25	32	20
	K25x32x24	35.0	25	32	24	27 700	38 700	20 000
	K25x32x27		25	32	27
	K25x33x19		25	33	19
	K25x33x20		25	33	20
	K25x33x24		25	33	24
	K25x33x25		25	33	25
	K25x33x32		25	33	32
	K25x35x15	33.0	25	35	15	22 600	23 800	20 000
	K25x35x25	48.0	25	35	25	32 500	37 900	20 000
	K25x35x27		25	35	27
	K25x35x30	58.0	25	35	30	39 100	48 000	20 000
	K25x37x24		25	37	24
	K25x38x24		25	38	24
	K25x38x25		25	38	25
26	K26x30x10		26	30	10
	K26x30x13	10.7	26	30	13	11 400	18 400	19 000
	K26x30x17		26	30	17
	K26x33x34		26	33	34
	K26x38x23		26	38	23
	K26x38x24		26	38	24
	K26x38x25		26	38	25
	K26x38x32	79.5	26	38	32	47 200	55 300	19 000
	K26x38x37		26	38	37
27	K27x32x24		27	32	24
	K37x32x27		27	32	27
	K27x40x31		27	40	31
	K27x40x36		27	40	36
	K27x40x43		27	40	43
27.5	K27.5x34x25		27.5	34	25
28	K28x33x13	14.8	28	33	13	11 400	18 400	18 000
	K28x33x17	18.9	28	33	17	18 300	29 500	18 000
	K28x33x19		28	33	19
	K28x33x22		28	33	22
	K28x33x27	29.0	28	33	27	26 300	47 300	18 000
	K28x34x17	23.0	28	34	17	20 300	29 900	18 000
	K28x35x16	26.0	28	35	16	20 100	26 500	18 000
	K28x35x28	44.5	28	35	28	33 200	50 600	18 000
	K28x36x20	38.5	28	36	20	26 500	34 700	18 000
28	K28x36x30		28	36	30
	K28x38x24		28	38	24
	K28x40x27		28	40	27
	K28x41x38	110.0	28	41	38	58 700	71 100	18 000
29	K29x35x23		29	35	23
	K29x43x43		29	43	43
30	K30x35x13	15.6	30	35	13	14 100	21 700	17 000
	K30x35x16	18.9	30	35	16	17 500	28 700	17 000
	K30x35x17	20.0	3, 0	35	17	18 700	31 100	17 000
	K30x35x23		30	35	23
	K30x35x24	28.5	30	35	24	24 900	45 100	17 000
	K30x35x27	31.5	30	35	27	27 900	52 100	17 000
	K30x36x13	19.1	30	36	13	15 800	22 100	17 000
	K30x36x20	29.5	30	36	20	23 300	36 500	17 000
	K30x36x30	41.5	30	36	30	33 200	57 500	17 000
	K30x37x15	26.0	30	37	15	19 500	26 000	17 000
	K30x37x16	27.5	30	37	16	20 800	28 400	17 000
	K30x37x20	35.0	30	37	20	14 700	35 400	17 000
	K30x37x23	39.5	30	37	23	28 500	42 500	17 000
	K30x37x30		30	37	30
	K30x38x18	36.5	30	38	18	26 200	34 800	17 000
	K30x38x24	48.5	30	38	24	33 200	47 200	17 000
	K30x40x25		30	40	25
	K30x40x27		30	40	27
	K30x40x30		30	40	30
	K30x40x32		30	40	32
	K30x42x15		30	42	15
	K30x42x30		30	42	30
	K30x42x32	93.0	30	42	32	54 000	68 100	17 000
	KK30x42x37	117.0	30	42	37	55 900	71 300	17 000
	K30x45x30		30	45	30
	K30x46x28		30	46	28
	K30x54x32		30	54	32
	K30x56x32		30	56	32
31	K31x37x28		31	37	28
32	K32x37x13	16.7	32	37	13	14 900	23 700	16 000
	K32x37x17	21.5	32	37	17	19 600	33 900	16 000
	K32x37x23	28.5	32	37	23	24 400	44 800	16 000
	K32x37x27		32	37	27
	K32x38x13	20.5	32	38	13	16 800	24 400	16 000
	K32x38x20	31.5	32	38	20	24 800	40 300	16 000
	K32x38x26		32	38	26
	K32x39x16	29.0	32	39	16	21 600	32 200	16 000
	K32x39x20	37.0	32	39	20	25 600	37 700	16 000
	K32x40x25		32	40	25
	K32x42x25		32	42	25
	K32x45x19	63.5	32	45	19	33 700	35 900	16 000
	K32x45x25	84.5	32	45	25	45 600	53 000	16 000
	K32x45x32	109.0	32	45	32	58 500	73 000	16 000
32	K32x45x50	162.0	32	45	50	81 500	111 000	16 000
	K32x46x32		32	46	32
32.5	K32.5x38.5x24.5		32.5	38.5	24.5
35	K35x40x10		35	40	10
	K35x40x12		35	40	12
	K35x40x13	18.1	35	40	13	15 500	25 800	14 000
	K35x40x17	23.0	35	40	17	20 500	36 900	14 000
	K35x40x23		35	40	23
	K35x40x26	34.5	35	40	26	28 700	56 800	14 000
	K35x40x27		35	40	27
	K35x40x30		35	40	30
	K35x40x31		35	40	31
	K35x40x33		35	40	33
	K35x40x34		35	40	34
	K35x41x13	22.5	35	41	13	17 700	26 800	14 000
	K35x41x25		35	41	25
	K35x42x16	32.0	35	42	16	23 100	33 900	14 000
	K35x42x18	35.5	35	42	18	26 000	39 500	14 000
	K35x42x20	40.5	35	42	20	27 400	42 300	14 000
	K35x42x25		35	42	25
	K35x42x30	59.0	35	42	30	40 600	70 300	14 000
	K35x43x25		35	43	25
	K35x43x34		35	43	34
	K35x44x35.6		35	44	35.6
	K35x45x20		35	45	20
	K35x45x25	68.5	35	45	25	42 100	57 900	14 000
	K35x45x30		35	45	30
	K35x51x25		35	51	25
	K35x51x45		35	51	45
36	K36x42x16	27.5	36	42	16	21 900	35 700	14 000
	K36x48x22		36	48	22
	K36x48x32		36	48	32
37	K37x42x12.7		37	42	12.7
	K37x42x17		37	42	17
	K37x42x28.5		37	42	28.5
	K37x42x31		37	42	31
38	K38x41x8		38	41	8
	K38x43x17		38	43	17
	K38x43x25		38	43	25
	K38x43x27		38	43	27
	K38x43x30		38	43	30
	K38x43x31		38	43	31
	K38x44x17	30.5	38	44	17	23 800	40 400	13 000
	K38x44x25		38	44	25
	K38x44x28		38	44	28
	K38x44x33		38	44	33
	K38x46x20	50.0	38	46	20	30 500	45 400	13 000
	K38x46x28		38	46	28
	K38x46x30		38	46	30
38	K38x46x32	80.0	38	46	32	45 400	75 700	13 000
	K38x46x40		38	46	40
	K38x50x30		38	50	30
	K38x50x32		38	50	32
	K38x50x40		38	50	40
	K38x52x30		38	52	30
	K38x54x32		38	54	32
39	K39x44x21		39	44	21
	K39x55x20		39	55	20
39.5	K39.5x47x32		39.5	47	32
40	K40x45x12		40	45	12
	K40x45x13	20.5	40	45	13	16 800	29 800	12 000
	K40x45x17	26.5	40	45	17	22 200	42 700	12 000
	K40x45x23		40	45	23
	K40x45x27	41.0	40	45	27	32 400	69 200	12 000
	K40x45x30		40	45	30
	K40x45x31		40	45	31
	K40x45x32.5		40	45	32.5
	K40x46x17		40	46	17
	K40x46x34		40	46	34
	K40x47x20		40	47	20
	K40x48x17	44.0	40	48	17	28 100	41 600	12 000
	K40x48x20	52.5	40	48	20	31 400	48 000	12 000
	K40x48x25	64.5	40	48	25	39 300	64 000	12 000
	K40x48x34	87.5	40	48	34	51 100	89 600	12 000
	K40x50x15	48.5	40	50	15	28 200	35 900	12 000
	K40x50x17	56.5	40	50	17	30 200	39 200	12 000
	K40x50x20	61.0	40	50	20	35 700	48 600	12 000
	K40x50x40		40	50	40
	K40x52x38	158.0	40	52	38	65 000	93 000	12 000
	K40x54x32	144.0	40	54	32	66 800	87 200	12 000
	K40x54x40		40	54	40
	K40x54x50	215.0	40	54	50	93 600	134 000	12 000
	K40x54x63	270.0	40	54	63	115 000	175 000	12 000
	K40x55x20		40	55	20
41	K41x48x35	78.5	41	48	35	47 800	90 800	12 000
42	K42x47x17	27.5	42	47	17	22 500	44 200	12 000
	K42x47x27		42	47	27
	K42x48x15	30.0	42	48	15	22 400	38 600	12 000
	K42x48x16	32.0	42	48	16	24 000	42 100	12 000
	K42x48x35		42	48	35
	K42x49x35		42	49	35
	K42x50x20	55.0	42	50	20	32 400	50 600	12 000
	K42x50x30	80.5	42	50	30	48 200	84 400	12 000
	K42x52x35		42	52	35
	K42x54x42		42	54	42
43	K43x50x18		43	50	18
	K43x50x43		43	50	43
	K43x51x24		43	51	24
43	K43x53x25		43	53	25
	K43x63x30		43	63	30
45	K45x50x17	29.5	45	50	17	23 300	47 100	11 000
	K45x50x27	46.0	45	50	27	34 800	79 000	11 000
	K45x50x29		45	50	29
	K45x50x31		45	50	31
	K45x52x20		45	52	20
	K45x53x20	58.0	45	53	20	33 200	53 300	11 000
	K45x53x21		45	53	21
	K45x53x25	71.5	45	53	25	41 500	71 100	11 000
	K45x53x30	86.0	45	53	30	47 800	85 300	11 000
	K45x53x35	101.0	45	53	35	53 900	99 500	11 000
	K45x55x27	90.5	45	55	27	50 300	78 200	11 000
	K45x57x25		45	57	25
	K45x57x45		45	57	45
	K45x65x43		45	65	43
46	K46x52x31		46	52	31
46.5	K46.5x52.5x33		46.5	52.5	33
47	K47x55x43		47	55	43
48	K48x53x18		48	53	18
	K48x53x20	37.0	48	53	20	26 800	57 600	10 000
	K48x54x20	46.0	48	54	20	30 600	60 400	10 000
	K48x54x25		48	54	25
	K48x54x27		48	54	27
	K48x54x29		48	54	29
	K48x54x30		48	54	30
	K48x54x40		48	54	40
	K48x54x43.5		48	54	43.5
49	K49x55x30		49	55	30
	K49x55x32		49	55	32
50	K50x55x17		50	55	17
	K50x55x20	38.5	50	55	20	27 100	59 300	10 000
	K50x55x27	50.5	50	55	27	35 600	84 100	10 000
	K50x55x30		50	55	30
	K50x56x30		50	56	30
	K50x58x17		50	58	17
	K50x58x20	65.0	50	58	20	35 900	61 100	10 000
	K50x58x25	80.0	50	58	25	44 900	81 500	10 000
	K50x58x30	96.5	50	58	30	51 700	97 800	10 000
	K50x58x35	113.0	50	58	35	58 300	114 000	10 000
	K50x58x40		50	58	40
	K50x70x43		50	70	43
51	K51x61x25		51	61	25
52	K52x58x17	41.0	52	58	17	28 300	56 000	9 500
	K52x58x23		52	58	23
	K52x58x30		52	58	30
	K52x58x32		52	58	32
	K52x60x20		52	60	20
	K52x60x24	80.0	52	60	24	44 000	80 800	9 500
52	K52x60x25		52	60	25
53	K53x59x28		53	59	28
54	K54x62x20		54	62	20
	K54x62x21		54	62	21
55	K55x60x20	42.5	55	60	20	28 600	66 000	9 000
	K55x60x27	55.5	55	60	27	37 600	93 900	9 000
	K55x60x30		55	60	30
	K55x61x20	52.0	55	61	20	32 600	68 500	9 000
	K55x61x34		55	61	34
	K55x61x44		55	61	44
	K55x62x40		55	62	40
	K55x63x15	52.5	55	63	15	29 400	48 700	9 000
	K55x63x20	71.0	55	63	20	37 400	66 400	9 000
	K55x63x24		55	63	24
	K55x63x25	87.0	55	63	25	46 800	88 600	9 000
	K55x65x43		55	65	43
56	K56x61x30		56	61	30
	K56x61x34		56	61	34
	K56x62x21		56	62	21
	K56x62x42		56	62	42
57	K57x62x21.4		57	62	21.4
	K57x62x22		57	62	22
	K57x62x24		57	62	24
	K57x63x23		57	63	23
	K57x63x24		57	63	24
	K57x63x30		57	63	30
	K57x63x43		57	63	43
	K57x64x34		57	64	34
58	K58x63x20	44.5	58	63	20	29 300	69 400	8 500
	K58x63x30		58	63	30
	K58x63x34		58	63	34
	K58x64x51		58	64	51
	K58x64x20	54.5	58	64	20	33 600	72 500	8 500
	K58x65x30		58	65	30
	K58x65x35		58	65	35
	K58x65x36		58	65	36
	K58x68x25		58	68	25
60	K60x65x20	45.5	60	65	20	29 700	71 100	8 500
	K60x65x30		60	65	30
	K60x65x35		60	65	35
	K60x65x38		60	65	38
	K60x66x21		60	66	21
	K60x66x23		60	66	23
	K60x66x42		60	66	42
	K60x66x46		60	66	46
	K60x68x20	76.5	60	68	20	38 900	71 700	8 500
	K60x68x25	94.0	60	68	25	48 600	95 600	8 500
	K60x68x27	101.0	60	68	27	52 400	105 000	8 500
	K60x68x30		60	68	30
60	K60x68x40		60	68	40
	K60x72x36	205.0	60	72	36	86 700	152 000	8 500
	K60x75x35		60	75	35
	K60x75x40		60	75	40
	K60x76x27.2		60	75	27.2
	K60x76x55		60	76	55
	K60x84x36		60	84	36
62	K62x70x20		62	70	20
	K62x70x31		62	70	31
	K62x70x34		62	70	34
	K62x70x36		62	70	36
	K62x70x38		62	70	38
	K62x70x40		62	70	40
	K62x70x45		62	70	45
63	K63x70x20		63	70	20
	K63x70x40		63	70	40
	K63x71x20	79.5	63	71	20	39 500	74 400	8 000
	K63x71x41		63	71	41
	K63x71x44		63	71	44
	K63x71x45		63	71	45
64	K64x74x41		64	74	41
65	K65x70x16		65	70	16
	K65x70x18		65	70	18
	K65x70x20		65	70	20
	K65x73x20	83.5	65	73	20	41 200	79 600	7 500
	K65x73x30	124.0	65	73	30	59 300	127 000	7 500
	K65x73x40		65	73	40
68	K68x75x40		68	75	40
	K68x76x20	86.5	68	76	20	41 800	82 200	7 500
	K68x76x30		68	76	30
	K68x78x34		68	78	34
70	K70x76x30		70	76	30
	K70x77x20		70	77	20
	K70x77x40		70	77	40
	K70x78x20	89.0	70	78	20	42 500	84 900	7 000
	K70x78x30	132.0	70	78	30	61 200	136 000	7 000
	K70x78x35		70	78	35
	K70x78x39		70	78	39
	K70x78x40		70	78	40
	K70x78x42		70	78	42
	K70x78x43		70	78	43
	K70x80x42		70	80	42
72	K72x78x30		72	78	30
	K72x80x20	91.5	72	80	20	43 200	87 500	7 000
	K72x80x37		72	80	37
	K72x80x40		72	80	40
75	K75x81x20		75	81	20
	K75x81x30		75	81	30
	K75x82x30		75	82	30
75	K75x82x40		75	82	40
	K75x83x20	94.5	75	83	20	43 800	90 200	6 500
	K75x83x25	116.0	75	83	25	54 800	120 000	6 500
	K75x83x30	141.0	75	83	30	63 100	144 000	6 500
	K75x83x35	164.0	75	83	35	71 200	168 000	6 500
	K75x83x40		75	83	40
	K75x83x45		75	83	45
77	K77x85x40		77	85	40
	K77x85x41		77	85	41
78	K78x85x19.7		78	85	19.7
	K78x85x20.15		78	85	20.15
	K78x85x23.5		78	85	23.5
	K78x85x35.65		78	85	35.65
	K78x85x38.4		78	85	38.4
	K78x85x40		78	85	40
	K78x85x41		78	85	41
	K78x85x46		78	85	46
	K78x85x52.3		78	85	52.3
	K78x86x36		78	86	36
80	K80x88x22	110.0	80	88	22	49 700	108 000	6 000
	K80x88x25	123.0	80	88	25	56 400	127 000	6 000
	K80x88x26		80	88	26
	K80x88x30	149.0	80	88	30	65 000	153 000	6 000
	K80x88x35		80	88	35
	K80x88x40		80	88	40
	K80x88x46		80	88	46
82	K82x89x20		82	89	20
	K82x90x50		82	90	50
83	K83x90x20		83	90	20
84	K84x92x20		84	92	20
	K84x92x40		84	92	40
	K84x92x44		84	92	44
	K84x92x50		84	92	50
	K84x96x36		84	96	36
85	K85x91x12	44.5	85	91	12	25 200	56 700	6 000
	K85x92x17		85	92	17
	K85x92x19		85	92	19
	K85x92x35		85	92	35
	K85x92x38		85	92	38
	K85x92x52		85	92	52
	K85x92x54		85	92	54
	K85x93x20		85	93	20
	K85x93x25	130.0	85	93	25	57 800	134 000	6 000
	K85x93x30	157.0	85	93	30	66 600	161 000	6 000
87	K87x94x20		87	94	20
	K87x94x21		87	94	21
90	K90x97x18		90	97	18
90	K90x97x22		90	97	22
	K90x97x50		90	97	50
	K90x98x21.5		90	98	21.5
	K90x98x25	138.0	90	98	25	60 400	145 000	5 500
	K90x98x30	167.0	90	98	30	69 600	174 000	5 500
95	K95x103x30	175.0	95	103	30	70 900	182 000	5 500
	K95x103x40		95	103	40
100	K100x107x20		100	107	20
	K100x107x30		100	107	30
	K100x108x27		100	108	27
	K100x108x30	184.0	100	108	30	72 500	191 000	4 500
101	K101x109x20		101	109	20
	K101x109x40		101	109	40
110	K110x115x30		110	115	30
	K110x117x24		110	117	24
	K110x118x30		110	118	30
145	K145x153x26		145	153	26
	K145x153x31		145	153	31
160	K160x170x46		160	170	46			BEARINGPOWER
