FL15CB-LSK法兰型滑块滑轨、FL20CB-LSK法兰型滑块滑轨、FL20HB-LSK法兰型滑块滑轨、FL25CB-LSK法兰型滑块滑轨、FL25HB-LSK法兰型滑块滑轨、FL30CB-LSK法兰型滑块滑轨、FL30HB-LSK法兰型滑块滑轨、FL35CB-LSK法兰型滑块滑轨、FL35HB-LSK法兰型滑块滑轨、FL45CB-LSK法兰型滑块滑轨、FL45HB-LSK法兰型滑块滑轨

发布时间：2025-05-04

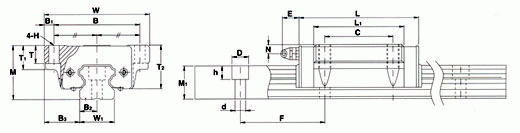

型号
Width
(W)
Length
(L)
Height
(M)
B
B1
L1
C
T
T1
T2
H
N
E
润滑油接管
FL-15CB
47
66.5
24
38
4.5
38.5
30
7
11
19.5
4.5
4.5
5.5
M4×0.7P
FL-20CB
63
80.5
30
53
5
50.5
40
10
10
24.5
6
5
12
M6×1.0P
FL-20HB
63
96.5
30
53
5
66.5
40
10
10
24.5
6
5
12
M6×1.0P
FL-25CB
70
89.5
36
57
6.5
59.5
45
12
16
29.0
7
6
12
M6×1.0P
FL-25HB
70
108.5
36
57
6.5
78.5
45
12
16
29.5
7
6
12
M6×1.0P
FL-30CB
90
103.5
42
72
9
70.5
52
12
18
34.5
9
7
12
M6×1.0P
FL-30HB
90
125.5
42
72
9
92.5
52
12
18
34.5
9
7
12
M6×1.0P
FL-35CB
100
115.5
48
82
9
80.5
62
13
21
39.5
9
8
12
M6×1.0P
FL-35HB
100
140.5
48
82
9
105.5
62
13
21
39.5
9
8
12
M6×1.0P
FL-45CB
120
137
60
100
10
98
80
14
25
48.5
11
10
16
1/8 PT
FL-45HB
120
169
60
100
10
130
80
14
25
48.5
11
10
16
1/8 PT
LSK滑轨的尺寸 LSK Rail Dimensions /mm
Width
(W1)
Height
(M1)
Pitch
(F)
B2
B3
dxDxh
C
kgf
Co
kgf
MA
kgf-M
MB
kgf-M
MC
kgf-M
Block
kgf
Rail
kgf
15
15
60
7.5
16
4.5×7.5×5.5
850
1380
7.3
7.3
10.1
0.2
1.7
20
18
60
10
21.5
6×9.5×8.5
1410
2430
15.9
15.9
23.7
0.35
2.5
20
18
60
10
21.5
6×9.5×8.5
2170
3240
27.5
27.5
31.6
0.47
2.5
23
22
60
11.5
23.5
7×11×9
2030
3510
27.5
27.5
40.0
0.59
3.6
23
22
60
11.5
23.5
7×11×9
2770
4680
46.8
46.8
51.8
0.75
3.6
28
26
80
14
31
9×14×12
2860
4770
43.8
43.8
65.8
1.1
5.1
28
26
80
14
31
9×14×12
3800
6370
74.4
74.4
87.7
1.3
5.1
34
29
80
17
33
9×14×12
3800
6230
65.4
65.4
104.7
1.6
6.9
34
29
80
17
33
9×14×12
5120
8310
111.1
111.1
139.9
2.0
6.9
45
38
105
22.5
37.5
14×20×17
6120
9750
127.6
127.6
213.2
2.8
11.0
45
38
105
22.5
37.5
14×20×17
8200
13000
217.1
217.1
284.1
3.3
11.0
