FR15TB-LSK法兰型滑块滑轨、FR15SB-LSK法兰型滑块滑轨、FR20TB-LSK法兰型滑块滑轨、FR20SB-LSK法兰型滑块滑轨、FR25TB-LSK法兰型滑块滑轨、FR25SB-LSK法兰型滑块滑轨、FR30TB-LSK法兰型滑块滑轨、FR30SB-LSK法兰型滑块滑轨、FR35TB-LSK法兰型滑块滑轨、FR35SB-LSK法兰型滑块滑轨

发布时间：2026-03-24

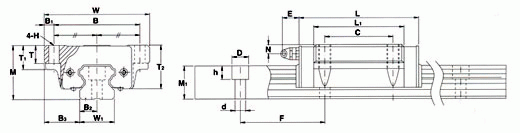

型号
Width
(W)
Length
(L)
Height
(M)
B
B1
L1
C
T
T1
T2
H
N
E
润滑油接管
FR-15TB
52
67.5
24
41
5.5
39.5
26
7
11
19.5
4.5
4
5.5
M4×0.7P
FR-15SB
52
50.5
24
41
5.5
22.5
-
7
11
19.5
4.5
4
5.5
M4×0.7P
FR-20TB
59
76.5
28
49
5
46.5
32
8
10
22.5
5.5
4
12
M6×1.0P
FR-20SB
59
57.5
28
49
5
27.5
-
8
10
22.5
5.5
4
12
M6×1.0P
FR-25TB
73
89.0
33
60
6.5
59.0
35
10
16
26
7
4.5
12
M6×1.0P
FR-25SB
73
65.0
33
60
6.5
35.0
-
10
16
26
7
4.5
12
M6×1.0P
FR-30TB
90
102.5
42
72
9
69.0
40
12
18
34.0
9
7
12
M6×1.0P
FR-30SB
90
73.5
42
72
9
40.5
-
12
18
34.0
9
7
12
M6×1.0P
FR-35TB
100
114.0
48
82
9
79.0
50
13
21
39.0
9
8
12
M6×1.0P
FR-35SB
100
80.5
48
82
9
45.5
-
13
21
39.0
9
8
12
M6×1.0P
LSK滑轨的尺寸 LSK Rail Dimensions /mm
Width
(W1)
Height
(M1)
Pitch
(F)
B2
B3
dxDxh
C
kgf
Co
kgf
MA
kgf-M
MB
kgf-M
MC
kgf-M
Block
kgf
Rail
kgf
15
15
60
7.5
18.5
4.5×7.5×5.5
850
1380
7.3
7.3
10.1
0.2
1.7
15
15
60
7.5
18.5
4.5×7.5×5.5
550
1132
2.04
2.04
4.08
0.15
1.7
20
18
60
10
19.5
6×9.5×8.5
1410
2430
15.9
15.9
23.7
0.35
2.5
20
18
60
10
19.5
6×9.5×8.5
730
1468
3.06
2.04
7.14
0.42
2.5
23
22
60
11.5
25
7×11×9
2030
3510
27.3
27.5
40.0
0.59
3.6
23
22
60
11.5
25
7×11×9
1190
2295
5.1
4.08
12.24
0.71
3.6
28
26
80
14
31
9×14×12
2860
4770
43.8
43.8
65.8
1.1
5.1
28
26
80
14
31
9×14×12
1754
3315
9.18
8.16
21.42
1.3
5.1
34
29
80
17
33
9×14×12
3800
6230
40.8
34.68
61.2
1.6
6.9
34
29
80
17
33
9×14×12
2428
4498
14.28
12.24
34.68
2.0
6.9
