FR-15TB-LSK法兰型滑块滑轨、FR-15SB-LSK法兰型滑块滑轨、FR-20TB-LSK法兰型滑块滑轨、FR-20SB-LSK法兰型滑块滑轨、FR-25TB-LSK法兰型滑块滑轨、FR-25SB-LSK法兰型滑块滑轨、FR-30TB-LSK法兰型滑块滑轨、FR-30SB-LSK法兰型滑块滑轨、FR-35TB-LSK法兰型滑块滑轨、FR-35SB-LSK法兰型滑块滑轨
发布时间：2025-05-05
|
型号 |
Width (W) |
Length (L) |
Height (M) |
B |
B1 |
L1 |
C |
T |
T1 |
T2 |
H |
N |
E |
润滑油接管 |
|
FR-15TB |
52 |
67.5 |
24 |
41 |
5.5 |
39.5 |
26 |
7 |
11 |
19.5 |
4.5 |
4 |
5.5 |
M4×0.7P |
|
FR-15SB |
52 |
50.5 |
24 |
41 |
5.5 |
22.5 |
- |
7 |
11 |
19.5 |
4.5 |
4 |
5.5 |
M4×0.7P |
|
FR-20TB |
59 |
76.5 |
28 |
49 |
5 |
46.5 |
32 |
8 |
10 |
22.5 |
5.5 |
4 |
12 |
M6×1.0P |
|
FR-20SB |
59 |
57.5 |
28 |
49 |
5 |
27.5 |
- |
8 |
10 |
22.5 |
5.5 |
4 |
12 |
M6×1.0P |
|
FR-25TB |
73 |
89.0 |
33 |
60 |
6.5 |
59.0 |
35 |
10 |
16 |
26 |
7 |
4.5 |
12 |
M6×1.0P |
|
FR-25SB |
73 |
65.0 |
33 |
60 |
6.5 |
35.0 |
- |
10 |
16 |
26 |
7 |
4.5 |
12 |
M6×1.0P |
|
FR-30TB |
90 |
102.5 |
42 |
72 |
9 |
69.0 |
40 |
12 |
18 |
34.0 |
9 |
7 |
12 |
M6×1.0P |
|
FR-30SB |
90 |
73.5 |
42 |
72 |
9 |
40.5 |
- |
12 |
18 |
34.0 |
9 |
7 |
12 |
M6×1.0P |
|
FR-35TB |
100 |
114.0 |
48 |
82 |
9 |
79.0 |
50 |
13 |
21 |
39.0 |
9 |
8 |
12 |
M6×1.0P |
|
FR-35SB |
100 |
80.5 |
48 |
82 |
9 |
45.5 |
- |
13 |
21 |
39.0 |
9 |
8 |
12 |
M6×1.0P |

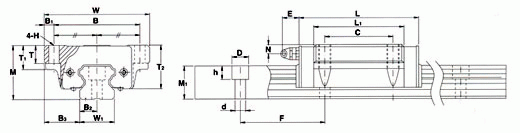

LSK滑轨的尺寸 LSK Rail Dimensions /mm
|
Width (W1) |
Height (M1) |
Pitch (F) |
B2 |
B3 |
dxDxh |
C kgf |
Co kgf |
MA kgf-M |
MB kgf-M |
MC kgf-M |
Block kgf |
Rail kgf |
|
15 |
15 |
60 |
7.5 |
18.5 |
4.5×7.5×5.5 |
850 |
1380 |
7.3 |
7.3 |
10.1 |
0.2 |
1.7 |
|
15 |
15 |
60 |
7.5 |
18.5 |
4.5×7.5×5.5 |
550 |
1132 |
2.04 |
2.04 |
4.08 |
0.15 |
1.7 |
|
20 |
18 |
60 |
10 |
19.5 |
6×9.5×8.5 |
1410 |
2430 |
15.9 |
15.9 |
23.7 |
0.35 |
2.5 |
|
20 |
18 |
60 |
10 |
19.5 |
6×9.5×8.5 |
730 |
1468 |
3.06 |
2.04 |
7.14 |
0.42 |
2.5 |
|
23 |
22 |
60 |
11.5 |
25 |
7×11×9 |
2030 |
3510 |
27.3 |
27.5 |
40.0 |
0.59 |
3.6 |
|
23 |
22 |
60 |
11.5 |
25 |
7×11×9 |
1190 |
2295 |
5.1 |
4.08 |
12.24 |
0.71 |
3.6 |
|
28 |
26 |
80 |
14 |
31 |
9×14×12 |
2860 |
4770 |
43.8 |
43.8 |
65.8 |
1.1 |
5.1 |
|
28 |
26 |
80 |
14 |
31 |
9×14×12 |
1754 |
3315 |
9.18 |
8.16 |
21.42 |
1.3 |
5.1 |
|
34 |
29 |
80 |
17 |
33 |
9×14×12 |
3800 |
6230 |
40.8 |
34.68 |
61.2 |
1.6 |
6.9 |
|
34 |
29 |
80 |
17 |
33 |
9×14×12 |
2428 |
4498 |
14.28 |
12.24 |
34.68 |
2.0 |
6.9 |
