搜轴承 -- 黑板报 -- FL-15CA-LSK法兰型滑块滑轨、FL-20CA-LSK法兰型滑块滑轨...
FL-15CA-LSK法兰型滑块滑轨、FL-20CA-LSK法兰型滑块滑轨、FL-20HA-LSK法兰型滑块滑轨、FL-25CA-LSK法兰型滑块滑轨、FL-25HA-LSK法兰型滑块滑轨、FL-30CA-LSK法兰型滑块滑轨、FL-30HA-LSK法兰型滑块滑轨、FL-35CA-LSK法兰型滑块滑轨、FL-35HA-LSK法兰型滑块滑轨、FL-45CA-LSK法兰型滑块滑轨、FL-45HA-LSK法兰型滑块滑轨
发布时间：2025-12-15
|
型号 |
Width (W) |
Length (L) |
Height (M) |
B |
B1 |
L1 |
C |
T |
T1 |
T2 |
Sx/ |
N |
E |
润滑油接管 |
|
FL-15CA |
47 |
66.5 |
24 |
38 |
4.5 |
38.5 |
30 |
7 |
11 |
19.5 |
M5×11 |
4.5 |
5.5 |
M4×0.7P |
|
FL-20CA |
63 |
80.5 |
30 |
53 |
5 |
50.5 |
40 |
10 |
10 |
24.5 |
M6×10 |
5 |
12 |
M6×1.0P |
|
FL-20HA |
63 |
96.5 |
30 |
53 |
5 |
66.5 |
40 |
10 |
10 |
24.5 |
M6×10 |
5 |
12 |
M6×1.0P |
|
FL-25CA |
70 |
89.5 |
36 |
57 |
6.5 |
59.5 |
45 |
12 |
16 |
29.0 |
M8×16 |
6 |
12 |
M6×1.0P |
|
FL-25HA |
70 |
108.5 |
36 |
57 |
6.5 |
78.5 |
45 |
12 |
16 |
29.0 |
M8×16 |
6 |
12 |
M6×1.0P |
|
FL-30CA |
90 |
103.5 |
42 |
72 |
9 |
70.5 |
52 |
12 |
18 |
34.0 |
M10×18 |
7 |
12 |
M6×1.0P |
|
FL-30HA |
90 |
125.5 |
42 |
72 |
9 |
92.5 |
52 |
12 |
18 |
34.0 |
M10×18 |
7 |
12 |
M6×1.0P |
|
FL-35CA |
100 |
115.5 |
48 |
82 |
9 |
80.5 |
62 |
13 |
21 |
39.0 |
M10×21 |
8 |
12 |
M6×1.0P |
|
FL-35HA |
100 |
140.5 |
48 |
82 |
9 |
105.5 |
62 |
13 |
21 |
39.0 |
M10×21 |
8 |
12 |
M6×1.0P |
|
FL-45CA |
120 |
137 |
60 |
100 |
10 |
98 |
80 |
14 |
25 |
48.5 |
M12×15 |
10 |
16 |
1/8 PT |
|
FL-45HA |
120 |
169 |
60 |
100 |
10 |
130 |
80 |
14 |
25 |
48.5 |
M12×15 |
10 |
16 |
1/8 PT |

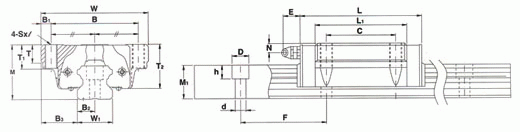

LSK滑轨的尺寸 LSK Rail Dimensions /mm
|
Width (W1) |
Height (M1) |
Pitch (F) |
B2 |
B3 |
dxDxh |
C kgf |
Co kgf |
MA kgf-M |
MB kgf-M |
MC kgf-M |
Block kgf |
Rail kgf |
|
15 |
15 |
60 |
7.5 |
16 |
4.5×7.5×5.5 |
850 |
1380 |
7.3 |
7.3 |
10.1 |
0.2 |
1.7 |
|
20 |
18 |
60 |
10 |
21.5 |
6×9.5×8.5 |
1410 |
2430 |
15.9 |
15.9 |
23.7 |
0.35 |
2.5 |
|
20 |
18 |
60 |
10 |
21.5 |
6×9.5×8.5 |
2170 |
3240 |
27.5 |
27.5 |
31.6 |
0.47 |
2.5 |
|
23 |
22 |
60 |
11.5 |
23.5 |
7×11×9 |
2030 |
3510 |
27.5 |
27.5 |
40.0 |
0.59 |
3.6 |
|
23 |
22 |
60 |
11.5 |
23.5 |
7×11×9 |
2770 |
4680 |
46.8 |
46.8 |
51.8 |
0.75 |
3.6 |
|
28 |
26 |
80 |
14 |
31 |
9×14×12 |
2860 |
4770 |
43.8 |
43.8 |
65.8 |
1.1 |
5.1 |
|
28 |
26 |
80 |
14 |
31 |
9×14×12 |
3800 |
6370 |
74.4 |
74.4 |
87.7 |
1.3 |
5.1 |
|
34 |
29 |
80 |
17 |
33 |
9×14×12 |
3800 |
6230 |
65.4 |
65.4 |
104.7 |
1.6 |
6.9 |
|
34 |
29 |
80 |
17 |
33 |
9×14×12 |
5120 |
8310 |
111.1 |
111.1 |
139.9 |
2.0 |
6.9 |
|
45 |
38 |
105 |
22.5 |
37.5 |
14×20×17 |
6120 |
9750 |
127.6 |
127.6 |
213.2 |
2.8 |
11.0 |
|
45 |
38 |
105 |
22.5 |
37.5 |
14×20×17 |
8200 |
13000 |
217.1 |
217.1 |
284.1 |
3.3 |
11.0 |
