SFE01616-3滚珠丝杠、SFE01616-6滚珠丝杠、SFE01632-3滚珠丝杠、SFE01632-6滚珠丝杠、SFE02020-3滚珠丝杠、SFE02020-6滚珠丝杠、SFE02040-3滚珠丝杠、SFE02040-6滚珠丝杠、SFE02525-3滚珠丝杠、SFE02525-6滚珠丝杠

发布时间：2025-05-05

d:外径 Screw O.D.  I:导程 Lead  Da:珠径 Ball Dia   n:珠圈数 Number of Circuits  K:刚性 Stiffness(Kgf/um)
Ca:动额定负荷 Basic Dynamic Rating Load(Kgf)     Coa:静额定负荷 Basic Static Rating Load(Kgf)

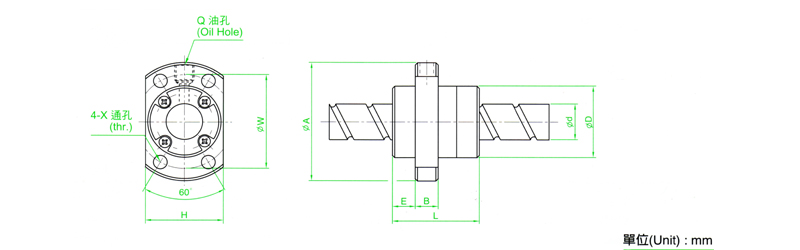

螺帽型号	螺杆，螺帽的基本数据  Dimensions
Nut Model No.	d	I	Da	D	A	E	B	L	X	W	H	Q	n	Ca	Coa	K
SFE01616-3	16	16	2.778	32	53	10.1	10	38	4.5	42	34	M6	1.7x2	1021	2409	29
SFE01616-6		16	2.778	32	53	10.1	10	38	4.5	42	34	M6	1.7x4	1853	4818	57
SFE01632-3		32	3.175	34	55	10.5	10	34	5.5	45	36	M6	0.7X2	518	1094	11
SFE01632-6		32	3.175	34	55	10.5	10	34	5.5	45	36	M6	0.7X4	939	2188	21
SFE02020-3	20	20	3.175	39	62	11.5	10	47	5.5	50	41	M6	1.7x2	1321	3320	35
SFE02020-6		20	3.175	39	62	11.5	10	47	5.5	50	41	M6	1.7x4	2397	6640	67
SFE02040-3		40	3.175	38	58	11	10	41	5.5	48	40	M6	0.7X2	582	1397	13
SFE02040-6		40	3.175	38	58	11	10	41	5.5	48	40	M6	0.7X4	1056	2794	26
SFE02525-3	25	25	3.969	47	74	13	12	57	6.6	60	49	M6	1.7x2	1974	5188	43
SFE02525-6		25	3.969	47	74	13	12	57	6.6	60	49	M6	1.7x4	3583	10377	83
SFE02550-3		50	3.969	46	70	13	12	50	6.6	58	48	M6	0.7X2	870	2183	16
SFE02550-6		50	3.969	46	70	13	12	50	6.6	58	48	M6	0.7X4	1579	4366	32
SFE03232-3	32	32	4.762	58	92	16	12	71	9	74	60	M6	1.7x2	2876	8207	54
SFE03232-6		32	4.762	58	92	16	12	71	9	74	60	M6	1.7x4	5220	16414	106
SFE03264-3		64	4.762	58	92	15.5	12	62	9	74	60	M6	0.7X2	1225	3282	20
SFE03264-6		64	4.762	58	92	15.5	12	62	9	74	60	M6	0.7X4	2223	6565	39
SFE04040-3	40	40	6.350	73	114	19	15	89	11	93	75	M6	1.7x2	4600	13281	66
SFE04040-6		40	6.350	73	114	19	15	89	11	93	75	M6	1.7x4	8348	26561	128
SFE05050-3	50	50	7.938	90	135	21.5	20	107	14	112	92	M6	1.7x2	6512	19430	80
SFE05050-6		50	7.938	90	135	21.5	20	107	14	112	92	M6	1.7x4	11820	38859	155
