SFY01616-3.6滚珠丝杠、SFY01632-1.6滚珠丝杠、SFY02020-3.6滚珠丝杠、SFY02040-1.6滚珠丝杠、SFY02525-3.6滚珠丝杠、SFY02550-1.6滚珠丝杠、SFY03232-3.6滚珠丝杠、SFY03264-1.6滚珠丝杠、SFY04040-3.6滚珠丝杠、SFY04080-1.6滚珠丝杠、SFY05050-3.6滚珠丝杠、SFY050100-1.6滚珠丝杠

发布时间：2026-01-31

d:外径 Screw O.D.  I:导程 Lead  Da:珠径 Ball Dia   n:珠圈数 Number of Circuits  K:刚性 Stiffness(Kgf/um)
Ca:动额定负荷 Basic Dynamic Rating Load(Kgf)     Coa:静额定负荷 Basic Static Rating Load(Kgf)

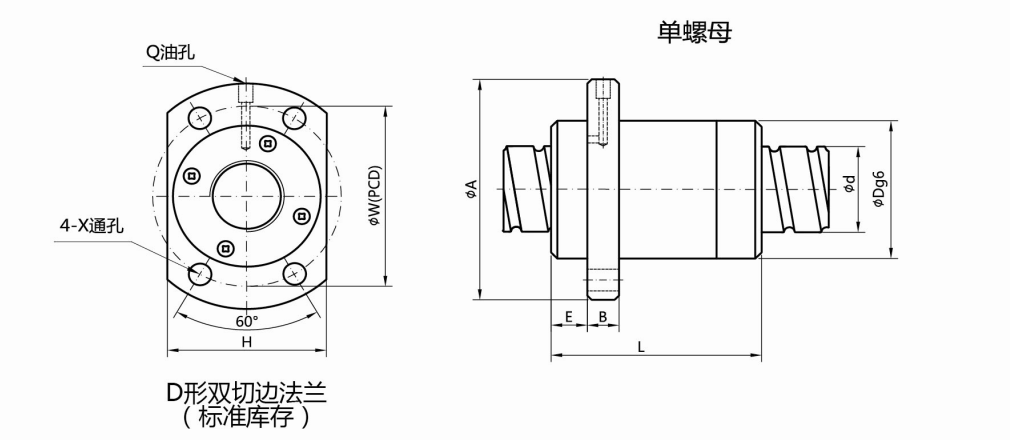

螺帽型号	螺杆，螺帽的基本数据  Dimensions
Nut Model No.	d	I	Da	D	A	E	B	L	X	W	H	Q	n	Ca	Coa	K
SFY01616-3.6	16	16	2.778	32	53	10.1	10	45	4.5	42	34	M6	1.8x2	1073	2551	31
SFY01632-1.6		32	2.778	32	55	10.1	10	42.5	5.5	42	34	M6	0.8X2	493	1116	11
SFY02020-3.6	20	20	3.175	39	62	13	10	52	5.5	50	41	M6	1.8x2	1387	3515	37
SFY02040-1.6		40	3.175	39	62	13	10	48	5.5	50	41	M6	0.8X2	653	1597	15
SFY02525-3.6	25	25	3.969	47	74	15	12	64	6.6	60	49	M6	1.8x2	2074	5494	45
SFY02550-1.6		50	3.969	47	74	15	12	58	6.6	60	49	M6	0.8x2	976	2495	19
SFY03232-3.6	32	32	4.762	58	92	17	12	78	9	74	60	M6	1.8x2	3021	8690	58
SFY03264-1.6		64	4.762	58	92	17	12	71	9	74	60	M6	0.8x2	1374	3571	22
SFY04040-3.6	40	40	6.350	73	114	19.5	15	99	11	93	75	M6	1.8x2	4831	14062	70
SFY04080-1.6		80	6.350	73	114	19.5	15	90	11	93	75	M6	0.8X2	2273	6387	29
SFY05050-3.6	50	50	7.938	90	135	21.5	20	117	14	112	92	M6	1.8x2	7220	21974	86
SFY050100-1.6		100	7.938	90	135	21.5	20	111	14	112	92	M6	0.8X2	3398	9980	35
