SFA04005-T4滚珠丝杠、SFA04010-T4滚珠丝杠、SFA05005-T4滚珠丝杠、SFA05010-T4滚珠丝杠、SFA05020-T4滚珠丝杠、SFA06310-T4滚珠丝杠、SFA06320-T4滚珠丝杠、SFA08010-T4滚珠丝杠、SFA08020-T4滚珠丝杠、SFA10020-T4滚珠丝杠

发布时间：2026-08-13

d:外径 Screw O.D.  I:导程 Lead  Da:珠径 Ball Dia   n:珠圈数 Number of Circuits  K:刚性 Stiffness(Kgf/um)
Ca:动额定负荷 Basic Dynamic Rating Load(Kgf)     Coa:静额定负荷 Basic Static Rating Load(Kgf)

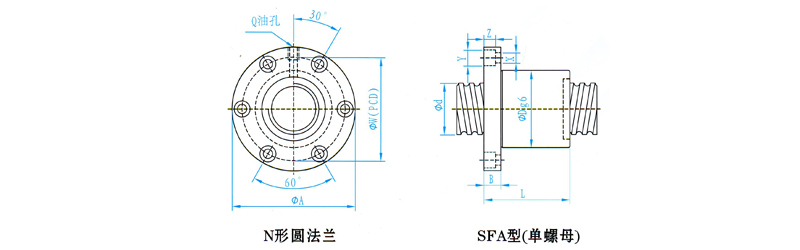

螺帽型号	螺杆，螺帽的基本数据  Dimensions
Nut Model No.	d	I	Da	D	A	B	L	W	X	Y	Z	Q	n	Ca	Coa	K
SFA01204-T4	12	4	2.381	22	44	8	40	32	4.8	8.5	4.5		1X4	902	1884	26
SFA01604-T4	16	4	2.381	28	52	10	40	38	5.8	10	6	M6	1X4	973	2406	32
SFA01605-T4		5	3.175	28	52	10	50	38	5.8	10	6	M6	1X4	1380	3052	32
SFA02004-T4	20	4	2.381	36	62	11	42	48	5.8	10	6	M6	1X4	1006	2987	38
SFA02005-T4		5	3.175	36	62	11	51	48	5.8	10	6	M6	1X4	1551	3875	39
SFA02504-T4	25	4	2.381	40	66	11	42	53	5.8	10	6	M6	1X4	1180	3795	43
SFA02505-T4		5	3.175	40	66	11	51	53	5.8	10	6	M6	1X4	1724	4904	45
SFA02510-T4		10	4.762	42	69	15	85	55	6.5	11	6.5	M8	1X4	2954	7295	50
SFA03204-T4	32	4	2.381	50	76	11	44	63	5.8	10	6	M6	1X4	1296	4838	51
SFA03205-T4		5	3.175	50	82	13	52	67	7	12	7	M6	1X4	1922	6343	54
SFA03210-T4		10	6.350	53	90	15	90	71	9	15	9	M6	1X4	4805	12208	61
d:外径 Screw O.D.  I:导程 Lead  Da:珠径 Ball Dia   n:珠圈数 Number of Circuits  K:刚性 Stiffness(Kgf/um)
Ca:动额定负荷 Basic Dynamic Rating Load(Kgf)     Coa:静额定负荷 Basic Static Rating Load(Kgf)
螺帽型号	螺杆，螺帽的基本数据  Dimensions
Nut Model No.	d	I	Da	D	A	B	L	W	X	Y	Z	Q	n	Ca	Coa	K
SFA04005-T4	40	5	3.175	60	94	15	55	75	9	15	9	M8	1X4	2110	7988	63
SFA04010-T4		10	6.350	63	108	18	93	85	11	18	11	M8	1X4	5399	15500	73
SFA05005-T4	50	5	3.175	71	110	15	47	90	9	15	9	M8	1X4	2207	9542	68
SFA05010-T4		10	6.350	75	118	18	93	95	11	18	11	M8	1X4	6004	19614	85
SFA05020-T4		20	7.144	90	138	28	138	112	13.5	22	13	M8	1X4	7142	22588	94
SFA06310-T4	63	10	6.350	90	138	22	98	112	13.5	22	13	M8	1X4	6719	25358	99
SFA06320-T4		20	9.525	95	148	28	149	118	13.5	22	13	M8	1X4	11444	36653	112
SFA08010-T4	80	10	6.350	105	156	22	98	130	13.5	22	13	M8	1X4	7346	31953	109
SFA08020-T4		20	9.525	118	168	28	154	140	13.5	22	13	M8	1X4	12911	47747	138
SFA10020-T4	100	20	9.525	140	204	28	180	170	17.5	28	17	M10	1X4	14303	60698	162
