DFI03205-4滚珠丝杠、DFI03210-4滚珠丝杠、DFI04005-4滚珠丝杠、DFI04010-4滚珠丝杠、DFI05010-4滚珠丝杠、DFI06310-4滚珠丝杠、DFI08010-4滚珠丝杠

发布时间：2025-10-22

d:外径 Screw O.D.  I:导程 Lead  Da:珠径 Ball Dia   n:珠圈数 Number of Circuits  Ls:螺杆长度 Screw Length
Ca:动额定负荷 Basic Dynamic Rating Load(Kgf)     Coa:静额定负荷 Basic Static Rating Load(Kgf)

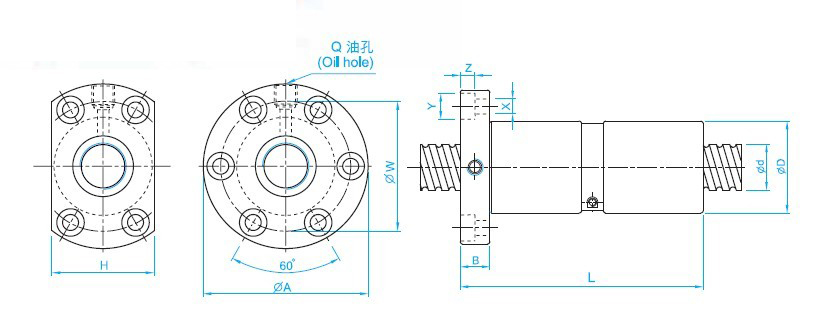

螺帽型号	螺杆，螺帽的基本数据  Dimensions
Nut Model No.	d	I	Da	D	A	B	L	W	H	X	Y	Z	Q	n	Ca	Coa	K
DFI01604-4	16	4	2.381	30	49	10	80	39	34	4.5	8	4.5	M6	1*4	973	2406	44
DFI01605-4		5	3.175	30	49	10	100	39	34	4.5	8	4.5	M6	1*4	1380	3052	44
DFI02004-4	20	4	2.381	34	57	11	80	45	40	5.5	9.5	5.5	M6	1*4	1066	2987	51
DFI02005-4		5	3.175	34	57	11	101	45	40	5.5	9.5	5.5	M6	1*4	1551	3875	52
DFI02504-4	25	4	2.381	40	63	11	80	51	46	5.5	9.5	5.5	M6	1*4	1180	3795	60
DFI02505-4		5	3.175	40	63	11	101	51	46	5.5	9.5	5.5	M8	1*4	1724	4904	62
DFI02510-4		10	4.762	46	72	12	145	58	52	6.5	11	6.5	M6	1*4	2954	7295	68
DFI03204-4	32	4	2.381	46	72	12	80	58	52	6.5	11	6.5	M6	1*4	1296	4838	69
DFI03205-4		5	3.175	46	72	12	102	58	52	6.5	11	6.5	M8	1*4	1922	6343	72
DFI03210-4		10	6.350	54	88	15	162	70	62	9	14	8.5	M8	1*4	4805	12208	83
DFI04005-4	40	5	3.175	56	90	15	105	72	64	9	14	8.5	M8	1*4	2110	7988	84
DFI04010-4		10	6.350	62	104	18	165	82	70	11	17.5	11	M8	1*4	5399	15500	99
DFI05010-4	50	10	6.350	72	114	18	171	92	82	11	17.5	11	M8	1*4	6004	19614	115
DFI06310-4	63	10	6.350	85	131	22	182	107	95	14	20	13	M8	1*4	6719	25358	135
DFI08010-4	80	10	6.350	105	150	22	182	127	115	14	20	13	M8	1*4	7346	31953	156
