DFU01604-4滚珠丝杠、DFU01605-4滚珠丝杠、DFU01610-3滚珠丝杠、DFU02004-4滚珠丝杠、DFU02005-4滚珠丝杠、DFU02504-4滚珠丝杠、DFU02505-4滚珠丝杠、DFU02506-4滚珠丝杠、DFU02508-4滚珠丝杠、DFU02510-4滚珠丝杠、DFU03204-4滚珠丝杠、DFU03205-4滚珠丝杠、DFU03206-4滚珠丝杠

发布时间：2025-05-05

d:外径 Screw O.D.  I:导程 Lead  Da:珠径 Ball Dia   n:珠圈数 Number of Circuits  K:刚性 Stiffness(Kgf/um)
Ca:动额定负荷 Basic Dynamic Rating Load(Kgf)     Coa:静额定负荷 Basic Static Rating Load(Kgf)

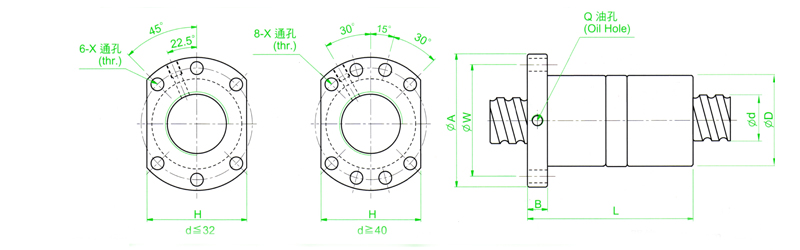

螺帽型号	螺杆，螺帽的基本数据  Dimensions
Nut Model No.	d	I	Da	D	A	B	L	W	X	H	Q	n	Ca	Coa	K
DFU01604-4	16	4	2.381	28	48	10	80	38	5.5	40	M6	1X4	973	2406	43
DFU01605-4		5	3.175	28	48	10	100	38	5.5	40	M6	1X4	1380	3052	44
DFU01610-3		10	3.175	28	48	10	118	38	5.5	40	M6	1X3	1103	2401	35
DFU02004-4	20	4	2.381	36	58	10	80	47	6.6	44	M6	1X4	1006	2987	51
DFU02005-4		5	3.175	36	58	10	101	47	6.6	44	M6	1X4	1551	3875	53
DFU02504-4	25	4	2.381	40	62	10	80	51	6.6	48	M6	1X4	1180	3795	60
DFU02505-4		5	3.175	40	62	10	101	51	6.6	48	M6	1X4	1724	4904	62
DFU02506-4		6	3.969	40	62	10	105	51	6.6	48	M6	1X4	2318	6057	64
DFU02508-4		8	4.762	40	62	10	120	51	6.6	48	M6	1X4	2963	7313	67
DFU02510-4		10	4.765	40	62	10	145	51	6.6	48	M6	1X4	2954	7295	67
DFU03204-4	32	4	2.381	50	80	12	80	65	9	62	M6	1X4	1296	4838	71
DFU03205-4		5	3.175	50	80	12	102	65	9	62	M6	1X4	1922	6343	74
DFU03206-4		6	3.969	50	80	12	105	65	9	62	M6	1X4	2632	7979	78
DFU03208-4		8	4.762	50	80	12	122	65	9	62	M6	1X4	3387	9622	82
DFU03210-4		10	6.350	50	80	12	162	65	9	62	M6	1X4	4805	12208	82
DFU04005-4	40	5	3.175	63	93	14	108	78	9	70	M8	1X4	2110	7988	87
DFU04006-4		6	3.969	63	93	14	108	78	9	70	M6	1X4	2873	9913	91
DFU04008-4		8	4.762	63	93	14	132	78	9	70	M6	1X4	3712	11947	96
DFU04010-4		10	6.350	63	93	14	165	78	9	70	M8	1X4	5399	15500	99
DFU05010-4	50	10	6.350	75	110	16	171	93	11	85	M8	1X4	6004	19614	117
DFU05020-4		20	7.144	75	110	16	280	93	11	85	M8	1X4	7142	22588	126
DFU06310-4	63	10	6.350	90	125	18	182	108	11	95	M8	1X4	6719	25358	139
DFU06320-4		20	9.525	95	135	20	290	115	13.5	100	M8	1X4	11444	36653	152
DFU08010-4	80	10	6.350	105	145	20	182	125	13.5	110	M8	1X4	7346	31953	156
DFU08020-4		20	9.525	125	165	25	295	145	13.5	130	M8	1X4	12911	47747	187
DFU10020-4	100	20	9.525	150	202	30	340	170	17.5	155	M8	1X4	14303	60698	222
