GK20SK向心关节轴承、GK25SK向心关节轴承、GK30SK向心关节轴承、GK35SK向心关节轴承、GK40SK向心关节轴承、GK50SK向心关节轴承、GK60SK向心关节轴承、GK70SK向心关节轴承、GK80SK向心关节轴承、GK90SK向心关节轴承、GK100SK向心关节轴承、GK110SK向心关节轴承、GK120SK向心关节轴承、GK140SK向心关节轴承、GK160SK向心关节轴承

发布时间：2019-10-16

型号	尺寸											额定负荷		重量

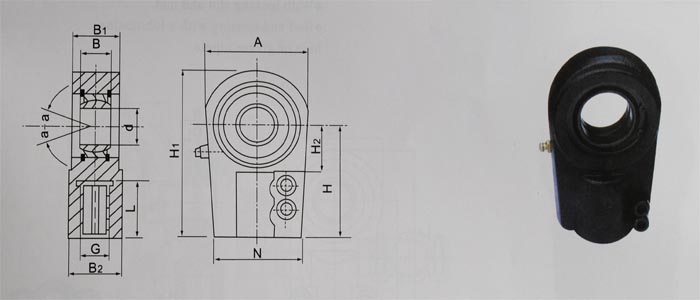

型号	d	G	B	B1	B2	H2	L	A	N	H	H1	动	静	重量
GK20SK	20	M18*2	16	23	28	25	30	56	48	65	95	48	82	0.42
GK25SK	25	M18*2	20	23	28	25	30	56	48	65	95	63	82	0.57
GK30SK	30	M24*2	22	28	34	30	35	64	54	75	109	82.7	122	0.91
GK35SK	35	M30*2	25	30	44	40	45	78	66	90	132	107	177	1.9
GK40SK	40	M39*2	28	35	55	45	55	94	78	105	155	135	287	3.0
GK50SK	50	M50*3	35	40	70	55	75	116	90	135	198	210	422	4.9
GK60SK	60	M64*3	44	50	87	65	95	130	118	170	240	234	522	7.5
GK70SK	70	M80*3	49	55	105	75	110	154	130	195	278	431	707	11.5
GK80SK	80	M90*3	55	60	125	80	120	176	158	210	305	554	870	16.5
GK90SK	90	M100*3	60	65	150	90	140	206	162	250	365	671	1284	35.5
GK100SK	100	M110*4	70	70	170	105	150	230	172	275	400	842	1460	43.5
GK110SK	110	M120*4	70	80	180	115	160	264	194	300	442	910	2024	60.5
GK120SK	120	M150*4	85	90	210	140	190	334	224	360	540	1336	2970	96.5
GK140SK	140	M160*4	90	110	230	185	200	380	252	420	620	1665	3500	138
GK160SK	160	M180*4	105	110	260	200	220	480	290	460	710	1935	4302	209

注：1.螺纹精度为6H.
2.a值与相应的GE…ES系列向心关节轴承的a值相同。
3.内装的是GE…ES系列向心关节轴承。
4.螺纹外有夹紧槽，并由紧固螺钉。
5.外壳为45#钢锻造加工而成。
