HYN7C直线导轨滑块轴承、HYN7H直线导轨滑块轴承、HYN9C直线导轨滑块轴承、HYN9H直线导轨滑块轴承、HYN12C直线导轨滑块轴承、HYN12H直线导轨滑块轴承、HYN15C直线导轨滑块轴承、HYN15H直线导轨滑块轴承、HYN7C滑块、HYN7H滑块、HYN9C滑块、HYN9H滑块、HYN12C滑块、HYN12H滑块、HYN15C滑块、HYN15H滑块
发布时间：2026-01-29

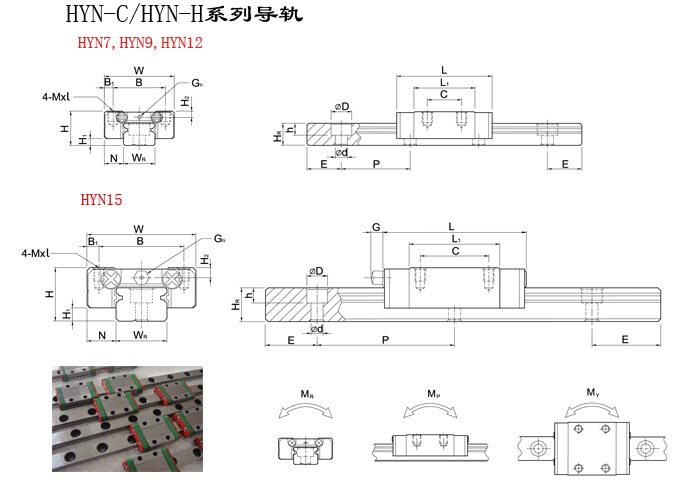

型号 |
组件尺寸(mm) |
滑块尺寸(mm) |
滑块重量g | |||||||||||
|
H |
H1 |
N |
W |
B |
B1 |
C |
L1 |
L |
G |
Gn |
M*l |
H2 | ||
|
HYN7C |
8 |
1.5 |
5 |
17 |
12 |
2.5 |
8 |
13.5 |
22.5 |
- |
Φ1.2 |
M2*2.5 |
1.5 |
10 |
|
HYN7H |
13 |
21.8 |
30.8 |
15 | ||||||||||
|
HYN9C |
10 |
2 |
5.5 |
20 |
15 |
2.5 |
10 |
18.9 |
28.9 |
- |
Φ1.2 |
M3*3 |
1.8 |
16 |
|
HYN9H |
16 |
29.9 |
39.9 |
26 | ||||||||||
|
HYN12C |
13 |
3 |
7.5 |
27 |
20 |
3.5 |
15 |
21.7 |
34.7 |
- |
Φ1.4 |
M3*3.5 |
2.5 |
34 |
|
HYN12H |
20 |
32.4 |
45.4 |
54 | ||||||||||
|
HYN15C |
15 |
4 |
8.5 |
32 |
25 |
3.5 |
20 |
26.7 |
42.1 |
4.5 |
M3 |
M3*4 |
3 |
59 |
|
HYN15H |
25 |
43.4 |
58.8 |
92 | ||||||||||
|
型号 |
滑轨尺寸 |
滑轨固定螺栓尺寸(mm) |
基本额定动载荷C(kgf) |
基本额定静载荷C0(kgf) |
容许静力矩 |
滑轨重量Kg/m | ||||||||
|
WR |
HR |
D |
h |
d |
p |
E |
MR |
MP |
MY | |||||
|
HYN7C |
7 |
4.8 |
4.2 |
2.3 |
2.4 |
15 |
5 |
M2*6 |
100 |
127 |
0.48 |
0.29 |
0.29 |
0.22 |
|
HYN7H |
140 |
200 |
0.78 |
0.49 |
0.49 | |||||||||
|
HYN9C |
9 |
6.5 |
6 |
3.5 |
3.5 |
20 |
7.5 |
M3*8 |
190 |
260 |
1.2 |
0.75 |
0.75 |
0.38 |
|
HYN9H |
260 |
410 |
2 |
1.9 |
1.9 | |||||||||
|
HYN12C |
12 |
8 |
6 |
4.5 |
4.5 |
25 |
10 |
M3*8 |
290 |
400 |
2.6 |
1.4 |
1.4 |
0.65 |
|
HYN12H |
380 |
600 |
3.9 |
3.7 |
3.7 | |||||||||
|
HYN15C |
15 |
10 |
6 |
4.5 |
4.5 |
40 |
15 |
M3*10 |
470 |
570 |
4.6 |
2.2 |
2.2 |
1.06 |
|
HYN15H |
650 |
930 |
7.5 |
5.9 |
5.9 | |||||||||
