LBH15UU滚动花键、LBH20UU滚动花键、LBH25UU滚动花键、LBH30UU滚动花键、LBH40UU滚动花键、LBH50UU滚动花键、LBH15UU滚珠花键、LBH20UU滚珠花键、LBH25UU滚珠花键、LBH30UU滚珠花键、LBH40UU滚珠花键、LBH50UU滚珠花键

发布时间：2026-05-07

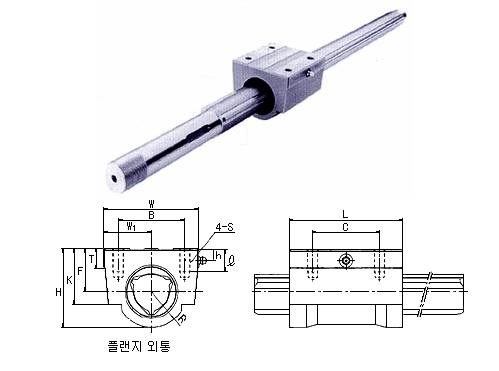

Model No. Spline-nut dimensions

Height Width Length B

C

S× F W1 T K

H W L ±015 ±0.15

LBH 15 29 34 43 26 26 M4×10 15 17 6 20

LBH 20 38 48 62 35 35 M6×12 20 24 7 26

LBH 25 47.5 60 73 40 40 M8×16 25 30 8 33

LBH 30 57 70 83 50 50 M8×16 30 35 10 39

LBH 40 70 86 102 60 60 M10×20 38 43 15 50

LBH 50 88 100 115 75 75 M12×25 48 50 18 63

Model No. Basic torque Basic load Static permissible Mass Spline-nut dimensions

rating

rating (radial) moment

CT C0T C C0 MA Spline nut Spline shaft R h Grease

N·m N·m kN kN N·m kg kg/m nipple

LBH 15 30.4 74.5 4.4 8.4 25.4 0.23 1 14 5 φ4

LBH 20 90.2 213 9.4 20.1 103 0.58 1.8 18 7 A-M6F

LBH 25 176 381 14.9 28.7 171 1.1 2.7 22 6 A-M6F

LBH 30 312 657 22.5 41.4 295 1.73 3.8 26 8 A-M6F

LBH 40 696 1420 37.1 66.9 586 3.18 6.8 32 10 A-M6F

LBH 50 1290 2500 55.1 94.1 941 5.1 10.6 40 13.5 A-PT1/8
