搜轴承 -- 黑板报 -- KP3AL轴承、KP3A轴承、KP4A轴承、KP5A轴承、KP6A轴承、KP...

KP3AL轴承、KP3A轴承、KP4A轴承、KP5A轴承、KP6A轴承、KP8A轴承、KP10A轴承、KP12A轴承、KP16A轴承、KP20A轴承、KP3AL非标轴承、KP3A非标轴承、KP4A非标轴承、KP5A非标轴承、KP6A非标轴承、KP8A非标轴承、KP10A非标轴承、KP12A非标轴承、KP16A非标轴承、KP20A非标轴承

发布时间：2025-10-22

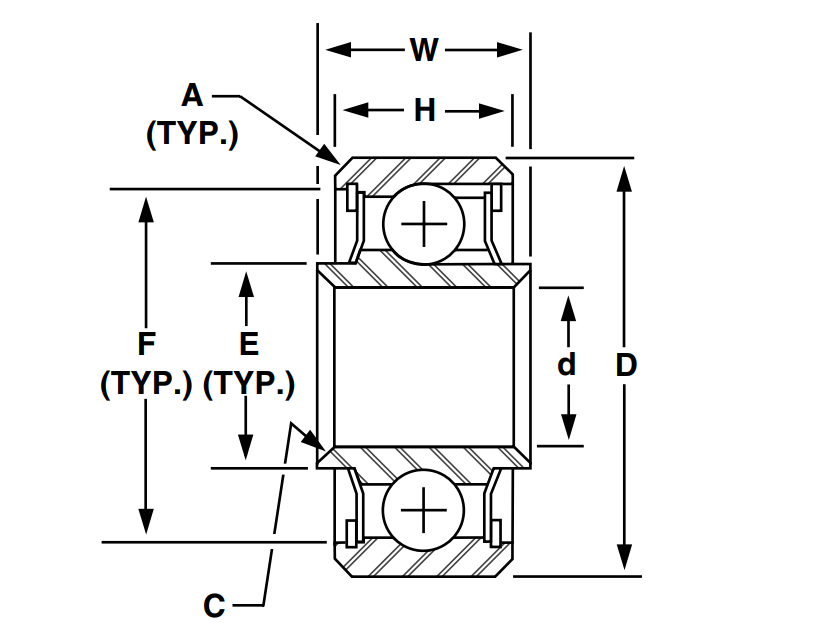

Bearing	MS	Bore		Outside Diameter		Widths				Thrust
	27641									Limit
	Dash	d		D		B		C		Load
Number	No.	+0.0000,-.0005		+0.0000,-.0005		+0.000,-0.005		+0.000,-.005		Rating
		+0.000,-.013		+0.000,-.013		+0.00,-.13		+0.00,-.13
		in.	mm	in.	mm	in.	mm	in.	mm	lbs.	N
KP3AL	--	0.19	4.826	0.5	12.7	0.237	6.02	0.196	4.98	430	1900
KP3A	-3	0.19	4.826	0.625	15.875	0.297	7.54	0.234	5.94	700	3100
KP4A	-4	0.25	6.35	0.75	19.05	0.281	7.14	0.219	5.56	900	4000
KP5A	-5	0.3125	7.938	0.8125	20.638	0.297	7.54	0.234	5.94	1000	4500
KP6A	-6	0.375	9.525	0.875	22.225	0.313	7.95	0.25	6.35	1100	4900
KP8A	-8	0.5	12.7	1.125	28.575	0.375	9.52	0.313	7.95	1700	7500
KP10A	-10	0.625	15.875	1.375	34.925	0.406	10.31	0.344	8.74	3000	13400
KP12A	-12	0.75	19.05	1.625	41.275	0.437	11.1	0.375	9.52	3900	17300
KP16A	-16	1	25.4	2	50.8	0.5	12.7	0.438	11.13	5200	23200
KP20A	-20	1.25	31.75	2.25	57.15	0.5	12.7	0.438	11.13	6100	27000
Bearing	d 1		r 1		r		Wt.		Radial		Bearing
									Limit
									Load
Number	Approx.		+.015,-.000		+.015,-.000		Approx.		Rating		Number
			+.38,-.00		+.38,-.00
	in.	mm	in.	mm	in.	mm	lbs.	kg	lbs.	N
KP3AL	0.258	6.55	0.005	0.13	0.012	0.3	0.01	0.005	970	4300	KP3AL
KP3A	0.27	6.86	0.005	0.13	0.016	0.41	0.01	0.005	1560	6950	KP3A
KP4A	0.349	8.86	0.005	0.13	0.016	0.41	0.02	0.009	1880	8300	KP4A
KP5A	0.428	10.87	0.015	0.38	0.016	0.41	0.02	0.009	2190	9800	KP5A
KP6A	0.505	12.83	0.015	0.38	0.016	0.41	0.03	0.014	2500	11200	KP6A
KP8A	0.635	16.13	0.015	0.38	0.016	0.41	0.05	0.023	3910	17300	KP8A
KP10A	0.76	19.3	0.015	0.38	0.032	0.81	0.08	0.036	6700	30000	KP10A
KP12A	0.955	24.26	0.015	0.38	0.032	0.81	0.13	0.059	8790	39000	KP12A
KP16A	1.262	32.05	0.015	0.38	0.032	0.81	0.22	0.1	11900	53000	KP16A
KP20A	1.512	38.4	0.015	0.38	0.032	0.81	0.26	0.118	13800	61000	KP20A
