搜轴承 -- 黑板报 -- UCTH210-300轴承框架、UCTH210-32-300轴承框架、UCTH211-32-30...

UCTH210-300轴承框架、UCTH210-32-300轴承框架、UCTH211-32-300轴承框架、UCTH211-34-300轴承框架、UCTH211-300轴承框架、UCTH211-35-300轴承框架、UCTH212-36-300轴承框架、UCTH212-300轴承框架、UCTH212-38-300轴承框架、UCTH212-39-300轴承框架、UCTH213-40-300轴承框架、UCTH213-300轴承框架、UCTH201-150带型钢制框架的滑块座

发布时间：2019-08-22

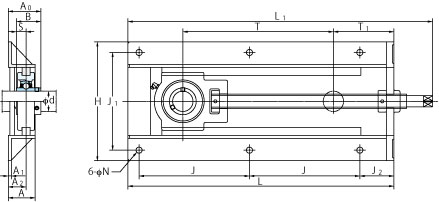

组件型号	轴承座型号	轴承型号	轴径	H 尺寸	L 尺寸	J 尺寸	基本额定负荷
							Cr	Cor
UCTH201-150	H204.5-150	UC201	12 mm	200 mm    7-7/8 in	318 mm    12-17/32 in	117 mm    4-39/64 in	12.8 kN	6.65 kN
							2877 lbf	1494 lbf
UCTH201-8-150	H204.5-150	UC201-8	1/2 in	200 mm    7-7/8 in	318 mm    12-17/32 in	117 mm    4-39/64 in	12.8 kN	6.65 kN
							2877 lbf	1494 lbf
UCTH202-150	H204.5-150	UC202	15 mm	200 mm    7-7/8 in	318 mm    12-17/32 in	117 mm    4-39/64 in	12.8 kN	6.65 kN
							2877 lbf	1494 lbf
UCTH202-10-150	H204.5-150	UC202-10	5/8 in	200 mm    7-7/8 in	318 mm    12-17/32 in	117 mm    4-39/64 in	12.8 kN	6.65 kN
							2877 lbf	1494 lbf
UCTH203-150	H204.5-150	UC203	17 mm	200 mm    7-7/8 in	318 mm    12-17/32 in	117 mm    4-39/64 in	12.8 kN	6.65 kN
							2877 lbf	1494 lbf
UCTH204-12-150	H204.5-150	UC204-12	3/4 in	200 mm    7-7/8 in	318 mm    12-17/32 in	117 mm    4-39/64 in	12.8 kN	6.65 kN
							2877 lbf	1494 lbf
UCTH204-150	H204.5-150	UC204	20 mm	200 mm    7-7/8 in	318 mm    12-17/32 in	117 mm    4-39/64 in	12.8 kN	6.65 kN
							2877 lbf	1494 lbf
UCTH205-14-150	H204.5-150	UC205-14	7/8 in	200 mm    7-7/8 in	318 mm    12-17/32 in	117 mm    4-39/64 in	14 kN	7.85 kN
							3147 lbf	1764 lbf
UCTH205-15-150	H204.5-150	UC205-15	15/16 in	200 mm    7-7/8 in	318 mm    12-17/32 in	117 mm    4-39/64 in	14 kN	7.85 kN
							3147 lbf	1764 lbf
UCTH205-150	H204.5-150	UC205	25 mm	200 mm    7-7/8 in	318 mm    12-17/32 in	117 mm    4-39/64 in	14 kN	7.85 kN
							3147 lbf	1764 lbf
UCTH205-16-150	H204.5-150	UC205-16	1 in	200 mm    7-7/8 in	318 mm    12-17/32 in	117 mm    4-39/64 in	14 kN	7.85 kN
							3147 lbf	1764 lbf
UCTH206-18-150	H206-150	UC206-18	1-1/8 in	213 mm    8-3/8 in	336 mm    13-7/32 in	126 mm    4-31/32 in	19.5 kN	11.3 kN
							4383 lbf	2540 lbf
UCTH206-150	H206-150	UC206	30 mm	213 mm    8-3/8 in	336 mm    13-7/32 in	126 mm    4-31/32 in	19.5 kN	11.3 kN
							4383 lbf	2540 lbf
UCTH206-19-150	H206-150	UC206-19	1-3/16 in	213 mm    8-3/8 in	336 mm    13-7/32 in	126 mm    4-31/32 in	19.5 kN	11.3 kN
							4383 lbf	2540 lbf
UCTH206-20-150	H206-150	UC206-20	1-1/4 in	213 mm    8-3/8 in	336 mm    13-7/32 in	126 mm    4-31/32 in	19.5 kN	11.3 kN
							4383 lbf	2540 lbf
UCTH207-20-230	H207-230	UC207-20	1-1/4 in	213 mm    8-3/8 in	430 mm    16-15/16 in	173 mm    6-13/16 in	25.7 kN	15.4 kN
							5777 lbf	3462 lbf
UCTH207-21-230	H207-230	UC207-21	1-5/16 in	213 mm    8-3/8 in	430 mm    16-15/16 in	173 mm    6-13/16 in	25.7 kN	15.4 kN
							5777 lbf	3462 lbf
UCTH207-230	H207-230	UC207	35 mm	213 mm    8-3/8 in	430 mm    16-15/16 in	173 mm    6-13/16 in	25.7 kN	15.4 kN
							5777 lbf	3462 lbf
UCTH207-23-230	H207-230	UC207-23	1-7/16 in	213 mm    8-3/8 in	430 mm    16-15/16 in	173 mm    6-13/16 in	25.7 kN	15.4 kN
							5777 lbf	3462 lbf
UCTH208-24-300	H208.9-300	UC208-24	1-1/2 in	234 mm    9-7/32 in	523 mm    20-19/32 in	217 mm    8-35/64 in	29.1 kN	17.8 kN
							6541 lbf	4001 lbf
UCTH208-25-300	H208.9-300	UC208-25	1-9/16 in	234 mm    9-7/32 in	523 mm    20-19/32 in	217 mm    8-35/64 in	29.1 kN	17.8 kN
							6541 lbf	4001 lbf
UCTH208-300	H208.9-300	UC208	40 mm	234 mm    9-7/32 in	523 mm    20-19/32 in	217 mm    8-35/64 in	29.1 kN	17.8 kN
							6541 lbf	4001 lbf
UCTH209-26-300	H208.9-300	UC209-26	1-5/8 in	234 mm    9-7/32 in	523 mm    20-19/32 in	217 mm    8-35/64 in	34.1 kN	21.3 kN
							7666 lbf	4788 lbf
UCTH209-27-300	H208.9-300	UC209-27	1-11/16 in	234 mm    9-7/32 in	523 mm    20-19/32 in	217 mm    8-35/64 in	34.1 kN	21.3 kN
							7666 lbf	4788 lbf
UCTH209-28-300	H208.9-300	UC209-28	1-3/4 in	234 mm    9-7/32 in	523 mm    20-19/32 in	217 mm    8-35/64 in	34.1 kN	21.3 kN
							7666 lbf	4788 lbf
UCTH209-300	H208.9-300	UC209	45 mm	234 mm    9-7/32 in	523 mm    20-19/32 in	217 mm    8-35/64 in	34.1 kN	21.3 kN
							7666 lbf	4788 lbf
UCTH210-30-300	H210-300	UC210-30	1-7/8 in	234 mm    9-7/32 in	527 mm    20-3/4 in	219 mm    8-5/8 in	35.1 kN	23.3 kN
							7890 lbf	5238 lbf
UCTH210-31-300	H210-300	UC210-31	1-15/16 in	234 mm    9-7/32 in	527 mm    20-3/4 in	219 mm    8-5/8 in	35.1 kN	23.3 kN
							7890 lbf	5238 lbf
UCTH210-300	H210-300	UC210	50 mm	234 mm    9-7/32 in	527 mm    20-3/4 in	219 mm    8-5/8 in	35.1 kN	23.3 kN
							7890 lbf	5238 lbf
UCTH210-32-300	H210-300	UC210-32	2 in	234 mm    9-7/32 in	527 mm    20-3/4 in	219 mm    8-5/8 in	35.1 kN	23.3 kN
							7890 lbf	5238 lbf
UCTH211-32-300	H211-300	UC211-32	2 in	304 mm    11-31/32 in	545 mm    21-15/32 in	230 mm    9-1/16 in	43.4 kN	29.4 kN
							9756 lbf	6609 lbf
UCTH211-34-300	H211-300	UC211-34	2-1/8 in	304 mm    11-31/32 in	545 mm    21-15/32 in	230 mm    9-1/16 in	43.4 kN	29.4 kN
							9756 lbf	6609 lbf
UCTH211-300	H211-300	UC211	55 mm	304 mm    11-31/32 in	545 mm    21-15/32 in	230 mm    9-1/16 in	43.4 kN	29.4 kN
							9756 lbf	6609 lbf
UCTH211-35-300	H211-300	UC211-35	2-3/16 in	304 mm    11-31/32 in	545 mm    21-15/32 in	230 mm    9-1/16 in	43.4 kN	29.4 kN
							9756 lbf	6609 lbf
UCTH212-36-300	H212-300	UC212-36	2-1/4 in	304 mm    11-31/32 in	571 mm    22-15/32 in	243 mm    9-9/16 in	52.4 kN	36.2 kN
							11780 lbf	8138 lbf
UCTH212-300	H212-300	UC212	60 mm	304 mm    11-31/32 in	571 mm    22-15/32 in	243 mm    9-9/16 in	52.4 kN	36.2 kN
							11780 lbf	8138 lbf
UCTH212-38-300	H212-300	UC212-38	2-3/8 in	304 mm    11-31/32 in	571 mm    22-15/32 in	243 mm    9-9/16 in	52.4 kN	36.2 kN
							11780 lbf	8138 lbf
UCTH212-39-300	H212-300	UC212-39	2-7/16 in	304 mm    11-31/32 in	571 mm    22-15/32 in	243 mm    9-9/16 in	52.4 kN	36.2 kN
							11780 lbf	8138 lbf
UCTH213-40-300	H213-300	UC213-40	2-1/2 in	332 mm    13-1/16 in	609 mm    23-31/32 in	260 mm    10-64/15 in	57.2 kN	40.1 kN
							12859 lbf	9014 lbf
UCTH213-300	H213-300	UC213	65 mm	332 mm    13-1/16 in	609 mm    23-31/32 in	260 mm    10-64/15 in	57.2 kN	40.1 kN
							12859 lbf	9014 lbf
