DTII06A6144、DTII06A6144S、DTII06A7144、DTII06A7144S、DTII06A6164、DTII06A6164、DTII06A7164、DTII06A7164S、DTII06A6184、DTII06A6184S、DTII06A7184、DTII06A7184S、DTII06A6204、DTII06A6204S、DTII06A7204、DTII06A7204S、DTII06A7224、DTII06A7224S

发布时间：2025-05-04

说明：Y—右单出轴；    Z—左单出轴；   S—双出轴
B	许用	许用	D	轴承	轴承座	胶      面
	扭矩	合力
mm	kN·N	kN	mm	型号	型号	转动惯量	质量	人字形图号	菱形图号
						kg·m2	kg
500	2.7	49	500	1316	DTⅡZ1208	6	264	DTⅡ01A4083Y Z	DTⅡ01A4084
650	3.5	40			DTⅡZ1308	7.8	298	DTⅡ02A4083Y Z	DTⅡ02A4084
	4.1		630			18.5	347	DTⅡ02A5083Y Z	DTⅡ02A5084
	6.3	59	500	3520	DTⅡZ1210	7.8	393	DTⅡ02A4103Y Z	DTⅡ02A4104
	7.3	80	630		DTⅡZ1310	18.5	451	DTⅡ02A5103Y Z	DTⅡ02A5104
800	4.1	40	500			9.8	453	DTⅡ03A4103Y Z	DTⅡ03A4104
	6	50	630			23.5	521	DTⅡ03A5103Y Z	DTⅡ03A5104
	7		800			25	782	DTⅡ03A6103Y Z	DTⅡ03A6104
	12	80	630	3524	DTⅡZ1212	29.5	776	DTⅡ03A5123Y Z	DTⅡ03A5124
			800		DTⅡZ1312	58	887	DTⅡ03A6123Y Z	DTⅡ03A6124
	20	100	630	3528	DTⅡZ1114	32	920	DTⅡ03A5143Y Z	DTⅡ03A5144
	2×16				DTⅡZ1214	32	967	DTⅡ03A5143S	DTⅡ03A5144S
	20	110	800		DTⅡZ1314	66.3	1095	DTⅡ03A6143Y Z	DTⅡ03A6144
	2×16					66.3	1143	DTⅡ03A6143S	DTⅡ03A6144S
	32	160		3532	DTⅡZ1116	67.5	1253	DTⅡ03A6163Y Z	DTⅡ03A6164
					DTⅡZ1216
	2×23				DTⅡZ1316	67.5	1287	DTⅡ03A6163S	DTⅡ03A6164S
1000	6	40	630	3520	DTⅡZ1210	26.5	585	DTⅡ04A5103Y Z	DTⅡ04A5104
					DTⅡZ1310
	12	73	630	3524	DTⅡZ1212	38.3	857	DTⅡ04A5123Y Z	DTⅡ04A5124
			800		DTⅡZ1312	78.8	964	DTⅡ04A6123Y Z	DTⅡ04A6124
		80	1000			164.8	1162	DTⅡ04A7123Y Z	DTⅡ04A7124
	20	110	800	3528	DTⅡZ1114	80.3	1168	DTⅡ04A6143Y Z	DTⅡ04A6144
					DTⅡZ1214
	2×16				DTⅡZ1314	80.3	1216	DTⅡ04A6143S	DTⅡ04A6144S
	20	110	1000	3528	DTⅡZ1114	166.5	1408	DTⅡ04A7143Y Z	DTⅡ04A7144
					DTⅡZ1214
	2×16				DTⅡZ1314	166.5	1456	DTⅡ04A7143S	DTⅡ04A7144S
	27	160	800	3532	DTⅡZ1116	81.8	1376	DTⅡ04A6163Y Z	DTⅡ04A6164
	2×22				DTⅡZ1216	81.8	1410	DTⅡ04A6163S	DTⅡ04A6164S
	27	170	1000		DTⅡZ1316	168.3	1617	DTⅡ04A7163Y Z	DTⅡ04A7164
	2×22					168.3	1651	DTⅡ04A7163S	DTⅡ04A7164S
	40	190	800	3536	DTⅡZ1118	83.3	1691	DTⅡ04A6183Y Z	DTⅡ04A6184
	2×35				DTⅡZ1218	83.3	1744	DTⅡ04A6183S	DTⅡ04A6184S
	40	210	1000		DTⅡZ1318	170	1928	DTⅡ04A7183Y Z	DTⅡ04A7184
	2×35					170	1981	DTⅡ04A7183S	DTⅡ04A7184S
	52	330		3540	DTⅡZ1120	215.3	2585	DTⅡ04A7203Y Z	DTⅡ04A7204
					DTⅡZ1220
	2×42				DTⅡZ1320	215.3	2677	DTⅡ04A7203S	DTⅡ04A7204S
1200	12	52	630	3524	DTⅡZ1212	46.5	967	DTⅡ05A5123Y Z	DTⅡ05A5124
		80	800		DTⅡZ1312	96	1059	DTⅡ05A6123Y Z	DTⅡ05A6124
			1000			200	1307	DTⅡ05A7123Y Z	DTⅡ05A7124
	20	85	630	3528	DTⅡZ1114	47.3	1156	DTⅡ05A5143Y Z	DTⅡ05A5144
	2×16				DTⅡZ1214	47.3	1204	DTⅡ05A5143S	DTⅡ05A5144S
	20	110	800		DTⅡZ1314	97.8	1297	DTⅡ05A6143Y Z	DTⅡ05A6144
	2×16					97.8	1345	DTⅡ05A6143S	DTⅡ05A6144S
	20	110	1000	3528	DTⅡZ1114	202.5	1567	DTⅡ05A7143Y Z	DTⅡ05A7144
					DTⅡZ1214
	2×16				DTⅡZ1314	202.5	1615	DTⅡ05A7143S	DTⅡ05A7144S
	27	140	800	3532	DTⅡZ1116	99.5	1520	DTⅡ05A6163Y Z	DTⅡ05A6164
	2×22				DTⅡZ1216	99.5	1554	DTⅡ05A6163S	DTⅡ05A6164S
	27	160	1000		DTⅡZ1316	204.8	1780	DTⅡ05A7163Y Z	DTⅡ05A7164
	2×22					204.8	1818	DTⅡ05A7163S	DTⅡ05A7164S
	40	180	800	3536	DTⅡZ1118	101.3	1928	DTⅡ05A6183Y Z	DTⅡ05A6184
	2×32				DTⅡZ1218	101.3	1981	DTⅡ05A6183S	DTⅡ05A6184S
	40	210	1000		DTⅡZ1318	207	2173	DTⅡ05A7183Y Z	DTⅡ05A7184
	2×32					207	2226	DTⅡ05A7183S	DTⅡ05A7184S
	52	230	800	3540	DTⅡZ1120	118.3	2393	DTⅡ05A6203Y Z	DTⅡ05A6204
	2×42				DTⅡZ1220	118.3	2484	DTⅡ05A6203S	DTⅡ05A6204S
	52	290	1000		DTⅡZ1320	262	2813	DTⅡ05A7203Y Z	DTⅡ05A7204
	2×42					262	2903	DTⅡ05A7203S	DTⅡ05A7204S
	66	330		3544	DTⅡZ1122	283	3234	DTⅡ05A7223Y Z	DTⅡ05A7224
					DTⅡZ1222
	2×50				DTⅡZ1322	283	3329	DTⅡ05A7223S	DTⅡ05A7224S
1400	20	100	800	3528	DTⅡZ1114	111.8	1417	DTⅡ06A6143Y Z	DTⅡ06A6144
	2×16				DTⅡZ1214	111.8	1465	DTⅡ06A6143S	DTⅡ06A6144S
	20		100		DTⅡZ1314	202.5	1720	DTⅡ06A7143Y Z	DTⅡ06A7144
	2×16					202.5	1768	DTⅡ06A7143S	DTⅡ06A7144S
	27	130	800	3532	DTⅡZ1116	113.8	1530	DTⅡ05A6163Y Z	DTⅡ06A6164
					DTⅡZ1216
	2×22				DTⅡZ1316	113.8	1564	DTⅡ06A6163S	DTⅡ06A6164
	27	160	1000	3532	DTⅡZ1116	204.8	1919	DTⅡ06A7163Y Z	DTⅡ06A7164
					DTⅡZ1216
	2×22				DTⅡZ1316	204.8	1953	DTⅡ06A7163S	DTⅡ06A7164S
	40	170	800	3536	DTⅡZ1118	115.8	2004	DTⅡ06A6183Y Z	DTⅡ06A6184
	2×32				DTⅡZ1218	115.8	2057	DTⅡ06A6183S	DTⅡ06A6184S
	40	210	1000		DTⅡZ1318	236.5	2287	DTⅡ06A7183Y Z	DTⅡ06A7184
	2×32					236.5	2339	DTⅡ06A7183S	DTⅡ06A7184S
	52		800	3540	DTⅡZ1120	135.3	2553	DTⅡ06A6203Y Z	DTⅡ06A6204
	2×42				DTⅡZ1220	135.3	2632	DTⅡ06A6203S	DTⅡ06A6204S
	52	260	1000		DTⅡZ1320	299.5	2994	DTⅡ06A7203Y Z	DTⅡ06A7204
	2×42					299.5	3082	DTⅡ06A7203S	DTⅡ06A7204S
	66	300		3544	DTⅡZ1122	300	3456	DTⅡ06A7223Y Z	DTⅡ06A7224
					DTⅡZ1222
	2×50				DTⅡZ1322	300	3551	DTⅡ06A7223S	DTⅡ06A7224S

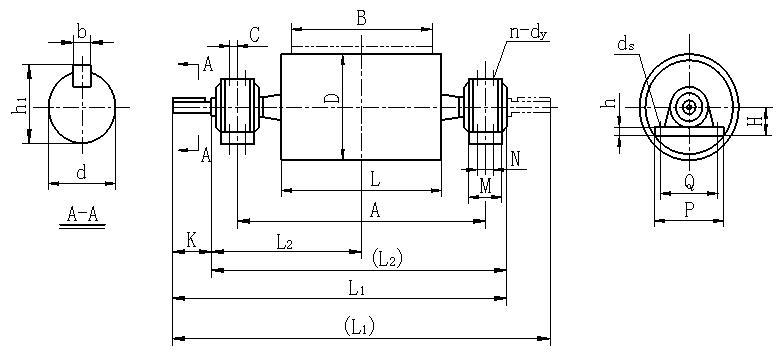

B	D	图号	A	L	L1	L2	K	M	N	Q	P	H	h	h1	d	b	ds	C	n—dy
500	500	DTⅡ01A4081	850	600	1114	495	140	70	-	350	410	120	33	74.5	70	20	M20	22	2-M8×1
		DTⅡ01A4083Y Z
		DTⅡ01A4084
650		DTⅡ02A4081	1000	750	1264	570
		DTⅡ02A4083Y Z
		DTⅡ02A4084
	630	DTⅡ02A5081
		DTⅡ02A5083Y Z
		DTⅡ02A5084
	500	DTⅡ02A4101			1324	590	170	80	-	380	460	135	46	95	90	25	M24	26	4-M8×1
		DTⅡ02A4103Y Z
		DTⅡ02A4104
	630	DTⅡ02A5101
		DTⅡ02A5103Y Z
		DTⅡ02A5104
	500	DTⅡ02A4121	1050		1419	615	210	110	-	440	530	155		116	110	28		32
		DTⅡ02A4123Y Z
		DTⅡ02A4124
	630	DTⅡ02A5121
		DTⅡ02A5123Y Z
		DTⅡ02A5124
800	500	DTⅡ03A4101	1300	950	1624	740	170	80	-	380	460	135		95	90	25		26
		DTⅡ03A4103Y Z
		DTⅡ03A4104
	630	DTⅡ03A5101
		DTⅡ03A5103Y Z
		DTⅡ03A5104
	800	DTⅡ03A6103Y Z
		DTⅡ03A6104
	630	DTⅡ03A5121			1669		210	110	-	440	530	155		116	110	28	M30	32
		DTⅡ03A5123Y Z
		DTⅡ03A5124
	800	DTⅡ03A6123Y Z
		DTⅡ03A6124
	630	DTⅡ03A5141			1724	750	250	120	-	480	570	170	63	137	130	32		37
		DTⅡ03A5143Y Z
		DTⅡ03A5144
		DTⅡ03A5143S			2000	1500
		DTⅡ03A5144S
	800	DTⅡ03A6143Y Z			1724	750
		DTⅡ03A6144
		DTⅡ03A6143S			2000	1500
		DTⅡ03A6144S
		DTⅡ03A6163Y Z	1400		1839	800		200	105	520	640	200	60	158	150	36		43	4-M10×1
		DTⅡ03A6164
		DTⅡ03A6163S			2100	1600
		DTⅡ03A6164S
1000	630	DTⅡ04A5103Y Z	1500	1150	1824	840	170	80	-	380	460	135	46	95	90	25	M24	26	4-M8×1
		DTⅡ04A5104
		DTⅡ04A5123Y Z			1869		210	110	-	440	530	155		116	110	28		32
		DTⅡ04A5124
	800	DTⅡ04A6123Y Z
		DTⅡ04A6124
	1000	DTⅡ04A7123Y Z
		DTⅡ04A7124
	630	DTⅡ04A5143Y Z			1924	850	250	120	-	480	570	170	63	137	130	32	M30	37
		DTⅡ04A5144
		DTⅡ04A5143S			2300	1700
		DTⅡ04A5144S
	800	DTⅡ04A6143Y Z			1924	850
		DTⅡ04A6144
		DTⅡ04A6143S			2300	1700
		DTⅡ04A6144S
	1000	DTⅡ04A7143 Y  Z			1924	850
		DTⅡ04A7144
		DTⅡ04A7143S			2300	1700
		DTⅡ04A7144S
	800	DTⅡ04A6163Y Z	1600		2039	900		200	105	520	640	200	60	158	150	36		43	4-M10×1
		DTⅡ04A6164
		DTⅡ04A6163S			2300	1800
		DTⅡ04A6164S
	1000	DTⅡ04A7163 Y  Z			2039	900
		DTⅡ04A7164
		DTⅡ04A7163S			2300	1800
		DTⅡ04A7164S
	800	DTⅡ04A6183Y Z			2110	910	300	220	120	570	700	220	70	179	170	40		46
		DTⅡ04A6184
		DTⅡ04A6183S			2420	1820
		DTⅡ04A6184S
	1000	DTⅡ04A7183 Y  Z			2110	910
		DTⅡ04A7184
		DTⅡ04A7183S			2420	1820
		DTⅡ04A7184S
	800	DTⅡ04A6203Y Z	1650		2278	975	350	240	140	640	780	240	75	200	190	45		60
		DTⅡ04A6204
		DTⅡ04A6203S			2650	1950
		DTⅡ04A6204S
	1000	DTⅡ04A7203Y Z			2278	975
		DTⅡ04A7204
		DTⅡ04A7203S			2650	1950
		DTⅡ04A7204S
1200	630	DTⅡ05A5123Y Z	1750	1400	2129	975	210	110	-	440	530	155	46	116	110	28	M24	32	4-M8×1
		DTⅡ05A5124
	800	DTⅡ05A6123Y Z
		DTⅡ05A6124
	1000	DTⅡ05A7123Y Z
		DTⅡ05A7124
	630	DTⅡ05A5143Y Z			2174		250	120	-	480	570	170	63	137	130	32	M30	37
		DTⅡ05A5144
		DTⅡ05A5143S			2450	1950
		DTⅡ05A5144S
	800	DTⅡ05A6143Y Z			2174	975
		DTⅡ05A6144
		DTⅡ05A6143S			2450	1950
		DTⅡ05A6144S
	1000	DTⅡ05A7143Y Z			2174	975
		DTⅡ05A7144
	1000	DTⅡ05A7143S	1750	1400	2450	1950	250	120	-	480	570	170	63	137	130	32	M30	37	4-M8×1
		DTⅡ05A7144S
	800	DTⅡ05A6163Y Z	1850		2289	1025		200	105	520	640	200	60	158	150	36	M30	43	4-M10×1
		DTⅡ05A6164
		DTⅡ05A6163S			2550	2050
		DTⅡ05A6164S
	1000	DTⅡ05A7163 Y  Z			2289	1025
		DTⅡ05A7164
		DTⅡ05A7163S			2550	2050
		DTⅡ05A7164S
	800	DTⅡ05A6183Y Z			2360	1035	300	220	120	570	700	220	70	179	170	40		46
		DTⅡ05A6184
		DTⅡ05A6183S			2670	2070
		DTⅡ05A6184S
	1000	DTⅡ05A7183 Y  Z			2360	1035
		DTⅡ05A7184
		DTⅡ05A7183S			2670	2070
		DTⅡ05A7184S
	800	DTⅡ05A6203Y Z	1900		2528	1100	350	240	140	640	780	240	75	200	190	45		60
		DTⅡ05A6204
		DTⅡ05A6203S			2900	2200
		DTⅡ05A6204S
	1000	DTⅡ05A7203Y Z			2528	1100
		DTⅡ05A7204
		DTⅡ05A7203S			2900	2200
		DTⅡ05A7204S
		DTⅡ05A7223Y Z			2533	1100		250		720	880	270	80	210	200	45	M36	65
		DTⅡ05A7224
		DTⅡ05A7223S			2900	2200
		DTⅡ05A7224S
1400	800	DTⅡ06A6143Y Z	2050	1600	2474	1125	250	120	-	480	570	170	63	137	130	32	M30	37	4-M8×1
		DTⅡ06A6144
		DTⅡ06A6143S			2750	2250
		DTⅡ06A6144S
	1000	DTⅡ06A7143Y Z			2474	1125
		DTⅡ06A7144
		DTⅡ06A7143S			2750	2250
		DTⅡ06A7144S
	800	DTⅡ06A6163Y Z			2489	1125		200	105	520	640	200	60	158	150	36		43	4-M10×1
		DTⅡ06A6164
		DTⅡ06A6163S			2750	2250
		DTⅡ06A6164S
	1000	DTⅡ06A7163Y Z			2489	1125
		DTⅡ06A7164
		DTⅡ06A7163S			2750	2250
		DTⅡ06A7164S
	800	DTⅡ06A6183Y Z			2560	1135	300	220	120	570	700	220	70	179	170	40		46
		DTⅡ06A6184
		DTⅡ06A6183S			2870	2270
		DTⅡ06A6184S
	1000	DTⅡ06A7183Y Z			2560	1135
		DTⅡ06A7184
		DTⅡ06A7183S			2870	2270
		DTⅡ06A7184S
	800	DTⅡ06A6203Y Z	2100		2728	1200	350	240	140	640	780	240	75	200	190	45		60
		DTⅡ06A6204
		DTⅡ06A6203S			3100	2400
		DTⅡ06A6204S
	1000	DTⅡ06A7203Y Z			2728	1200
		DTⅡ06A7204
		DTⅡ06A7203S			3100	2400
		DTⅡ06A7204S
		DTⅡ06A7223Y Z			2733	1200		250		720	880	270	80	210	200		M36	65
		DTⅡ06A7224
		DTⅡ06A7223S			3100	2400
		DTⅡ06A7224S
