LR50/8-2RSR高精度导轨轴承、LR5000-2RS高精度导轨轴承、LR5001-2RS高精度导轨轴承、LR5002-2RS高精度导轨轴承、LR5003-2RS高精度导轨轴承、LR5004-2RS高精度导轨轴承、LR5005-2RS高精度导轨轴承、LR5006-2RS高精度导轨轴承、LR5007-2RS高精度导轨轴承、LR5200-2RS高精度导轨轴承、LR5200-X-2Z高精度导轨轴承、LR5200-2Z高精度导轨轴承
发布时间：2025-05-04
|

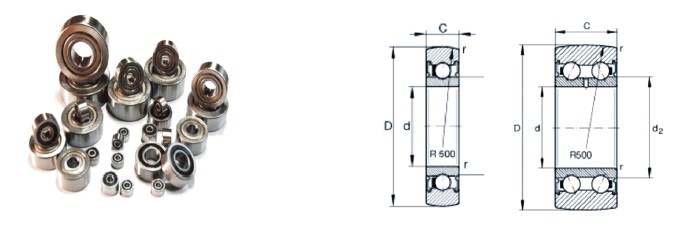

型号 Designation |
尺寸 Dimensions |
基本额定载荷 Basic Load Ratings |
极限转速 Limiting Speed |
重量 Mass | ||||||
| d | D | B | C |
r min. |
动 Cr Dynamic |
静 Cor Static | ||||
| seals | shields | |||||||||
| BEARINGPOWER | mm | kN | *1000Rpm | g | ||||||
| LR200-X-2RS | 10 | 32 | 9 | 9 | 0.6 | 4.35 | 2.13 | 13 | 17 | 50 |
| LR200-2RS | 10 | 32 | 9 | 9 | 0.6 | 4.35 | 2.13 | 13 | 17 | 50 |
| LR201-X-2RS | 12 | 35 | 10 | 10 | 0.6 | 5.6 | 2.7 | 12 | 15 | 50 |
| LR201-2RS | 12 | 35 | 10 | 10 | 0.6 | 5.6 | 2.7 | 12 | 15 | 50 |
| LR201-15-X-2RS | 12 | 35 | 15 | 10 | 0.6 | 5.6 | 2.7 | 12 | 15 | 70 |
| LR201-15-2RS | 12 | 35 | 15 | 10 | 0.6 | 5.6 | 2.7 | 12 | 15 | 70 |
| LR202-X-2RS | 15 | 40 | 11 | 11 | 0.6 | 6.5 | 3.3 | 11 | 13 | 70 |
| LR202-2RS | 15 | 40 | 11 | 11 | 0.6 | 6.5 | 3.3 | 11 | 13 | 70 |
| LR202-14-X-2RS | 15 | 40 | 14.4 | 11 | 0.6 | 6.5 | 3.3 | 11 | 13 | 80 |
| LR202-14-2RS | 15 | 40 | 14.4 | 11 | 0.6 | 6.5 | 3.3 | 11 | 13 | 80 |
| LR203-X-2RS | 17 | 47 | 12 | 12 | 0.6 | 8.4 | 4.4 | 9 | 12 | 110 |
| LR203-2RS | 17 | 47 | 12 | 12 | 0.6 | 8.4 | 4.4 | 9 | 12 | 110 |
| LR204-X-2RS | 20 | 52 | 14 | 14 | 1 | 10.5 | 5.6 | 8 | 10 | 150 |
| LR204-2RS | 20 | 52 | 14 | 14 | 1 | 10.5 | 5.6 | 8 | 10 | 150 |
| LR205-X-2RS | 25 | 62 | 15 | 15 | 1 | 12.5 | 7.1 | 7 | 8.5 | 230 |
| LR205-2RS | 25 | 62 | 15 | 15 | 1 | 12.5 | 7.1 | 7 | 8.5 | 230 |
| LR206-X-2RS | 30 | 72 | 16 | 16 | 1 | 16.6 | 9.6 | 5.5 | 7.5 | 330 |
| LR206-2RS | 30 | 72 | 16 | 16 | 1 | 16.6 | 9.6 | 5.5 | 7.5 | 330 |
| LR207-X-2RS | 35 | 80 | 17 | 17 | 1.1 | 20.2 | 11.9 | 4.5 | 6.3 | 400 |
| LR207-2RS | 35 | 80 | 17 | 17 | 1.1 | 20.2 | 11.9 | 4.5 | 6.3 | 400 |
| LR208-X-2RS | 40 | 85 | 18 | 18 | 1.1 | 22.8 | 13.6 | 4 | 5 | 450 |
| LR208-2RS | 40 | 85 | 18 | 18 | 1.1 | 22.8 | 13.6 | 4 | 5 | 450 |
| LR209-X-2RS | 45 | 90 | 19 | 19 | 1.1 | 22.5 | 13.7 | 3.6 | 4.5 | 500 |
| LR209-2RS | 45 | 90 | 19 | 19 | 1.1 | 22.5 | 13.7 | 3.6 | 4.5 | 500 |
| LR50/5-2RSR | 5 | 17 | 7 | 7 | 0.2 | 1.65 | 0.95 | 12 | 16 | 10 |
| LR50/6-2RSR | 6 | 19 | 9 | 9 | 0.3 | 2.65 | 1.31 | 11 | 15 | 20 |
| LR50/7-2RSR | 7 | 22 | 10 | 10 | 0.3 | 3.3 | 1.69 | 10 | 14 | 20 |
| LR50/8-2RSR | 8 | 24 | 11 | 11 | 0.3 | 4.2 | 2.36 | 10 | 14 | 30 |
| LR5000-2RS | 10 | 28 | 12 | 12 | 0.3 | 4.75 | 2.85 | 9 | 13 | 30 |
| LR5001-2RS | 12 | 30 | 12 | 12 | 0.3 | 4.95 | 3.1 | 8.5 | 11 | 30 |
| LR5002-2RS | 15 | 35 | 13 | 13 | 0.3 | 6.5 | 4.1 | 7 | 10 | 50 |
| LR5003-2RS | 17 | 40 | 14 | 14 | 0.3 | 7.7 | 5.2 | 6 | 9 | 70 |
| LR5004-2RS | 20 | 47 | 16 | 16 | 0.6 | 11.5 | 7.7 | 5.5 | 8 | 120 |
| LR5005-2RS | 25 | 52 | 16 | 16 | 0.6 | 11.6 | 8.1 | 4.7 | 7 | 150 |
| LR5006-2RS | 30 | 62 | 19 | 19 | 1 | 17.2 | 11.1 | 4 | 6 | 250 |
| LR5007-2RS | 35 | 68 | 20 | 20 | 1 | 17.6 | 13.1 | 4 | 5.3 | 300 |
| LR5200-2RS | 10 | 32 | 14 | 14 | 0.6 | 6.8 | 4.05 | 8 | 11 | 70 |
| LR5200-X-2Z | 10 | 32 | 14 | 14 | 0.6 | 6.8 | 4.05 | 8 | 11 | 70 |
| LR5200-2Z | 10 | 32 | 14 | 14 | 0.6 | 6.8 | 4.05 | 8 | 11 | 70 |
| LR5201-2RS | 12 | 35 | 15.9 | 15.9 | 0.6 | 8.6 | 5.1 | 7.5 | 10 | 80 |
| LR5201-X-2Z | 12 | 35 | 15.9 | 15.9 | 0.6 | 8.6 | 5.1 | 7.5 | 10 | 80 |
| LR5201-2Z | 12 | 35 | 15.9 | 15.9 | 0.6 | 8.6 | 5.1 | 7.5 | 10 | 80 |
| LR5202-2RS | 15 | 40 | 15.9 | 15.9 | 0.6 | 9.8 | 6.2 | 7 | 10 | 110 |
| LR5202-X-2Z | 15 | 40 | 15.9 | 15.9 | 0.6 | 9.8 | 6.2 | 7 | 10 | 110 |
| LR5202-2Z | 15 | 40 | 15.9 | 15.9 | 0.6 | 9.8 | 6.2 | 7 | 10 | 110 |
| LR5203-2RS | 17 | 47 | 17.5 | 17.5 | 0.6 | 12.6 | 8.2 | 5.5 | 7.5 | 170 |
| LR5203-X-2Z | 17 | 47 | 17.5 | 17.5 | 0.6 | 12.6 | 8.2 | 5.5 | 7.5 | 170 |
| LR5203-2Z | 17 | 47 | 17.5 | 17.5 | 0.6 | 12.6 | 8.2 | 5.5 | 7.5 | 170 |
| LR5204-2RS | 20 | 52 | 20.6 | 20.6 | 1 | 15.8 | 10.5 | 5 | 7 | 230 |
| LR5204-X-2Z | 20 | 52 | 20.6 | 20.6 | 1 | 15.8 | 10.5 | 5 | 7 | 230 |
| LR5204-2Z | 20 | 52 | 20.6 | 20.6 | 1 | 15.8 | 10.5 | 5 | 7 | 230 |
| LR5205-2RS | 25 | 62 | 20.6 | 20.6 | 1 | 18.5 | 13 | 4.5 | 6.5 | 340 |
| LR5205-X-2Z | 25 | 62 | 20.6 | 20.6 | 1 | 18.5 | 13 | 4.5 | 6.5 | 340 |
| LR5205-2Z | 25 | 62 | 20.6 | 20.6 | 1 | 18.5 | 13 | 4.5 | 6.5 | 340 |
| LR5206-2RS | 30 | 72 | 23.8 | 23.8 | 1 | 24.6 | 21.4 | 3.5 | 5 | 510 |
| LR5206-X-2Z | 30 | 72 | 23.8 | 23.8 | 1 | 24.6 | 21.4 | 3.5 | 5 | 510 |
| LR5206-2Z | 30 | 72 | 23.8 | 23.8 | 1 | 24.6 | 21.4 | 3.5 | 5 | 510 |
| LR5207-2RS | 35 | 80 | 27 | 27 | 1.1 | 30.5 | 22.4 | 2.8 | 3.9 | 660 |
| LR5207-X-2Z | 35 | 80 | 27 | 27 | 1.1 | 30.5 | 22.4 | 2.8 | 3.9 | 660 |
| LR5207-2Z | 35 | 80 | 27 | 27 | 1.1 | 30.5 | 22.4 | 2.8 | 3.9 | 660 |
| LR5208-2RS | 40 | 85 | 30.2 | 30.2 | 1.1 | 34.5 | 25.5 | 2.5 | 3.5 | 750 |
| LR5208-X-2Z | 40 | 85 | 30.2 | 30.2 | 1.1 | 34.5 | 25.5 | 2.5 | 3.5 | 750 |
| LR5208-2Z | 40 | 85 | 30.2 | 30.2 | 1.1 | 34.5 | 25.5 | 2.5 | 3.5 | 750 |
| LR5302-2RS | 15 | 47 | 19 | 19 | 1 | 14.6 | 9.2 | 6.5 | 10 | 150 |
| LR5302-2Z | 15 | 47 | 19 | 19 | 1 | 14.6 | 9.2 | 6.5 | 10 | 150 |
| LR5303-2RS | 17 | 52 | 22.2 | 22.2 | 1 | 17.2 | 11.1 | 4.7 | 6.5 | 210 |
| LR5303-2Z | 17 | 52 | 22.2 | 22.2 | 1 | 17.2 | 11.1 | 4.7 | 6.5 | 210 |
| LR5304-2RS | 20 | 62 | 22.2 | 22.2 | 1.1 | 21.1 | 14.5 | 4.5 | 6.5 | 340 |
| LR5304-2Z | 20 | 62 | 22.2 | 22.2 | 1.1 | 21.1 | 14.5 | 4.5 | 6.5 | 340 |
| LR5305-2RS | 25 | 72 | 25.4 | 25.4 | 1.1 | 27.5 | 19.5 | 3.9 | 5.5 | 500 |
| LR5305-2Z | 25 | 72 | 25.4 | 25.4 | 1.1 | 27.5 | 19.5 | 3.9 | 5.5 | 500 |
| LR5306-2RS | 30 | 80 | 30.2 | 30.2 | 1.1 | 36.5 | 26.5 | 3.1 | 4.3 | 670 |
| LR5306-2Z | 30 | 80 | 30.2 | 30.2 | 1.1 | 36.5 | 26.5 | 3.1 | 4.3 | 670 |
| LR5307-2RS | 35 | 90 | 34.9 | 34.9 | 1.5 | 44.5 | 33 | 2.5 | 3.6 | 970 |
| LR5307-2Z | 35 | 90 | 34.9 | 34.9 | 1.5 | 44.5 | 33 | 2.5 | 3.6 | 970 |
| LR5308-2RS | 40 | 100 | 36.5 | 36.5 | 1.5 | 56 | 42 | 2.3 | 3.3 | 1200 |
| LR5308-2Z | 40 | 100 | 36.5 | 36.5 | 1.5 | 56 | 42 | 2.3 | 3.3 | 1200 |
