搜轴承 -- 黑板报 -- DKFZJ2506-4滚珠丝杠、DKFZJ2506-5滚珠丝杠、DKFZJ2510-4滚�...

DKFZJ2506-4滚珠丝杠、DKFZJ2506-5滚珠丝杠、DKFZJ2510-4滚珠丝杠、DKFZJ3206-5滚珠丝杠、DKFZJ3206-6滚珠丝杠、DKFZJ3210-4滚珠丝杠、DKFZJ3210-5滚珠丝杠、DKFZJ3212-4滚珠丝杠、DKFZJ3212-5滚珠丝杠、DKFZJ4010-5滚珠丝杠、DKFZJ4010-6滚珠丝杠、DKFZJ4012-5滚珠丝杠、DKFZJ4012-6滚珠丝杠、DKFZJ4016-5滚珠丝杠

发布时间：2025-05-04

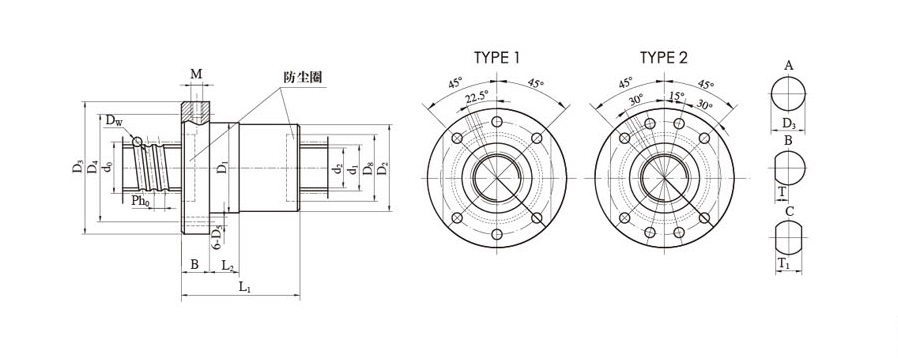

CODE	d0	Ph0	Xd1	Xd2	Dw	n	CaKN	C0aKN	Kc	D1	D2	L2	D3	B	D4	D5	M	L1
DKFZJ2506-4	25	6	24	21.1	3.969	4	16.2	39.4	511	45	45	10	65	10	54	6.6	M6	50
DKFZJ2506-5	25	6	24	21.1	3.969	5	19.9	50	640	45	45	10	65	10	54	6.6	M6	56
DKFZJ2510-4	25	10	24	21.1	3.969	4	16.1	39.3	505	45	45	15	65	11	54	6.6	M6	65
DKFZJ3206-5	32	6	31	28.1	3.969	5	25.4	67.6	832	50	50	10	80	12	65	9	M6	58
DKFZJ3206-6	32	6	31	28.1	3.969	6	30	81.8	990	50	50	10	80	12	65	9	M6	64
DKFZJ3210-4	32	10	31	26.4	6.35	4	33.7	81.2	662	62	62	15	92	14	77	9	M6	73
DKFZJ3210-5	32	10	31	26.4	6.35	5	41.6	103.7	830	62	62	15	92	14	77	9	M6	83
DKFZJ3212-4	32	12	31	26.4	6.35	4	33.8	81.4	663	62	62	15	92	14	77	9	M6	81
DKFZJ3212-5	32	12	31	26.4	6.35	5	41.6	103.9	831	62	62	15	92	14	77	9	M6	93
DKFZJ4010-5	40	10	39	34.4	6.35	5	46.9	131.2	1013	70	70	20	100	14	85	9	M8X1	83
DKFZJ4010-6	40	10	39	34.4	6.35	6	55.3	158.8	1215	70	70	20	100	14	85	9	M8X1	93
DKFZJ4012-5	40	12	39	34.7	6.35	5	46.9	131.3	1011	70	70	20	100	14	85	9	M8X1	92
DKFZJ4012-6	40	12	39	34.7	6.35	6	55.3	158.8	1214	70	70	20	100	14	85	9	M8X1	104
DKFZJ4016-5	40	16	39	34.7	6.35	5	46.5	131.3	1004	70	70	30	100	14	85	9	M8X1	113
DKFZJ4016-6	40	16	39	34.7	6.35	6	55.1	158.9	1206	70	70	30	100	14	85	9	M8X1	129
DKFZJ4020-5	40	20	39	34.7	6.35	5	46.7	131.3	1004	70	70	30	100	14	85	9	M8X1	132
DKFZJ4020-6	40	20	39	34.7	6.35	6	55	158.9	1205	70	70	30	100	14	85	9	M8X1	152
DKFZJ40224	40	25	39	34.7	6.35	4	37.9	103.7	794	70	70	30	100	14	85	9	M8X1	133
DKFZJ40225	40	25	39	34.7	6.35	5	46.5	131.3	995	70	70	30	100	14	85	9	M8X1	158
DKFZJ5010-5	50	10	49	44.4	6.35	5	52.2	165	1219	82	82	20	118	16	100	11	M8X1	91
DKFZJ5010-6	50	10	49	44.4	6.35	6	61.5	199.6	1461	82	82	20	118	16	100	11	M8X1	101
DKFZJ5012-5	50	12	49	44.4	6.35	5	52.2	165	1219	82	82	20	118	16	100	11	M8X1	100
DKFZJ5012-6	50	12	49	44.4	6.35	6	61.5	199.6	1461	82	82	20	118	16	100	11	M8X1	112
DKFZJ5016-5	50	16	49	44.4	6.35	5	52.5	165.5	1226	82	82	30	118	16	100	11	M8X1	117
DKFZJ5016-6	50	16	49	44.4	6.35	6	61.5	200.2	1470	82	82	30	118	16	100	11	M8X1	133
DKFZJ5020-5	50	20	49	44.4	6.35	5	52.1	165.7	1215	82	82	30	118	16	100	11	M8X1	139
DKFZJ5020-6	50	20	49	44.4	6.35	6	61.4	200.5	1457	82	82	30	118	16	100	11	M8X1	159
DKFZJ50224	50	25	49	44.4	6.35	4	42.3	130.4	966	82	82	30	118	16	100	11	M8X1	139
DKFZJ50225	50	25	49	44.4	6.35	5	52	165.7	1209	82	82	30	118	16	100	11	M8X1	164
DKFZJ5030-4	50	30	49	44.4	6.35	4	42.3	131	960	82	82	30	118	16	100	11	M8X1	159
DKFZJ5030-5	50	30	49	44.4	6.35	5	51.8	165.7	1201	82	82	30	118	16	100	11	M8X1	189
DKFZJ6310-5	63	10	61	56.4	6.35	5	56.8	202.5	1434	95	95	20	135	22	115	13.5	M8X1	91
DKFZJ6310-6	63	10	61	56.4	6.35	6	66.9	244.8	1718	95	95	20	135	22	115	13.5	M8X1	101
DKFZJ6312-5	63	12	61	56.4	6.35	5	56.8	202.5	1457	95	95	20	135	22	115	13.5	M8X1	99
DKFZJ6312-6	63	12	61	56.4	6.35	6	66.9	244.8	1747	95	95	20	135	22	115	13.5	M8X1	111
DKFZJ6312-5	63	12	61	55.3	7.938	5	102.3	358.8	1952	98	98	20	138	20	118	13.5	M8X1	105
DKFZJ6312-6	63	12	61	55.3	7.938	6	120.5	433.8	2340	98	98	20	138	20	118	13.5	M8X1	117
DKFZJ6316-5	63	16	61	56.4	6.35	5	56.8	202.5	1457	95	95	30	135	22	115	13.5	M8X1	119
DKFZJ6316-6	63	16	61	56.4	6.35	6	66.9	244.8	1747	95	95	30	135	22	115	13.5	M8X1	135
DKFZJ6316-5	63	16	61	53.9	10	5	76.9	234.5	1528	107	107	30	147	20	127	13.5	M8X1	134
DKFZJ6316-6	63	16	61	53.9	10	6	90.6	283.6	1818	107	107	30	147	20	127	13.5	M8X1	150
DKFZJ6320-5	63	20	61	56.4	6.35	5	56.9	204.3	1456	95	95	40	135	22	115	13.5	M8X1	138
DKFZJ6320-6	63	20	61	56.4	6.35	6	67.1	247.4	1745	95	95	40	135	22	115	13.5	M8X1	158
DKFZJ6320-5	63	20	61	53.9	10	5	138.1	447.2	1985	107	107	40	147	20	127	13.5	M8X1	153
DKFZJ6320-6	63	20	61	53.9	10	6	162.8	541.3	2381	107	107	40	147	20	127	13.5	M8X1	173
DKFZJ6325-4	63	25	61	56.4	6.35	4	46.8	163.1	1160	95	95	40	135	22	115	13.5	M8X1	138
DKFZJ6325-5	63	25	61	56.4	6.35	5	57.3	206.3	1451	95	95	40	135	22	115	13.5	M8X1	163
DKFZJ6325-4	63	25	61	53.9	10	4	112.6	353.3	1580	107	107	40	147	20	127	13.5	M8X1	153
DKFZJ6325-5	63	25	61	53.9	10	5	137.9	447.3	1979	107	107	40	147	20	127	13.5	M8X1	178
DKFZJ6330-4	63	30	61	56.4	6.35	4	46.7	163.1	1252	95	95	40	135	22	115	13.5	M8X1	158
DKFZJ6330-5	63	30	61	56.4	6.35	5	57.1	206.2	1441	95	95	40	135	22	115	13.5	M8X1	188
DKFZJ6330-4	63	30	61	53.9	10	4	112.4	353.4	1574	107	107	40	147	20	127	13.5	M8X1	172
DKFZJ6330-5	63	30	61	53.9	10	5	137.6	447.4	1971	107	107	40	147	20	127	13.5	M8X1	202
DKFZJ6340-4	63	40	61	56.4	6.35	4	46.5	163.2	1131	95	95	40	135	22	115	13.5	M8X1	198
DKFZJ6340-5	63	40	61	56.4	6.35	5	56.8	206.4	1415	95	95	40	135	22	115	13.5	M8X1	238
DKFZJ6340-4	63	40	61	53.9	10	4	111.8	353.4	1559	107	107	40	147	20	127	13.5	M8X1	210
DKFZJ6340-5	63	40	61	53.9	10	5	137.5	447.4	1952	107	107	40	147	20	127	13.5	M8X1	250
