40TAB09DF(DB)-2NK角接触球轴承、40TAB09DF(DB)-2LR角接触球轴承、45TAB07DF(DB)角接触球轴承、45TAB10DF(DB)角接触球轴承、50TAB10DF(DB)角接触球轴承、55TAB10DF(DB)角接触球轴承、55TAB12DF(DB)角接触球轴承、60TAB12DF(DB)角接触球轴承
发布时间：2025-06-20
 |

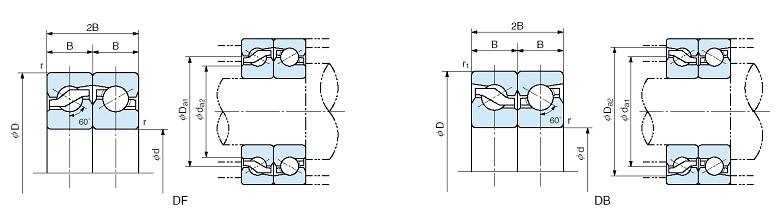

| 軸 承 型 番 | 主 要 寸 法(mm) | 基本動 額定荷重 Ca(N) |
軸向 限定荷重 Coa(N) |
容許轉速(rpm) | 啟動扭力 (N‧cm) |
裝配相關尺寸(mm) | 重量 (kg) | ||||||||
| d | D | B | 2B | r (min) |
r1 (min) |
da1 | da2 | Da1 | Da2 | ||||||
| 15TAB04DF(DB) | 15 | 47 | 15 | 30 | 1 | 0.6 | 25900 | 32000 | 6300 | 15 | 33.7 | 26.8 | 33.5 | 41 | 0.14 |
| 15TAB04DF(DB)-2NK | 15 | 47 | 15 | 30 | 1 | 0.6 | 25900 | 32000 | 6300 | - | 33.7 | 26.8 | 35 | 41.9 | 0.14 |
| 15TAB04DF(DB)-2LR | 15 | 47 | 15 | 30 | 1 | 0.6 | 25900 | 32000 | 4400 | - | 33.7 | 26.8 | 35 | 41.9 | 0.14 |
| 17TAB04DF(DB) | 17 | 47 | 15 | 30 | 1 | 0.6 | 25900 | 32000 | 6300 | 15 | 33.7 | 26.8 | 33.5 | 41 | 0.13 |
| 17TAB04DF(DB)-2NK | 17 | 47 | 15 | 30 | 1 | 0.6 | 25900 | 32000 | 6300 | - | 33.7 | 26.8 | 35 | 41.9 | 0.13 |
| 17TAB04DF(DB)-2LR | 17 | 47 | 15 | 30 | 1 | 0.6 | 25900 | 32000 | 4400 | - | 33.7 | 26.8 | 35 | 41.9 | 0.13 |
| 20TAB04DF(DB) | 20 | 47 | 15 | 30 | 1 | 0.6 | 25900 | 32000 | 6300 | 15 | 33.7 | 26.8 | 33.5 | 41 | 0.12 |
| 20TAB04DF(DB)-2NK | 20 | 47 | 15 | 30 | 1 | 0.6 | 25900 | 32000 | 6300 | - | 33.7 | 26.8 | 35 | 41.9 | 0.12 |
| 20TAB04DF(DB)-2LR | 20 | 47 | 15 | 30 | 1 | 0.6 | 25900 | 32000 | 4400 | - | 33.7 | 26.8 | 35 | 41.9 | 0.12 |
| 25TAB06DF(DB) | 25 | 62 | 15 | 30 | 1 | 0.6 | 29900 | 46400 | 4650 | 20 | 46.2 | 39.7 | 46 | 53.4 | 0.24 |
| 25TAB06DF(DB)-2NK | 25 | 62 | 15 | 30 | 1 | 0.6 | 29900 | 46400 | 4650 | - | 46.2 | 39.7 | 47.5 | 54.9 | 0.24 |
| 25TAB06DF(DB)-2LR | 25 | 62 | 15 | 30 | 1 | 0.6 | 29900 | 46400 | 3250 | - | 46.2 | 39.7 | 47.5 | 54.9 | 0.24 |
| 30TAB06DF(DB) | 30 | 62 | 15 | 30 | 1 | 0.6 | 29900 | 46400 | 4650 | 20 | 46.2 | 39.7 | 46 | 53.4 | 0.21 |
| 30TAB06DF(DB)-2NK | 30 | 62 | 15 | 30 | 1 | 0.6 | 29900 | 46400 | 4650 | - | 46.2 | 39.7 | 47.5 | 54.9 | 0.21 |
| 30TAB06DF(DB)-2LR | 30 | 62 | 15 | 30 | 1 | 0.6 | 29900 | 46400 | 3250 | - | 46.2 | 39.7 | 47.5 | 54.9 | 0.21 |
| 35TAB07DF(DB) | 35 | 72 | 15 | 30 | 1 | 0.6 | 32500 | 54300 | 3750 | 25 | 56.2 | 49.7 | 56 | 63.4 | 0.29 |
| 35TAB07DF(DB)-2NK | 35 | 72 | 15 | 30 | 1 | 0.6 | 32500 | 54300 | 3750 | - | 56.2 | 49.7 | 57.5 | 64.9 | 0.29 |
| 35TAB07DF(DB)-2LR | 35 | 72 | 15 | 30 | 1 | 0.6 | 32500 | 54300 | 2600 | - | 56.2 | 49.7 | 57.5 | 64.9 | 0.29 |
| 40TAB07DF(DB) | 40 | 72 | 15 | 30 | 1 | 0.6 | 32500 | 54300 | 3750 | 25 | 56.2 | 49.7 | 56 | 63.4 | 0.26 |
| 40TAB07DF(DB)-2NK | 40 | 72 | 15 | 30 | 1 | 0.6 | 32500 | 54300 | 3750 | - | 56.2 | 49.7 | 57.5 | 64.9 | 0.26 |
| 40TAB07DF(DB)-2LR | 40 | 72 | 15 | 30 | 1 | 0.6 | 32500 | 54300 | 2600 | - | 56.2 | 49.7 | 57.5 | 64.9 | 0.26 |
| 40TAB09DF(DB) | 40 | 90 | 20 | 40 | 1 | 0.6 | 65000 | 101000 | 3150 | 30 | 67.2 | 57.2 | 67 | 78.4 | 0.62 |
| 40TAB09DF(DB)-2NK | 40 | 90 | 20 | 40 | 1 | 0.6 | 65000 | 101000 | 3150 | - | 67.2 | 57.2 | 68.5 | 79.9 | 0.62 |
| 40TAB09DF(DB)-2LR | 40 | 90 | 20 | 40 | 1 | 0.6 | 65000 | 101000 | 2200 | - | 67.2 | 57.2 | 68.5 | 79.9 | 0.62 |
| 45TAB07DF(DB) | 45 | 75 | 15 | 30 | 1 | 0.6 | 33500 | 59500 | 3400 | 50 | 61.7 | 55.2 | 61.5 | 68.9 | 0.25 |
| 45TAB10DF(DB) | 45 | 100 | 20 | 40 | 1 | 0.6 | 68000 | 113000 | 2850 | 60 | 74.2 | 64.2 | 74 | 85.4 | 0.79 |
| 50TAB10DF(DB) | 50 | 100 | 20 | 40 | 1 | 0.6 | 69500 | 119000 | 2700 | 65 | 78.2 | 68.2 | 78 | 89.4 | 0.72 |
| 55TAB10DF(DB) | 55 | 100 | 20 | 40 | 1 | 0.6 | 69500 | 119000 | 2700 | 65 | 78.2 | 68.2 | 78 | 89.4 | 0.65 |
| 55TAB12DF(DB) | 55 | 120 | 20 | 40 | 1 | 0.6 | 73000 | 137000 | 2300 | 70 | 92.2 | 82.2 | 92 | 103.4 | 1.15 |
| 60TAB12DF(DB) | 60 | 120 | 20 | 40 | 1 | 0.6 | 73000 | 137000 | 2300 | 70 | 92.2 | 82.2 | 92 | 103.4 | 1.08 |
