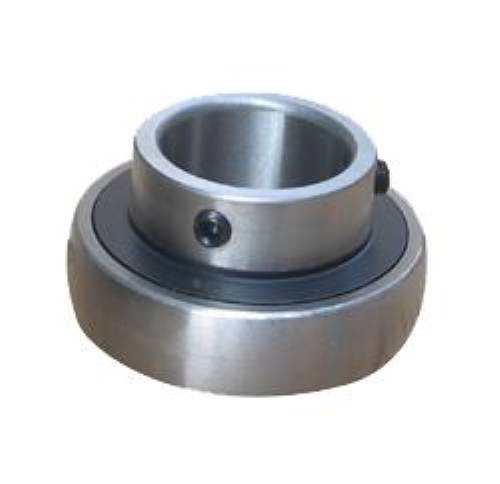

UCX13-40外球面轴承、UCX13外球面轴承、UCX14-44外球面轴承、UCX14外球面轴承、UCX15外球面轴承、UCX15-48外球面轴承、UCX16外球面轴承、UCX17-52外球面轴承、UCX17外球面轴承、UCX18-56外球面轴承、UCX18外球面轴承、UCX20外球面轴承、UCX20-64外球面轴承

发布时间：2026-09-27

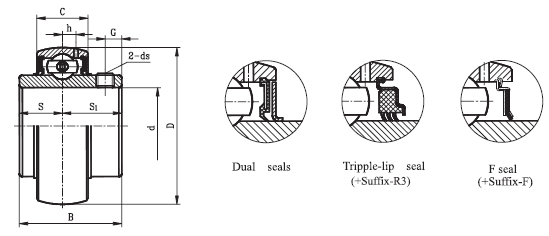

Bearing No.	Shaft Dia.		Dimensions(mm)/(in.)								Basicload rating(N)		Mass(kg)
	d		D	B	C	S	S1	G	h	ds	Dynamic Cr	Static Cor
	(in.)	(mm)
UCX05-14	7/8		62	38.1	19	15.9	22.2	6	5	1/4-28UNF	19500	11200	0.42
UCX05-15	15/16		62	38.1	19	15.9	22.2	6	5	1/4-28UNF	19550	11200	0.40
UCX05		25	62	38.1	19	15.9	22.2	6	5	M6X1	19500	11200	0.39
UCX05-16	1		62	38.1	19	15.9	22.2	6	5	1/4-28UNF	19500	11200	0.38
UCX06-18	1-1/8		72	42.9	20	17.5	25.4	6.5	5.8	5/16-24UNF	25700	15200	0.58
UCX06		30	72	42.9	20	17.5	25.4	6.5	5.8	M8X1	25700	15200	0.58
UCX06-19	1-3/16		72	42.9	20	17.5	25.4	6.5	5.8	5/16-24UNF	25700	15200	0.58
UCX06-20	1-1/4		72	42.9	20	17.5	25.4	6.5	5.8	5/16-24UNF	25700	15200	0.55
UCX07-22	1-3/8		80	49.2	21	19	30.2	8	6.3	5/16-24UNF	29600	18200	0.75
UCX07		35	80	49.2	21	19	30.2	8	6.3	M8X1	29600	18200	0.75
UCX07-23	1-7/16		80	49.2	20	17.5	25.4	6.5	5.8	5/16-24UNF	29600	18200	0.72
UCX08-24	1-1/2		85	49.2	22	19	30.2	8	6.8	5/16-24UNF	31850	20800	0.87
UCX08-25	1-9/16		85	49.2	22	19	30.2	8	6.8	5/16-24UNF	31850	20800	0.87
UCX08		40	85	49.2	22	19	30.2	8	6.8	M8X1	31850	20800	0.83
UCX09-26	1-5/8		90	51.6	23	19	32.6	9	6.5	3/8-24UHF	35100	23200	1.10
UCX09-27	1-11/16		90	51.6	23	19	32.6	9	6.5	3/8-24UNF	35100	23200	1.01
UCX09-28	1-3/4		90	51.6	23	19	32.6	9	6.5	3/8-24UNF	35100	23200	0.97
UCX09		45	90	51.6	23	19	32.6	9	6.5	M10X1.25	35100	23200	0.95
UCX10-30	1-7/8		100	55.6	25	22.2	33.4	9	7.2	3/8-24UNF	43550	29200	1.43
UCX10-31	1-15/16		100	55.6	25	22.2	33.4	9	7.2	3/8-24UNF	43550	29200	1.32
UCX10		50	100	55.6	25	22.2	33.4	9	7.2	M10X1.25	43550	29200	1.29
UCX10-32	2		100	55.6	25	22.2	33.4	9	7.2	3/8-24UNF	43550	29200	1.26
UCX11-34	2-1/8		110	65.1	27	25.4	39.7	10.5	8.2	3/8-24UNF	47800	32800	1.95
UCX11		55	110	65.1	27	25.4	39.7	10.5	8.2	M10X1.25	47800	32800	1.80
UCX11-35	2-3/16		110	65.1	27	25.4	39.7	10.5	8.2	3/8-24UNF	47800	32800	1.78
UCX11-36	2-1/4		110	65.1	27	25.4	39.7	10.5	8.2	3/8-24UNF	47800	32800	1.70
UCX12		60	120	65.1	28	25.4	39.7	12	8	M12X1.25	57200	40000	2.05
UCX12-38	2-3/8		120	65.1	28	25.4	39.7	12	8	3/8-24UNF	57200	40000	2.03
UCX12-39	2-7/16		120	65.1	28	25.4	39.7	12	8	3/8-24UNF	57200	40000	1.95
UCX13-40	2-1/2		125	74.6	30	30.2	44.4	12	9	7/16-20UNF	60800	45000	2.61
UCX13		65	125	74.6	30	30.2	44.4	12	9	M12X1.25	60800	45000	2.52
UCX14-44	2-3/4		130	77.8	30	33.3	44.5	12	9	7/16-20UNF	66000	49500	2.75
UCX14		70	130	77.8	30	33.3	44.5	12	9	M12X1.25	66000	49500	2.74
UCX15		75	140	82.6	33	33.3	49.3	14	10.3	M12X1.25	71500	54200	3.41
UCX15-48	3		140	82.6	33	33.3	49.3	14	10.3	7/16-20UNF	71500	54200	3.32
UCX16		80	150	85.7	35	34.1	51.6	14	11	M12X1.25	83200	63800	3.87
UCX17-52	3-1/4		160	96	37	39.7	56.3	14	12	7/16-20UNF	95900	71500	4.58
UCX17		85	160	96	37	39.7	56.3	14	12	M12X1.25	95900	71500	5.05
UCX18-56	3-1/2		170	104	39	42.9	61.1	14	12.1	1/2-20UNF	109000	82800	6.12
UCX18		90	170	104	39	42.9	61.1	14	12.1	M14X1.5	109000	82800	6.00
UCX20		100	190	117.5	44	49.2	68.3	16	13.7	M16X1.5	133000	105000	8.56
UCX20-64	4		190	117.5	44	49.2	68.3	16	13.7	5/8-18UNF	133000	105000	8.33
