R150620010螺母座、MGS20X20螺母座、R1506-2-0010螺母座、R1506-200-10螺母座、R150620010螺母座、MGS25X5螺母座、R1506-2-0010螺母座、R1506-200-10螺母座、R150620010螺母座、MGS25X10螺母座、R1506-2-0010螺母座、R1506-200-10螺母座、R150620010螺母座、MGS25X25螺母座、R1506-3-0010螺母座

发布时间：2025-05-05

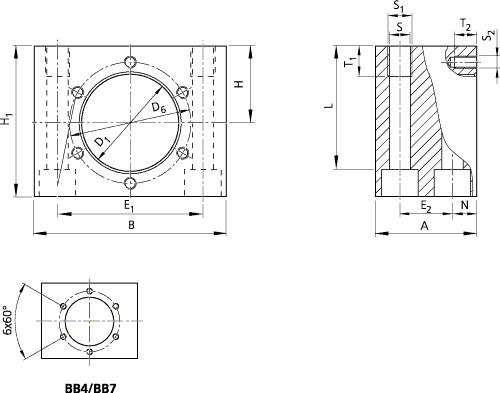

规格	部件号	D1	D6	A1)	B1)	h	H11)	E1	E2	N	S	S1	T1	S2	T2	安装孔圈	安装孔圈	六角杯	夹紧长度	重量
d0×P		H8				js7										FEM-E-S	SEM-E-S	头螺栓	L	(Kg)
																FDM-E-S		ISO4762
16×5	1506-0-0010	28	40	40	70	28	55	52±0.1	20±0.1	10	8.4	M10	15	M6	10	BB3	BB7	M8	44	0.85
16×10	1506-0-0010	28	40	40	70	28	55	52±0.1	20±0.1	10	8.4	M10	15	M6	10	BB3	BB7	M8	44	0.85
16×16	1506-1-0010	33	45	40	75	32	62	56±0.1	20±0.1	10	8.4	M10	15	M6	10	BB4	BB7	M8	51	1.05
20×5	1506-2-0010	33	45	0	75	32	62	57±0.1	20±0.1	10	8.4	M10	15	M6	10	BB4	BB7	M8	51	1.05
20×20	1506-2-0010	38	50	40	85	34	65	63±0.1	20±0.1	10	8.4	M10	15	M6	10	B4	BB7	M8	54	1.25
25×5	1506-2-0010	38	50	40	85	34	65	63±0.1	20±0.1	10	8.4	M10	15	M6	10	B4	BB7	M8	54	1.25
25×10	1506-2-0010	38	50	40	85	34	65	63±0.1	20±0.1	10	8.4	M10	15	M6	10	B4	BB7	M8	54	1.25
25×25	1506-3-0010	48	60	50	95	38	75	72±0.1	26±0.1	12	10.5	M12	15	M6	10	BB4	BB7	M10	61	1.8
32×5	1506-3-0010	48	60	50	95	38	75	72±0.1	26±0.1	12	10.5	M12	15	M6	10	BB4	BB7	M10	61	1.8
32×10	1506-3-0010	48	60	50	95	38	75	72±0.1	26±0.1	12	10.5	M12	15	M6	10	BB4	BB7	M10	61	1.8
32×20	1506-4-0010	56	68	60	105	42	82	82±0.1	30±0.1	15	13	M16	20	M6	12	BB4	BB7	M12	64	2.5
32×32	1506-4-0010	56	68	60	105	42	82	82±0.1	30±0.1	15	13	M16	20	M6	12	BB4	BB7	M12	64	2.5
40×5	1506-4-0010	56	68	60	105	42	82	82±0.1	30±0.1	15	13	M16	20	M6	12	BB4	BB7	M12	64	2.5
40×10	1506-4-0011	63	78	65	120	50	98	93±0.1	35±0.1	15	15	M18	25	M8	14	BB4	BB7	M14	79.5	3.7
40×20	1506-4-0011	63	78	65	120	50	98	93±0.1	35±0.1	15	15	M18	25	M8	14	BB4	BB7	M14	79.5	3.7
40×40	1506-5-0011	72	90	80	140	58	113	108±0.15	46±0.15	17	17	M20	30	M10	18	BB4	BB7	M16	92	6.3
50×5	1506-5-0010	68	82	65	130	52	101	100±0.15	35±0.15	15	15	M18	30	M8	14	BB4	BB7	M14	82.5	4.1
50×10	1506-5-0011	72	90	80	140	58	113	108±0.15	46±0.15	17	17	M20	30	M10	18	BB4	BB7	M61	92	6.3
50×20	1506-6-0010	85	105	80	150	65	128	121±0.15	46±0.15	17	17	M20	30	M10	18	BB4	BB7	M16	107	7.3
50×40	1506-6-0010	85	105	80	150	65	128	121±0.15	46±0.15	17	17	M20	30	M10	18	BB4	BB7	M16	107	7.3
63×10	1506-6-0010	85	105	80	150	65	128	121±0.15	46±0.15	17	17	M20	30	M10	18	BB4	BB7	M16	107	7.3
80×10	1506-7-0010	105	125	80	170	78	153	140±0.2	46±0.15	17	17	M20	30	M12	20	BB4	BB7	M16	132	9.4

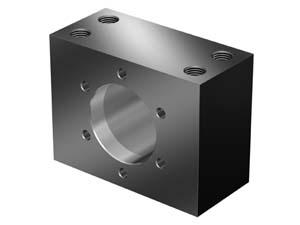

螺母座MGS适用于螺母FEM-E-S，FDM-E-S和SEM-E-S
除对螺母座用螺栓固定外，还要附加形状固定(例如两个定位销，直径=螺栓直径)我们推荐采用强度等级8.8的螺栓进行固定。
