FNL515A轴承座、FNL516A轴承座、FNL517A轴承座、FNL518A轴承座、FNL519A轴承座、FNL520A轴承座、FNL522A轴承座、FNL515B轴承座、FNL516B轴承座、FNL517B轴承座、FNL518B轴承座、FNL519B轴承座、FNL520B轴承座、FNL522B轴承座

发布时间：2025-05-05

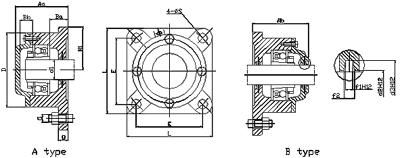

Housing No.		Shaft	Dimensions(mm)															Weight (kg)	Bearing No.	Adapter Sleeve	Locating Ring
A	B	d1	A_A	A_B	A₁	B_a	B_b	D₁	H₁	J	L	S	f1 H12	f2	d2 H12	d3 H12	G	Weight (kg)	Bearing No.	Adapter Sleeve	Number	QTY

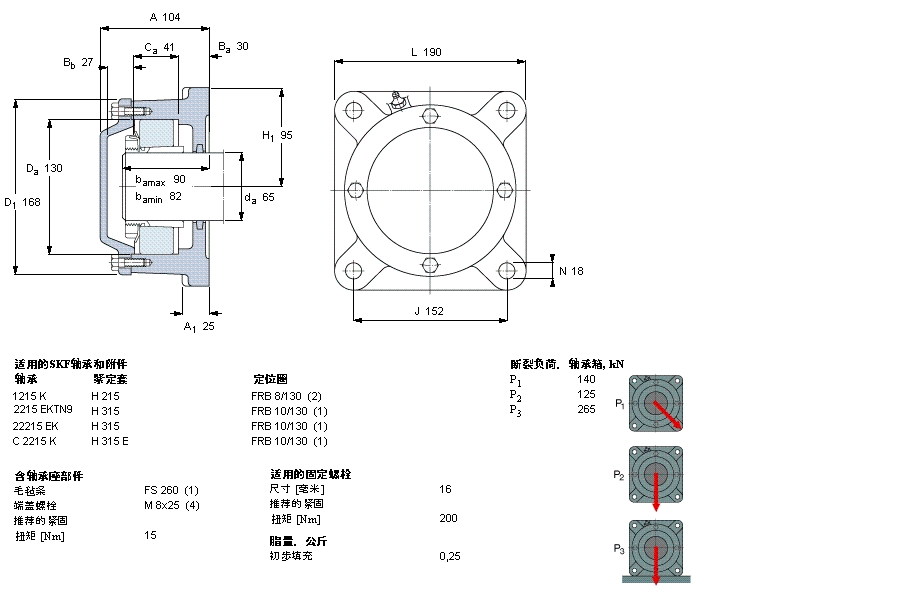

FNL515A	FNL515B	65	104	104	25	30	27	168	95	152	190	18	5	6.8	66.5	82	M16	9.4	1215K 2215K 22215EK	H215 H315 H315	FRB8/130 FRB10/130 FRB10/130	2 1 1
FNL516A	FNL516B	70	110	110	25	31	30	176	98	152	196	18	6	8.1	71.5	89	M16	9.8	1216K 2216K 22216EK	H216 H316 H316	FRB8.5/140 FRB10/140 FRB10/140	2 1 1
FNL517A	FNL517B	75	114	114	25	31	30	188	105	170	210	22	6	8.1	76.5	94	M16	11.5	1217K 2217K 22217EK	H217 H317 H317	FRB9/150 FRB10/150 FRB10/150	2 1 1
FNL518A	FNL518B	80	118	118	25	30	31	198	105	170	210	22	6	8.1	81.5	99	M16	12.5	1218K 2218K 22218EK	H218 H318 H318	FRB10/160 FRB10/160 FRB10/160	2 1 1

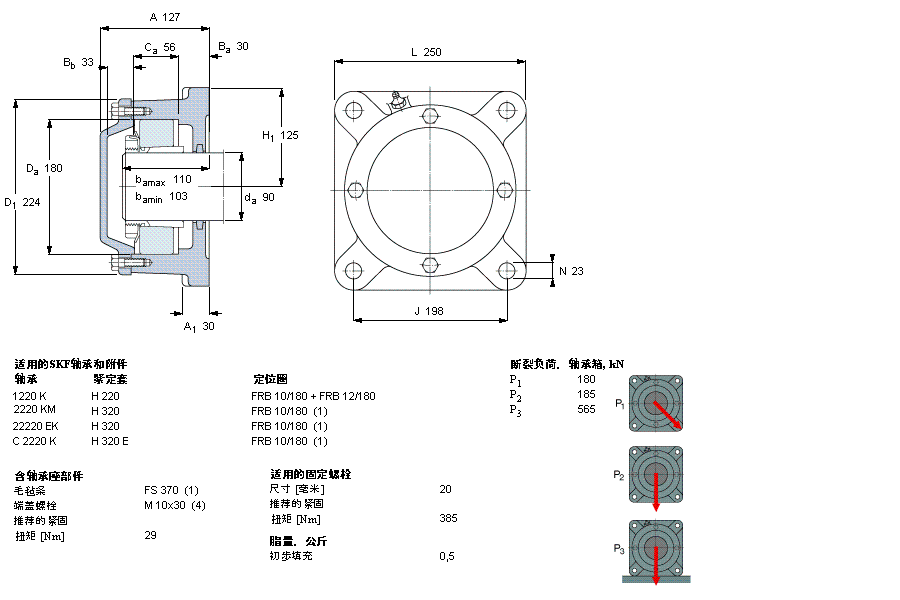

FNL520A	FNL520B	90	127	127	30	30	33	224	125	198	250	22	7	9.3	92	111	M20	18	1220K 2220K 22220EK	H220 H320 H320	FRB11/180 FRB10/180 FRB10/180	2 1 1
FNL522A	FNL522B	100	137	137	30	30	38	246	135	219	270	22	8	10.8	102	125	M20	21.5	1222K 2222K 22222EK	H222 H322 H322	FRB12.5/200 FRB10/200 FRB10/200	2 1 1
