SER207-20轴承内径31.75X72X42.9X23.8外球面轴承、SER207-21轴承内径33.3375X72X42.9X23.8外球面轴承、SER207-22轴承内径34.925X72X42.9X23.8外球面轴承、SER207轴承内径35X72X42.9X23.8外球面轴承、SER207-23轴承内径36.5125X72X42.9X23.8外球面轴承、SER208-24轴承内径38.1X80X49.2X27.8外球面轴承

轴承代码

轴径

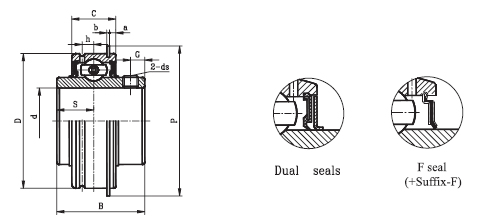

外形尺寸(mm)/(in.)

基本额定载荷 (N)

重量(kg)

d

D

B

C

S

a

b

p

G

h

ds

Dynamic Cr

Static Cor

(in.)

(mm)

 SER202

15

47

31

15.9

10.3

2.38

1.07

52.7

4.7

4.4

M6X1

12800

6650

0.24

 SER202-10

5/8

15.876

47

31

15.9

10.3

2.38

1.07

52.7

4.7

4.4

1/4-28UNF

12800

6650

0.24

 SER203

17

47

31

15.9

10.3

2.38

1.07

52.7

4.7

4.4

M6X1

12800

6650

0.24

 SER203-11

11/16

17.4625

47

31

15.9

10.3

2.38

1.07

52.7

4.7

4.4

1/4-28UNF

12800

6650

0.24

 SER204-12

3/4

19.05

47

31

15.9

10.3

2.38

1.07

52.7

4.7

4.4

1/4-28UNF

12800

6650

0.24

 SER204

20

47

31

15.9

10.3

2.38

1.07

52.7

4.7

4.4

M6X1

12800

6650

0.24

 SER205-14

7/8

22.225

52

34.9

19

13.1

2.38

1.07

57.9

5.5

4.5

1/4-28UNF

14000

7880

0.27

 SER205-15

15/16

23.8125

52

34.9

19

13.1

2.38

1.07

57.9

5.5

4.5

1/4-28UNF

14000

7880

0.27

 SER205

25

52

34.9

19

13.1

2.38

1.07

57.9

5.5

4.5

M6X1

14000

7880

0.27

 SER205-16

1

25.4

52

34.9

19

13.1

2.38

1.07

57.9

5.5

4.5

1/4-28UNF

14000

7880

0.27

 SER206-18

1-1/8

28.575

62

38.1

22.2

15.9

3.18

1.65

67.7

5.5

5.3

1/4-28UNF

19500

11200

0.39

 SER206

30

62

38.1

22.2

15.9

3.18

1.65

67.7

5.5

5.3

M6X1

19500

11200

0.39

 SER206-19

1-3/16

30.1625

62

38.1

22.2

15.9

3.18

1.65

67.7

5.5

5.3

1/4-28UNF

19500

11200

0.39

 SER206-20

1-1/4

31.75

62

38.1

22.2

15.9

3.18

1.65

67.7

5.5

5.3

1/4-28UNF

19500

11200

0.39

 SER207-20

1-1/4

31.75

72

42.9

23.8

17.5

3.18

1.65

78.6

6.5

5.8

5/16-24UNF

25700

15200

0.61

 SER207-21

1-5/16

33.3375

72

42.9

23.8

17.5

3.18

1.65

78.6

6.5

5.8

5/16-24UNF

25700

15200

0.61

 SER207-22

1-3/8

34.925

72

42.9

23.8

17.5

3.18

1.65

78.6

6.5

5.8

5/16-24UNF

25700

15200

0.61

 SER207

35

72

42.9

23.8

17.5

3.18

1.65

78.6

6.5

5.8

M8X1

25700

15200

0.61

 SER207-23

1-7/16

36.5125

72

42.9

23.8

17.5

3.18

1.65

78.6

6.5

5.8

5/16-24UNF

25700

15200

0.61

 SER208-24

1-1/2

38.1

80

49.2

27.8

19

3.18

1.65

86.6

8

6.3

5/16-24UNF

29600

18200

0.81

 SER208-25

1-9/16

39.6875

80

49.2

27.8

19

3.18

1.65

86.6

8

6.3

5/16-24UNF

29600

18200

0.81

 SER208

40

80

49.2

27.8

19

3.18

1.65

86.6

8

6.3

M8X1

29600

18200

0.81

 SER209-26

1-5/8

41.275

85

49.2

27.8

19

3.18

1.65

91.6

8

7.5

5/16-24UNF

31850

20800

0.90

 SER209-27

1-11/16

42.8625

85

49.2

27.8

19

3.18

1.65

91.6

8

7.5

5/16-24UNF

31850

20800

0.90

 SER209-28

1-3/4

44.45

85

49.2

27.8

19

3.18

1.65

91.6

8

7.5

5/16-24UNF

31850

20800

0.90

 SER209

45

85

49.2

27.8

19

3.18

1.65

91.6

8

7.5

M8X1

31850

20800

0.90

 SER210-30

1-7/8

47.625

90

51.6

28.6

19

3.18

2.41

96.5

9

6.8

3/8-24UNF

35100

23200

0.96

 SER210-31

1-15/16

49.2125

90

51.6

28.6

19

3.18

2.41

96.5

9

6.8

3/8-24UNF

35100

23200

0.96

 SER210

50

90

51.6

28.6

19

3.18

2.41

96.5

9

6.8

M10X1.25

35100

23200

0.96

 SER211-32

2

50.8

100

55.6

30.2

22.2

3.18

2.41

106.5

9

7.6

3/8-24UNF

43550

29200

1.41

 SER211-34

2-1/8

63.5

100

55.6

30.2

22.2

3.18

2.41

106.5

9

7.6

3/8-24UNF

43550

29200

1.41

 SER211

55

100

55.6

30.2

22.2

3.18

2.41

106.5

9

7.6

M10X1.25

43550

29200

1.41

 SER211-35

2-3/16

55.5825

100

55.6

30.2

22.2

3.18

2.41

106.5

9

7.6

3/8-24UNF

43550

29200

1.41

 SER212-36

2-1/4

57.15

110

65.1

31.8

25.4

3.18

2.41

116.6

10.5

8.4

3/8-24UNF

47800

32800

1.95

 SER212

60

110

65.1

31.8

25.4

3.18

2.41

116.6

10.5

8.4

M10X1.25

47800

32800

1.95

 SER212-38

2-3/8

60.325

110

65.1

31.8

25.4

3.18

2.41

116.6

10.5

8.4

3/8-24UNF

47800

32800

1.95

 SER212-39

2-7/16

61.9125

110

65.1

31.8

25.4

3.18

2.41

116.6

10.5

8.4

3/8-24UNF

47800

32800

1.95

 SER214-40

2-1/2

63.3

125

74.6

35

30.2

3.96

2.77

134.7

12

9

7/16-20UNF

60800

45000

2.52

 SER214-43

2-11/16

68.2625

125

74.6

35

30.2

3.96

2.77

134.7

12

9

7/16-20UNF

60800

45000

2.52

 SER214

70

125

74.6

35

30.2

3.96

2.77

134.7

12

9

M12X1.25

60800

45000

2.52

 SER215-46

2-7/8

73.025

130

77.8

38.1

33.3

3.96

2.77

139.7

12

9.5

7/16-20UNF

66000

49500

2.89

 SER215-47

2-15/16

74.6125

130

77.8

38.1

33.3

3.96

2.77

139.7

12

9.5

7/16-20UNF

66000

49500

2.89

 SER215

75

130

77.8

38.1

33.3

3.96

2.77

139.7

12

9.5

M12X1.25

66000

49500

2.89

 SER201

12

47

31

15.9

10.3

2.38

1.07

52.7

4.7

4.4

M6X1

12800

6650

0.24

 SER201-8

1/2

12.7

47

31

15.9

10.3

2.38

1.07

52.7

4.7

4.4

1/4-28UNF

12800

6650

0.24
