SER211-34外球面轴承、SER211外球面轴承、SER211-35外球面轴承、SER212-36外球面轴承、SER212外球面轴承、SER212-38外球面轴承、SER212-39外球面轴承、SER214-40外球面轴承、SER214-43外球面轴承、SER214外球面轴承、SER215-46外球面轴承、SER215-47外球面轴承、SER215外球面轴承、SER201外球面轴承、SER201-8外球面轴承
发布时间：2025-05-05
|

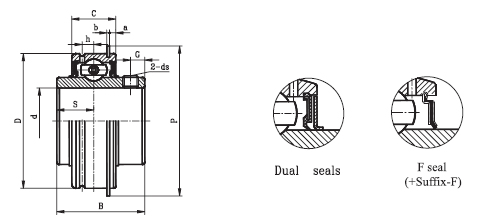

轴承代码 |
轴径 |
外形尺寸(mm)/(in.) |
基本额定载荷 (N) |
重量(kg) | |||||||||||
|
d |
D |
B |
C |
S |
a |
b |
p |
G |
h |
ds |
Dynamic Cr |
Static Cor | |||
|
(in.) |
(mm) | ||||||||||||||
|
SER202 |
|
15 |
47 |
31 |
15.9 |
10.3 |
2.38 |
1.07 |
52.7 |
4.7 |
4.4 |
M6X1 |
12800 |
6650 |
0.24 |
|
SER202-10 |
5/8 |
15.876 |
47 |
31 |
15.9 |
10.3 |
2.38 |
1.07 |
52.7 |
4.7 |
4.4 |
1/4-28UNF |
12800 |
6650 |
0.24 |
|
SER203 |
|
17 |
47 |
31 |
15.9 |
10.3 |
2.38 |
1.07 |
52.7 |
4.7 |
4.4 |
M6X1 |
12800 |
6650 |
0.24 |
|
SER203-11 |
11/16 |
17.4625 |
47 |
31 |
15.9 |
10.3 |
2.38 |
1.07 |
52.7 |
4.7 |
4.4 |
1/4-28UNF |
12800 |
6650 |
0.24 |
|
SER204-12 |
3/4 |
19.05 |
47 |
31 |
15.9 |
10.3 |
2.38 |
1.07 |
52.7 |
4.7 |
4.4 |
1/4-28UNF |
12800 |
6650 |
0.24 |
|
SER204 |
|
20 |
47 |
31 |
15.9 |
10.3 |
2.38 |
1.07 |
52.7 |
4.7 |
4.4 |
M6X1 |
12800 |
6650 |
0.24 |
|
SER205-14 |
7/8 |
22.225 |
52 |
34.9 |
19 |
13.1 |
2.38 |
1.07 |
57.9 |
5.5 |
4.5 |
1/4-28UNF |
14000 |
7880 |
0.27 |
|
SER205-15 |
15/16 |
23.8125 |
52 |
34.9 |
19 |
13.1 |
2.38 |
1.07 |
57.9 |
5.5 |
4.5 |
1/4-28UNF |
14000 |
7880 |
0.27 |
|
SER205 |
|
25 |
52 |
34.9 |
19 |
13.1 |
2.38 |
1.07 |
57.9 |
5.5 |
4.5 |
M6X1 |
14000 |
7880 |
0.27 |
|
SER205-16 |
1 |
25.4 |
52 |
34.9 |
19 |
13.1 |
2.38 |
1.07 |
57.9 |
5.5 |
4.5 |
1/4-28UNF |
14000 |
7880 |
0.27 |
|
SER206-18 |
1-1/8 |
28.575 |
62 |
38.1 |
22.2 |
15.9 |
3.18 |
1.65 |
67.7 |
5.5 |
5.3 |
1/4-28UNF |
19500 |
11200 |
0.39 |
|
SER206 |
|
30 |
62 |
38.1 |
22.2 |
15.9 |
3.18 |
1.65 |
67.7 |
5.5 |
5.3 |
M6X1 |
19500 |
11200 |
0.39 |
|
SER206-19 |
1-3/16 |
30.1625 |
62 |
38.1 |
22.2 |
15.9 |
3.18 |
1.65 |
67.7 |
5.5 |
5.3 |
1/4-28UNF |
19500 |
11200 |
0.39 |
|
SER206-20 |
1-1/4 |
31.75 |
62 |
38.1 |
22.2 |
15.9 |
3.18 |
1.65 |
67.7 |
5.5 |
5.3 |
1/4-28UNF |
19500 |
11200 |
0.39 |
|
SER207-20 |
1-1/4 |
31.75 |
72 |
42.9 |
23.8 |
17.5 |
3.18 |
1.65 |
78.6 |
6.5 |
5.8 |
5/16-24UNF |
25700 |
15200 |
0.61 |
|
SER207-21 |
1-5/16 |
33.3375 |
72 |
42.9 |
23.8 |
17.5 |
3.18 |
1.65 |
78.6 |
6.5 |
5.8 |
5/16-24UNF |
25700 |
15200 |
0.61 |
|
SER207-22 |
1-3/8 |
34.925 |
72 |
42.9 |
23.8 |
17.5 |
3.18 |
1.65 |
78.6 |
6.5 |
5.8 |
5/16-24UNF |
25700 |
15200 |
0.61 |
|
SER207 |
|
35 |
72 |
42.9 |
23.8 |
17.5 |
3.18 |
1.65 |
78.6 |
6.5 |
5.8 |
M8X1 |
25700 |
15200 |
0.61 |
|
SER207-23 |
1-7/16 |
36.5125 |
72 |
42.9 |
23.8 |
17.5 |
3.18 |
1.65 |
78.6 |
6.5 |
5.8 |
5/16-24UNF |
25700 |
15200 |
0.61 |
|
SER208-24 |
1-1/2 |
38.1 |
80 |
49.2 |
27.8 |
19 |
3.18 |
1.65 |
86.6 |
8 |
6.3 |
5/16-24UNF |
29600 |
18200 |
0.81 |
|
SER208-25 |
1-9/16 |
39.6875 |
80 |
49.2 |
27.8 |
19 |
3.18 |
1.65 |
86.6 |
8 |
6.3 |
5/16-24UNF |
29600 |
18200 |
0.81 |
|
SER208 |
|
40 |
80 |
49.2 |
27.8 |
19 |
3.18 |
1.65 |
86.6 |
8 |
6.3 |
M8X1 |
29600 |
18200 |
0.81 |
|
SER209-26 |
1-5/8 |
41.275 |
85 |
49.2 |
27.8 |
19 |
3.18 |
1.65 |
91.6 |
8 |
7.5 |
5/16-24UNF |
31850 |
20800 |
0.90 |
|
SER209-27 |
1-11/16 |
42.8625 |
85 |
49.2 |
27.8 |
19 |
3.18 |
1.65 |
91.6 |
8 |
7.5 |
5/16-24UNF |
31850 |
20800 |
0.90 |
|
SER209-28 |
1-3/4 |
44.45 |
85 |
49.2 |
27.8 |
19 |
3.18 |
1.65 |
91.6 |
8 |
7.5 |
5/16-24UNF |
31850 |
20800 |
0.90 |
|
SER209 |
|
45 |
85 |
49.2 |
27.8 |
19 |
3.18 |
1.65 |
91.6 |
8 |
7.5 |
M8X1 |
31850 |
20800 |
0.90 |
|
SER210-30 |
1-7/8 |
47.625 |
90 |
51.6 |
28.6 |
19 |
3.18 |
2.41 |
96.5 |
9 |
6.8 |
3/8-24UNF |
35100 |
23200 |
0.96 |
|
SER210-31 |
1-15/16 |
49.2125 |
90 |
51.6 |
28.6 |
19 |
3.18 |
2.41 |
96.5 |
9 |
6.8 |
3/8-24UNF |
35100 |
23200 |
0.96 |
|
SER210 |
|
50 |
90 |
51.6 |
28.6 |
19 |
3.18 |
2.41 |
96.5 |
9 |
6.8 |
M10X1.25 |
35100 |
23200 |
0.96 |
|
SER211-32 |
2 |
50.8 |
100 |
55.6 |
30.2 |
22.2 |
3.18 |
2.41 |
106.5 |
9 |
7.6 |
3/8-24UNF |
43550 |
29200 |
1.41 |
|
SER211-34 |
2-1/8 |
63.5 |
100 |
55.6 |
30.2 |
22.2 |
3.18 |
2.41 |
106.5 |
9 |
7.6 |
3/8-24UNF |
43550 |
29200 |
1.41 |
|
SER211 |
|
55 |
100 |
55.6 |
30.2 |
22.2 |
3.18 |
2.41 |
106.5 |
9 |
7.6 |
M10X1.25 |
43550 |
29200 |
1.41 |
|
SER211-35 |
2-3/16 |
55.5825 |
100 |
55.6 |
30.2 |
22.2 |
3.18 |
2.41 |
106.5 |
9 |
7.6 |
3/8-24UNF |
43550 |
29200 |
1.41 |
|
SER212-36 |
2-1/4 |
57.15 |
110 |
65.1 |
31.8 |
25.4 |
3.18 |
2.41 |
116.6 |
10.5 |
8.4 |
3/8-24UNF |
47800 |
32800 |
1.95 |
|
SER212 |
|
60 |
110 |
65.1 |
31.8 |
25.4 |
3.18 |
2.41 |
116.6 |
10.5 |
8.4 |
M10X1.25 |
47800 |
32800 |
1.95 |
|
SER212-38 |
2-3/8 |
60.325 |
110 |
65.1 |
31.8 |
25.4 |
3.18 |
2.41 |
116.6 |
10.5 |
8.4 |
3/8-24UNF |
47800 |
32800 |
1.95 |
|
SER212-39 |
2-7/16 |
61.9125 |
110 |
65.1 |
31.8 |
25.4 |
3.18 |
2.41 |
116.6 |
10.5 |
8.4 |
3/8-24UNF |
47800 |
32800 |
1.95 |
|
SER214-40 |
2-1/2 |
63.3 |
125 |
74.6 |
35 |
30.2 |
3.96 |
2.77 |
134.7 |
12 |
9 |
7/16-20UNF |
60800 |
45000 |
2.52 |
|
SER214-43 |
2-11/16 |
68.2625 |
125 |
74.6 |
35 |
30.2 |
3.96 |
2.77 |
134.7 |
12 |
9 |
7/16-20UNF |
60800 |
45000 |
2.52 |
|
SER214 |
|
70 |
125 |
74.6 |
35 |
30.2 |
3.96 |
2.77 |
134.7 |
12 |
9 |
M12X1.25 |
60800 |
45000 |
2.52 |
|
SER215-46 |
2-7/8 |
73.025 |
130 |
77.8 |
38.1 |
33.3 |
3.96 |
2.77 |
139.7 |
12 |
9.5 |
7/16-20UNF |
66000 |
49500 |
2.89 |
|
SER215-47 |
2-15/16 |
74.6125 |
130 |
77.8 |
38.1 |
33.3 |
3.96 |
2.77 |
139.7 |
12 |
9.5 |
7/16-20UNF |
66000 |
49500 |
2.89 |
|
SER215 |
|
75 |
130 |
77.8 |
38.1 |
33.3 |
3.96 |
2.77 |
139.7 |
12 |
9.5 |
M12X1.25 |
66000 |
49500 |
2.89 |
|
SER201 |
|
12 |
47 |
31 |
15.9 |
10.3 |
2.38 |
1.07 |
52.7 |
4.7 |
4.4 |
M6X1 |
12800 |
6650 |
0.24 |
|
SER201-8 |
1/2 |
12.7 |
47 |
31 |
15.9 |
10.3 |
2.38 |
1.07 |
52.7 |
4.7 |
4.4 |
1/4-28UNF |
12800 |
6650 |
0.24 |
