BCYR-1 7/8S英制滚轮轴承、BCYR-2S 英制滚轮轴承、BCYR-2 1/4S英制滚轮轴承、BCYR-2 1/2S英制滚轮轴承、BCYR-2 3/4S英制滚轮轴承、BCYR-3S 英制滚轮轴承、BCYR-3 1/4S英制滚轮轴承、BCYR-3 1/2S英制滚轮轴承、BCYR-4S 英制滚轮轴承
发布时间：2025-05-05

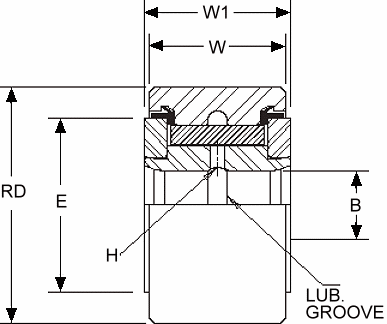

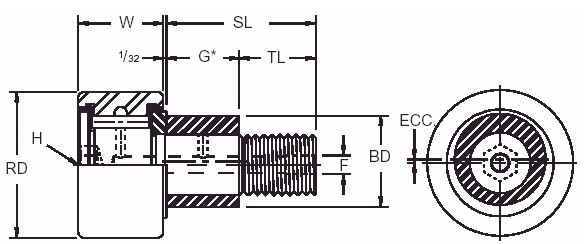

| 識 別 號 碼 | 主 要 尺 寸 (in.) | MIN. BOSS DIA. |
標準裝配尺寸(in.) | |||||||||||
| RD | W | B | WI | E | H | |||||||||
| +.000 -.001 |
+.000 -.005 |
+.005 -.010 |
推入接合 | 驅動接合 | 壓入接合 | |||||||||
| BCYR- 3/4S | 0.75 | 0.5 | 0.25 | +0.0002 -0.0004 |
0.5625 | 39/64 | 3/32 | 1/2 | 0.2495 | ±0.0002 | 0.2501 | ±0.0002 | 0.2503 | ±0.0002 |
| BCYR- 7/8S | 0.875 | 0.5 | 0.25 | +0.0002 -0.0004 |
0.5625 | 39/64 | 3/32 | 1/2 | 0.2495 | ±0.0002 | 0.2501 | ±0.0002 | 0.2503 | ±0.0002 |
| BCYR-1S | 1 | 0.625 | 0.3125 | +0.0002 -0.0004 |
0.6875 | 25/32 | 3/32 | 41/64 | 0.312 | ±0.0002 | 0.3126 | ±0.0002 | 0.3128 | ±0.0002 |
| BCYR-1 1/8S | 1.125 | 0.625 | 0.3125 | +0.0002 -0.0004 |
0.6875 | 25/32 | 3/32 | 41/64 | 0.312 | ±0.0002 | 0.3126 | ±0.0002 | 0.3128 | ±0.0002 |
| BCYR-1 1/4S | 1.25 | 0.75 | 0.375 | +0.0002 -0.0004 |
0.8125 | 63/64 | 3/32 | 49/64 | 0.3745 | ±0.0002 | 0.3751 | ±0.0002 | 0.3753 | ±0.0002 |
| BCYR-1 3/8S | 1.375 | 0.75 | 0.375 | +0.0002 -0.0004 |
0.8125 | 63/64 | 3/32 | 49/64 | 0.3745 | ±0.0002 | 0.3751 | ±0.0002 | 0.3753 | ±0.0002 |
| BCYR-1 1/2S | 1.5 | 0.875 | 0.4375 | +0.0002 -0.0004 |
0.9375 | 1 3/32 | 3/32 | 57/64 | 0.437 | ±0.0002 | 0.4376 | ±0.0002 | 0.4378 | ±0.0002 |
| BCYR-1 5/8S | 1.625 | 0.875 | 0.4375 | +0.0002 -0.0004 |
0.9375 | 1 3/32 | 3/32 | 57/64 | 0.437 | ±0.0002 | 0.4376 | ±0.0002 | 0.4378 | ±0.0002 |
| BCYR-1 3/4S | 1.75 | 1 | 0.5 | +0.0002 -0.0004 |
1.0625 | 1 1/4 | 3/32 | 1 3/64 | 0.4995 | ±0.0002 | 0.5001 | ±0.0002 | 0.5005 | ±0.0002 |
| BCYR-1 7/8S | 1.875 | 1 | 0.5 | +0.0002 -0.0004 |
1.0625 | 1 1/4 | 3/32 | 1 3/64 | 0.4995 | ±0.0002 | 0.5001 | ±0.0002 | 0.5005 | ±0.0002 |
| BCYR-2S | 2 | 1.25 | 0.625 | +0.0002 -0.0004 |
1.3125 | 1 13/32 | 3/32 | 1 13/64 | 0.6245 | ±0.0002 | 0.6251 | ±0.0002 | 0.6255 | ±0.0002 |
| BCYR-2 1/4S | 2.25 | 1.25 | 0.625 | +0.0002 -0.0004 |
1.3125 | 1 13/32 | 3/32 | 1 13/64 | 0.6245 | ±0.0002 | 0.6251 | ±0.0002 | 0.6255 | ±0.0002 |
| BCYR-2 1/2S | 2.5 | 1.5 | 0.75 | +0.0002 -0.0004 |
1.5625 | 1 11/16 | 1/8 | 1 5/16 | 0.7495 | ±0.0002 | 0.7501 | ±0.0002 | 0.7505 | ±0.0002 |
| BCYR-2 3/4S | 2.75 | 1.5 | 0.75 | +0.0002 -0.0004 |
1.5625 | 1 11/16 | 1/8 | 1 5/16 | 0.7495 | ±0.0002 | 0.7501 | ±0.0002 | 0.7505 | ±0.0002 |
| BCYR-3S | 3 | 1.75 | 1 | +0.0001 -0.0005 |
1.8125 | 2 1/8 | 1/8 | 1 3/4 | 0.9994 | +0.0002 -0.0003 |
1.0002 | +0.0002 -0.0003 |
1.0006 | +0.0002 -0.0003 |
| BCYR-3 1/4S | 3.25 | 1.75 | 1 | +0.0001 -0.0005 |
1.8125 | 2 1/8 | 1/8 | 1 3/4 | 0.9994 | +0.0002 -0.0003 |
1.0002 | +0.0002 -0.0003 |
1.0006 | +0.0002 -0.0003 |
| BCYR-3 1/2S | 3.5 | 2 | 1.125 | +0.0001 -0.0005 |
2.0625 | 2 7/16 | 1/8 | 1 59/64 | 1.1244 | +0.0002 -0.0003 |
1.1252 | +0.0002 -0.0003 |
1.1256 | +0.0002 -0.0003 |
| BCYR-4S | 4 | 2.25 | 1.25 | +0.0001 -0.0005 |
2.3125 | 2 51/64 | 1/8 | 2 9/32 | 1.2494 | +0.0002 -0.0003 |
1.2502 | +0.0002 -0.0003 |
1.2506 | +0.0002 -0.0003 |
