RHD15A滑块、RHD20A滑块、RHD20AL滑块、RHD25A滑块、RHD25AL滑块、RHD30A滑块、RHD30AL滑块、RHD35A滑块、RHD35AL滑块、RHD45A滑块、RHD45AL滑块、RHD55A滑块、RHD55AL滑块

发布时间：2026-09-27

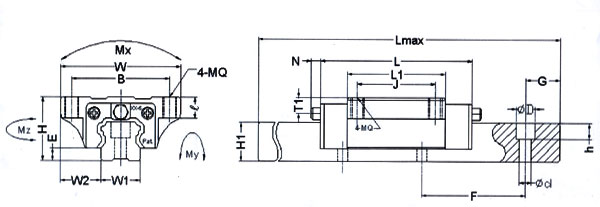

型号
组合尺寸
滑座尺寸
滑轨尺寸
H
W
W2
E
L
B×J
MQ×l**/*
L1
油孔
T1
N
W1
H1
F
d×D×h
RHD15A
24
47
16
4.6
56.6
38×30
M5×8
40
Ф3
4.3
5
15
14
60
4.5×7.5×5.3
RHD20A
30
63
21.5
5
74
53×40
M6×9
48.8
M6×1
5
6.5
20
18
60
6×9.5×8.5
RHD20AL
90
63.4
RHD25A
36
70
23.5
7
90
57×45
M8×12
57
M6×1
5
6.5
23
22
60
7×11×9
RHD25AL
110
79.1
RHD30A
42
90
31
9
98
72×52
M10×12
72
M6×1
7
6.5
28
26
80
9×14×12
RHD30AL
120.6
94.3
RHD35A
48
100
33
9.5
116
82×62
M10×13
80
M6×1
8
6.5
34
29
80
9×14×12
RHD35AL
139.3
105.8
RHD45A
60
(62)
120
37.5
14
139
100×80
M12×15
105
M8×1
10
13
45
38
105
(100)
14×20×17
RHD45AL
170.8
129.8
RHD55A
70
140
43.5
15
170
116×95
M14×20
121
M8×1
11
13
53
44
120
16×23×20
RHD55AL
205.1
156.1

型号
参考资料（mm）
基本荷重(kgf)
容许静力矩(kgfxm)
重量
Lmax
G
动额定负荷（c）
静额定负荷（co）
Mx
My
Mz
滑块kg
滑轨kgf/m
RHD15A
4000
30
850
1650
10
8
8
0.19
1.4
RHD20A
4000
30
1450
2560
22
18
18
0.4
2.6
RHD20AL
1900
3330
28.6
23.4
23.4
0.52
RHD25A
4000
30
2140
4000
36
32
31
0.57
3.6
RHD25AL
2996
5600
50.4
44.8
43.4
0.72
RHD30A
4000
40
2980
5490
60
50
49
1.1
5.2
RHD30AL
3900
7190
78.5
65
65
1.4
RHD35A
4000
40
3960
7010
96
75
73
1.6
7.2
RHD35AL
5230
9270
125
95
95
2
RHD45A
4000
50
52.5
6740
12100
216
170
168
2.7
12.3
RHD45AL
8330
14950
267
210
210
3.6
RHD55A
4000
60
9940
17100
367
293
288
5
16.9
RHD55AL
12820
22060
473
380
375
6.4
