R1532-200-06螺母、R153220006螺母、FEM-E-B8X2RX1.2-4丝杠、FEM-E-B8X2RX1.2-4滚珠丝杠、R1532-2-2006螺母、R1532-220-06螺母、R153222006螺母、FEM-E-B8X2.5RX1.588-3丝杠、FEM-E-B8X2.5RX1.588-3滚珠丝杠、R1532-2-3006螺母、R1532-230-06螺母、R153223006螺母、FEM-E-B12X2RX1.2-4丝杠

发布时间：2025-12-13

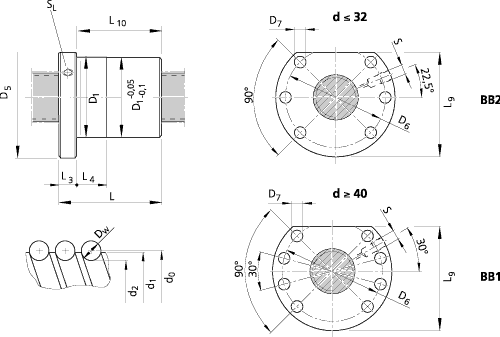

滚珠丝杠 螺母 额定载荷 速度 尺寸(mm)
动载 静载
d0*P*Dw C C0 Vmax d1 d2 D1 D4 D5 D6 D7 L L3 L4 L7 L14 ø
(N) (N) [m/min] g6 (°)
6X1RX0.8-4 1532-1-0006 900 1290 3 6 5.3 12 2 24 18 3.4 19.5 3.5 6 3.5 16 30
6X2RX0.8-4 1532-1-2006 890 1280 6 6 5.3 12 2 24 18 3.4 22.5 3.5 19 3 16 30
8X1RX0.8-4 1532-2-0006 1020 1740 3 8 7.3 16 2 28 22 3.4 22 6 16 3.5 19 30
8X2RX1.2-4 1532-2-2006 1870 2760 6 8 7 16 2 28 22 3.4 25 6 19 3 19 30
8X2.5RX1.588-3 1532-2-3006 2200 2800 15 7.5 6.3 16 2 28 22 3.4 16 6 10 3 19 30
12X2RX1.2-4 1532-4-2006 2240 4160 12 11.7 10.8 20 2 37 29 4.5 19 8 11 2.5 24 30
12X5RX2-3 1532-4-6006 3800 5800 30 11.4 9.9 22 2 37 29 4.5 28 8 20 6 24 30
12X10RX2-2 1532-4-9006 2500 3600 60 11.4 9.9 22 2 37 29 4.5 33 8 25 8 24 30
带密封、带轴向间隙或无间隙、用于滚压精密丝杠SN-R、公差等级3,5,7
d0=公称直径、P=螺距(R=右，L=左) 、Dw=滚珠直径、i=螺母内滚珠螺旋圈数
