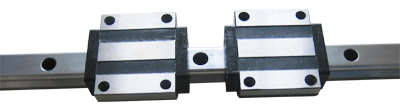

RHD-LG15C导轨滑块、RHD-LG20C导轨滑块、RHD-LG20CL导轨滑块、RHD-LG25C导轨滑块、RHD-LG25CL导轨滑块、RHD-LG30C导轨滑块、RHD-LG30CL导轨滑块、RHD-LG35C导轨滑块、RHD-LG35CL导轨滑块、RHD-LG45C导轨滑块、RHD-LG45CL导轨滑块、RHD-LG55C导轨滑块、RHD-LG55CL导轨滑块 — 搜轴承黑板报
搜轴承 -- 黑板报 -- RHD-LG15C导轨滑块、RHD-LG20C导轨滑块、RHD-LG20CL导轨滑...

RHD-LG15C导轨滑块、RHD-LG20C导轨滑块、RHD-LG20CL导轨滑块、RHD-LG25C导轨滑块、RHD-LG25CL导轨滑块、RHD-LG30C导轨滑块、RHD-LG30CL导轨滑块、RHD-LG35C导轨滑块、RHD-LG35CL导轨滑块、RHD-LG45C导轨滑块、RHD-LG45CL导轨滑块、RHD-LG55C导轨滑块、RHD-LG55CL导轨滑块

发布时间：2026-03-22

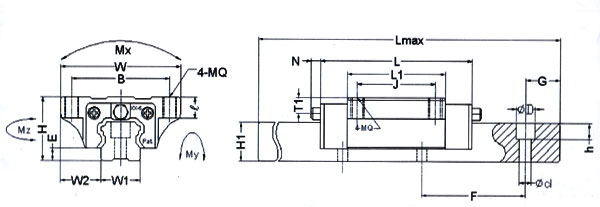

型号
组合尺寸
滑座尺寸
滑轨尺寸
H
W
W2
E
L
B×J

MQ×l
L1
油孔
T1
N
W1
H1
F
d×D×h
RHD15C
24
47
16
4.6
66
38×30
Ф4.5×8
40
Ф3
4.3
5
15
14
60
4.5×7.5×5.3
RHD20C
30
63
21.5
5
77.8
53×40
Ф5.5×9
48.8
M6×1
5
6.5
20
18
60
6×9.5×8.5
RHD20CL
92.4
63.4
RHD25C
36
70
23.5
7
88
57×45
Ф7×12
57
M6×1
5
6.5
23
22
60
7×11×9
RHD25CL
110.1
79.1
RHD30C
42
90
31
9
109
72×52
Ф9×12
72
M6×1
7
6.5
28
26
80
9×14×12
RHD30CL
131.3
94.3
RHD35C
48
100
33
9.5
116
82×62
Ф11×9
80.4
M6×1
8
6.5
34
29
80
9×14×12
RHD35CL
 139.3 105.8
RHD45C
62
(60)
120
37.5
14
139
100×80
Ф13×15
102
M8×1
10
13
45
38
100
105
14×20×17
RHD45CL
 170.8 129.8
RHD55C
70
140
43.5
15
170
116×95
Ф14×20
118
M8×1
11
13
53
44
120
16×23×20
