HDHCP12轴承、HDHCP15轴承、HDHCP17轴承、HDHCP20轴承、HDHCP25轴承、HDHCP30轴承、HDHCP12外球面轴承带座、HDHCP15外球面轴承带座、HDHCP17外球面轴承带座、HDHCP20外球面轴承带座、HDHCP25外球面轴承带座、HDHCP30外球面轴承带座

发布时间：2025-06-20

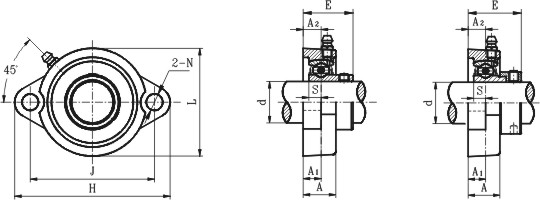

Unit No.	Shaft No.		Dimensions(mm)									Bolt Size	Bearing No.	Housing No.	Mass(kg)
	d		H	J	L	A1	A	A2	N	S	E
	(in.)	(mm)
HDHCP12		12	81	63.5	56	9.5	18	9.5	8	6.5	31.6	M6	SA201	LF203	0.3
HDHCP12-8	1/2		81	63.5	56	9.5	18	9.5	8	6.5	31.6	1/4	SA201-8	LF203	0.3
HDHCP15		15	81	63.5	56	9.5	18	9.5	8	6.5	31.6	M6	SA202	LF203	0.29
HDHCP15-10	5/8		81	63.5	56	9.5	18	9.5	8	6.5	31.6	1/4	SA202-10	LF203	0.29
HDHCP17		17	81	63.5	56	9.5	18	9.5	8	6.5	31.6	M6	SA203	LF203	0.28
HDHCP17-11	11/16		81	63.5	56	9.5	18	9.5	8	6.5	31.6	1/4	SA230-11	LF203	0.28
HDHCP20-12	3/4		90	71.5	63	11	20	11	10	7.5	34.4	5/16	SA204-12	LF204	0.33
HDHCP20		20	90	71.5	63	11	20	11	10	7.5	34.4	M8	SA204	LF204	0.33
HDHCP25-14	7/8		95	76	69	11	20	11	10	7.5	34.4	5/16	SA205-14	LF205	0.42
HDHCP25-15	15/16		95	76	69	11	20	11	10	7.5	34.4	5/16	SA205-15	LF205	0.42
HDHCP25		25	95	76	69	11	20	11	10	7.5	34.4	M8	SA205	LF205	0.42
HDHCP25-16	1		95	76	69	11	20	11	10	7.5	34.4	5/16	SA205-16	LF205	0.42
HDHCP30-18	1-1/8		113	90.5	76	12	22.5	12	12	9	38.7	3/8	SA206-18	LF206	0.60
HDHCP30		30	113	90.5	76	12	22.5	12	12	9	38.7	M10	SA206	LF206	0.60
HDHCP30-19	1-3/16		113	90.5	76	12	22.5	12	12	9	38.7	3/8	SA206-19	LF206	0.60
HDHCP30-20	1-1/4		113	90.5	76	12	22.5	12	12	9	38.7	3/8	SA206-20	LF206	0.60
HDHCP35-20	1-1/4		122	100	89	13	24	13	12	9.5	42.4	3/8	SA207-20	LF207	0.85
HDHCP35-21	1-5/16		122	100	89	13	24	13	12	9.5	42.4	3/8	SA207-21	LF207	0.85
HDHCP35-22	1-3/8		122	100	89	13	24	13	12	9.5	42.4	3/8	SA207-22	LF207	0.85
HDHCP35		35	122	100	89	13	24	13	12	9.5	42.4	M10	SA207	LF207	0.85
HDHCP35-23	1-7/16		122	100	89	13	24	13	12	9.5	42.4	3/8	SA207-23	LF207	0.85
