SAPFTD205-15G轴承、SAPFTD205G轴承、SAPFTD205-16G轴承、SAPFTD206-18G轴承、SAPFTD206G轴承、SAPFTD206-19G轴承、SAPFTD206-20G轴承、SAPFTD207-20G轴承、SAPFTD207-21G轴承、SAPFTD207-22G轴承、SAPFTD207G轴承、SAPFTD207-23G轴承
发布时间：2025-06-20
 |

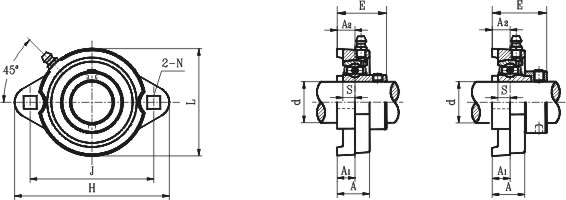

| Unit No. | Shaft Dia. | Dimensions(mm) | Bolt Size | Bearing No. | Housing No. | Mass(kg) | |||||||||
| d | H | J | L | A1 | A | A2 | N | S | E | ||||||
| (in.) | (mm) | ||||||||||||||
| SBPFTD201G | 12 | 81 | 63.5 | 56 | 9 | 18 | 9 | 8.7 | 6 | 25 | M8 | SA201G | PFTD203 | 0.23 | |
| SBPFTD201-8G | 1/2 | 81 | 63.5 | 56 | 9 | 18 | 9 | 8.7 | 6 | 25 | 5/16 | SB201-8G | PFTD203 | 0.23 | |
| SBPFTD202G | 15 | 81 | 63.5 | 56 | 9 | 18 | 9 | 8.7 | 6 | 25 | M8 | SB202G | PFTD203 | 0.23 | |
| SBPFTD202-10G | 5/8 | 81 | 63.5 | 56 | 9 | 18 | 9 | 8.7 | 6 | 25 | 5/16 | SB202-10G | PFTD203 | 0.23 | |
| SBPFTD203G | 17 | 81 | 63.5 | 56 | 9 | 18 | 9 | 8.7 | 6 | 25 | M8 | SA203G | PFTD203 | 0.23 | |
| SBPFTD203-11G | 11/16 | 81 | 63.5 | 56 | 9 | 18 | 9 | 8.7 | 6 | 25 | 5/16 | SB203-11G | PFTD203 | 0.23 | |
| SBPFTD204-12G | 3/4 | 91 | 71.5 | 63 | 10.2 | 20 | 10.2 | 8.7 | 7 | 28.2 | 5/16 | SB204-12G | PFTD204 | 0.27 | |
| SAPFTD204G | 20 | 91 | 71.5 | 63 | 10.2 | 20 | 10.2 | 8.7 | 7 | 28.2 | M8 | SB204G | PFTD204 | 0.27 | |
| SBPFTD205-14G | 7/8 | 96 | 76.2 | 69 | 10.5 | 19 | 8.7 | 8.7 | 7.5 | 28.2 | 5/16 | SB205-14G | PFTD205 | 0.38 | |
| SBPFTD205-15G | 15/16 | 96 | 76.2 | 69 | 10.5 | 19 | 8.7 | 8.7 | 7.5 | 28.2 | 5/16 | SB205-15G | PFTD205 | 0.38 | |
| SBPFTD205G | 25 | 96 | 76.2 | 69 | 10.5 | 19 | 8.7 | 8.7 | 7.5 | 28.2 | M8 | SB205G | PFTD205 | 0.38 | |
| SBPFTD205-16G | 1 | 96 | 76.2 | 69 | 10.5 | 19 | 8.7 | 8.7 | 7.5 | 28.2 | 5/16 | SB205-16G | PFTD205 | 0.38 | |
| SBPFTD206-18G | 1-1/8 | 113 | 90.5 | 79 | 11.5 | 22 | 11.5 | 10.3 | 8 | 33.5 | 3/8 | SB206-18G | PFTD206 | 0.54 | |
| SBPFTD206G | 30 | 113 | 90.5 | 79 | 11.5 | 22 | 11.5 | 10.3 | 8 | 33.5 | M10 | SB206G | PFTD206 | 0.54 | |
| SBPFTD206-19G | 1-3/16 | 113 | 90.5 | 79 | 11.5 | 22 | 11.5 | 10.3 | 8 | 33.5 | 3/8 | SB206-19G | PFTD206 | 0.54 | |
| SBPFTD206-20G | 1-1/4 | 113 | 90.5 | 79 | 11.5 | 22 | 11.5 | 10.3 | 8 | 33.5 | 3/8 | SB206-20G | PFTD206 | 0.54 | |
| SBPFTD207-20G | 1-1/4 | 122.5 | 100 | 89 | 12.7 | 23.8 | 11.8 | 10.3 | 8.5 | 35.3 | 3/8 | SB207-20G | PFTD207 | 0.71 | |
| SBPFTD207-21G | 1-5/16 | 122.5 | 100 | 89 | 12.7 | 23.8 | 11.8 | 10.3 | 8.5 | 35.3 | 3/8 | SB207-21G | PFTD207 | 0.71 | |
| SBPFTD207-22G | 1-3/8 | 122.5 | 100 | 89 | 12.7 | 23.8 | 11.8 | 10.3 | 8.5 | 35.3 | 3/8 | SB207-22G | PFTD207 | 0.71 | |
| SBPFTD207G | 35 | 122.5 | 100 | 89 | 12.7 | 23.8 | 11.8 | 10.3 | 8.5 | 35.3 | M10 | SB207G | PFTD207 | 0.71 | |
| SBPFTD207-23G | 1-7/16 | 122.5 | 100 | 89 | 12.7 | 23.8 | 11.8 | 10.3 | 8.5 | 35.3 | 3/8 | SB207-23G | PFTD207 | 0.71 | |
| SAPFTD201G | 12 | 81 | 63.5 | 56 | 9 | 18 | 9 | 8.7 | 6.5 | 31.1 | M8 | SA201G | PFTD203 | 0.26 | |
| SAPFTD201-8G | 1/2 | 81 | 63.5 | 56 | 9 | 18 | 9 | 8.7 | 6.5 | 31.1 | 5/16 | SA201-8G | PFTD203 | 0.26 | |
| SAPFTD202G | 15 | 81 | 63.5 | 56 | 9 | 18 | 9 | 8.7 | 6.5 | 31.1 | M8 | SA202G | PFTD202 | 0.26 | |
| SAPFTD202-10G | 5/8 | 81 | 63.5 | 56 | 9 | 18 | 9 | 8.7 | 6.5 | 31.1 | 5/16 | SA202-10G | PFTD202 | 0.26 | |
| SAPFTD203G | 17 | 81 | 63.5 | 56 | 9 | 18 | 9 | 8.7 | 6.5 | 31.1 | M8 | SA203G | PFTD203 | 0.26 | |
| SAPFTD203-11G | 11/16 | 81 | 63.5 | 56 | 9 | 18 | 9 | 8.7 | 6.5 | 31.1 | 5/16 | SA203-11G | PFTD203 | 0.26 | |
| SAPFTD204-12G | 3/4 | 91 | 71.5 | 63 | 10.2 | 20 | 10.2 | 8.7 | 7.5 | 33.6 | 5/16 | SA204-12G | PFTD204 | 0.29 | |
| SAPFTD204G | 20 | 91 | 71.5 | 63 | 10.2 | 20 | 10.2 | 8.7 | 7.5 | 33.6 | M8 | SA204G | PFTD204 | 0.29 | |
| SAPFTD205-14G | 7/8 | 96 | 76.2 | 69 | 10.5 | 19 | 8.7 | 8.7 | 7.5 | 32.1 | 5/16 | SA205-14G | PFTD205 | 0.4 | |
| SAPFTD205-15G | 15/16 | 96 | 76.2 | 69 | 10.5 | 19 | 8.7 | 8.7 | 7.5 | 32.1 | 5/16 | SA205-15G | PFTD205 | 0.4 | |
| SAPFTD205G | 25 | 96 | 76.2 | 69 | 10.5 | 19 | 8.7 | 8.7 | 7.5 | 32.1 | M8 | SA205G | PFTD205 | 0.4 | |
| SAPFTD205-16G | 1 | 96 | 76.2 | 69 | 10.5 | 19 | 8.7 | 8.7 | 7.5 | 32.1 | 5/16 | SA205-16G | PFTD205 | 0.4 | |
| SAPFTD206-18G | 1-1/8 | 113 | 90.5 | 79 | 11.5 | 22 | 11.5 | 10.3 | 9 | 38.2 | 3/8 | SA206-18G | PFTD206 | 0.60 | |
| SAPFTD206G | 30 | 113 | 90.5 | 79 | 11.5 | 22 | 11.5 | 10.3 | 9 | 38.2 | M10 | SA206G | PFTD206 | 0.60 | |
| SAPFTD206-19G | 1-3/16 | 113 | 90.5 | 79 | 11.5 | 22 | 11.5 | 10.3 | 9 | 38.2 | 3/8 | SA206-19G | PFTD206 | 0.60 | |
| SAPFTD206-20G | 1-1/4 | 113 | 90.5 | 79 | 11.5 | 22 | 11.5 | 10.3 | 9 | 38.2 | 3/8 | SA206-20G | PFTD206 | 0.60 | |
| SAPFTD207-20G | 1-1/4 | 122.5 | 100 | 89 | 12.7 | 23.8 | 11.8 | 10.3 | 9.5 | 41.2 | 3/8 | SA207-20G | PFTD207 | 0.84 | |
| SAPFTD207-21G | 1-5/16 | 122.5 | 100 | 89 | 12.7 | 23.8 | 11.8 | 10.3 | 9.5 | 41.2 | 3/8 | SA207-20G | PFTD207 | 0.84 | |
| SAPFTD207-22G | 1-3/8 | 122.5 | 100 | 89 | 12.7 | 23.8 | 11.8 | 10.3 | 9.5 | 41.2 | 3/8 | SA207-22G | PFTD207 | 0.84 | |
| SAPFTD207G | 35 | 122.5 | 100 | 89 | 12.7 | 23.8 | 11.8 | 10.3 | 9.5 | 41.2 | M10 | SA207G | PFTD207 | 0.84 | |
| SAPFTD207-23G | 1-7/16 | 122.5 | 100 | 89 | 12.7 | 23.8 | 11.8 | 10.3 | 9.5 | 41.2 | 3/8 | SA207-23G | PFTD207 | 0.84 | |
