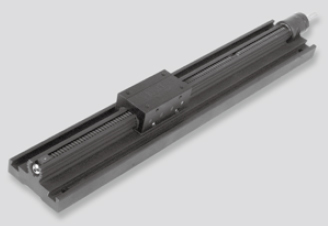

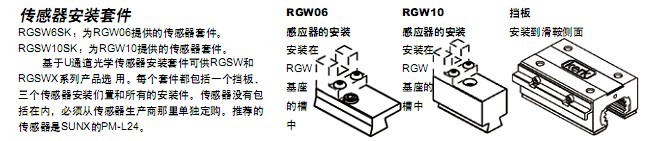

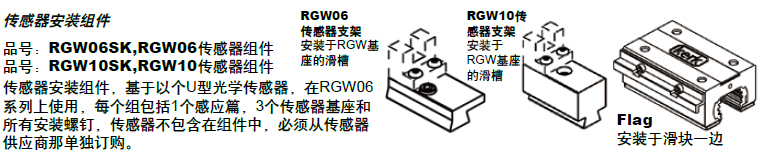

| RGW直线滑轨系列和RGM电机安装座—加宽结构,带安装槽和安装支架 |
| RGS®滑轨的RGW系列配置简化了电机和限位开关传感器的安装.两个系列都带有安装传感器支架的插槽以及滑鞍的安装档板部件. RGM还包括一个电机的安装支架. 电机、联轴器和传感器不是标准附件，通用光学传感器的安装套件是标准附件。（见传感器安装套件） |
| |
| |

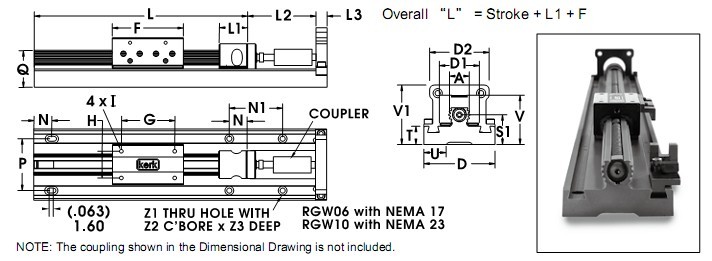

| 尺寸图: 带电机安装支架的宽支架RGW系列 |
|
|

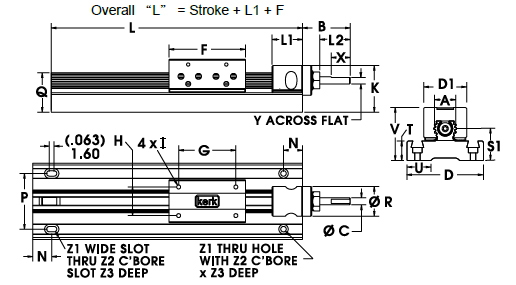

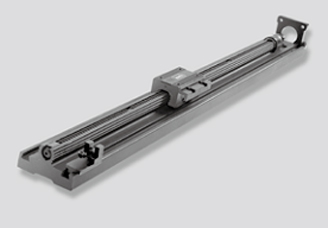

| RGM电机安装系列 |
| |
宽结构电机安装座
RGS系列 |
A
inch
(mm) |
D
inch
(mm) |
D1
inch
(mm) |
D2
inch
(mm) |
F
inch
(mm) |
G
inch
(mm) |
H
inch
(mm) |
I*
inch
(mm) |
L1
inch
(mm) |
L2
inch
(mm) |
| RGS 06 |
.60
(15.2) |
2.00
(50.8) |
1.13
(28.6) |
1.67
(42.2) |
2.0
(51) |
1.500
(38.10) |
.750
(19.05) |
6-32
UNC |
.80
(20.3) |
1.93
(48.9) |
| RGS 10 |
1.00
(25.4) |
3.38
(85.7) |
2.00
(50.8) |
1.67
(42.2) |
3.3
(83) |
2.250
(57.15) |
1.250
(31.75) |
1/4-20
UNC |
1.30
(33.0) |
2.16
(54.9) | |
| |
宽结构电机安装座
RGS系列 |
L3
inch
(mm) |
N
inch
(mm) |
N1
inch
(mm) |
P
inch
(mm) |
Q
inch
(mm) |
S1
inch
(mm) |
T
inch
(mm) |
U
inch
(mm) |
V
inch
(mm) |
V1
inch
(mm) |
Z1
inch
(mm) |
Z2
inch
(mm) |
Z3
inch
(mm) |
