LSK-FL15CB导轨、LSK-FL20CB导轨、LSK-FL20HB导轨、LSK-FL25CB导轨、LSK-FL25HB导轨、LSK-FL30CB导轨、LSK-FL30HB导轨、LSK-FL35CB导轨、LSK-FL35HB导轨、LSK-FL45CB导轨、LSK-FL45HB导轨

发布时间：2025-05-04

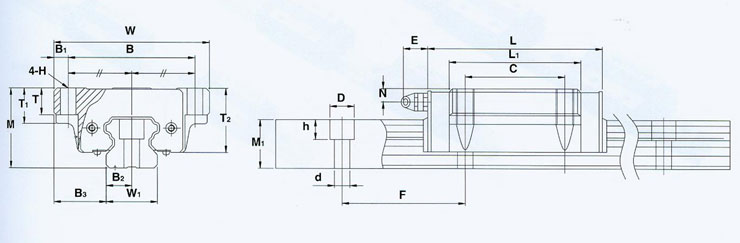

型号

宽W

长度L

高度M

B

B1

L1

C

T

T1

T2

H

N

E

润滑油接管

FL15CB

47

66.5

24

38

4.5

38.5

30

7

11

19.5

4.5

4.5

5.5

M4×0.7P

FL20CB

63

80.5

30

53

5

50.5

40

10

10

24.5

6

5

12

M6×1.0P

FL20HB

63

96.5

30

53

5

66.5

40

10

10

24.5

6

5

12

M6×1.0P

FL25CB

70

89.5

36

57

6.5

59.5

45

12

16

29

7

6

12

M6×1.0P

FL25HB

70

108.5

36

57

6.5

78.5

45

12

16

29

7

6

12

M6×1.0P

FL30CB

90

103.5

42

72

9

70.5

52

12

18

34

9

7

12

M6×1.0P

FL30HB

90

125.5

42

72

9

92.5

52

12

18

34

9

7

12

M6×1.0P

FL35CB

100

115.5

48

82

9

80.5

62

13

21

39

9

8

12

M6×1.0P

FL35HB

100

140.5

48

82

9

105.5

62

13

21

39

9

8

12

M6×1.0P

FL45CB

120

137.5

60

100

10

98

80

14

25

48.5

11

10

16

1/8PT

FL45HB

120

169.5

60

100

10

130

80

14

25

48.5

11

10

16

1/8PT

型号

宽W1

高度M1

间距F

B2

B3

C

Co

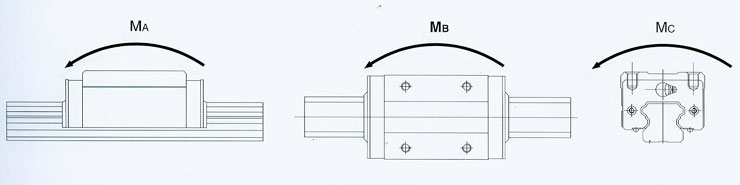

MA

MB

MC

滑块个/kg

滑轨米/kg

d×D×h

kgf

kgf

kgf-M

kgf-M

kgf-M

FL15CB

15

15

60

7.5

16

850

1380

7.3

7.3

10.1

0.2

1.7

4.7×7.5×5.5

FL20CB

20

18

60

10

21.5

1410

2430

15.9

15.9

23.7

0.35

2.5

6×9.5×8.5

FL20HB

20

18

60

10

21.5

2170

3240

27.5

27.5

31.6

0.47

2.5

6×9.5×8.5

FL25CB

23

22

60

11.5

23.5

2030

3510

27.5

27.5

40

0.59

3.6

7×11×9

FL25HB

23

22

60

11.5

23.5

2770

4680

46.8

46.8

51.8

0.75

3.6

7×11×9

FL30CB

28

26

80

14

31

2860

4770

43.8

43.8

65.8

1.1

5.1

9×14×12

FL30HB

28

26

80

14

31

3800

6370

74.4

74.4

87.7

1.3

5.1

9×14×12

FL35CB

34

29

80

17

33

3800

6230

65.4

65.4

104.7

1.6

6.9

9×14×12

FL35HB

34

29

80

17

33

5120

8310

111.1

111.1

139.9

2

6.9

9×14×12

FL45CB

45

38

105

22.5

37.5

6120

9750

127.6

127.6

213.2

2.8

11

14×20×17

FL45HB

45

38

105

22.5

37.5

8200

13000

217.1

217.1

284.1

3.3

11

14×20×17

上一篇：FL15CA滑块、FL20CA滑块、FL20HA滑块、FL25CA滑块、FL25HA滑块、FL30CA滑块、FL30HA滑块、FL35CA滑块、FL35HA滑块、FL45CA滑块、FL45HA滑块 —— 下一篇：LSK-FL15CB滑块、LSK-FL20CB滑块、LSK-FL20HB滑块、LSK-FL25CB滑块、LSK-FL25HB滑块、LSK-FL30CB滑块、LSK-FL30HB滑块、LSK-FL35CB滑块、LSK-FL35HB滑块、LSK-FL45CB滑块、LSK-FL45HB滑块

返回搜轴承首页

型号	宽W	长度L	高度M	B	B1	L1	C	T	T1	T2	H	N	E	润滑油接管
FL15CB	47	66.5	24	38	4.5	38.5	30	7	11	19.5	4.5	4.5	5.5	M4×0.7P
FL20CB	63	80.5	30	53	5	50.5	40	10	10	24.5	6	5	12	M6×1.0P
FL20HB	63	96.5	30	53	5	66.5	40	10	10	24.5	6	5	12	M6×1.0P
FL25CB	70	89.5	36	57	6.5	59.5	45	12	16	29	7	6	12	M6×1.0P
FL25HB	70	108.5	36	57	6.5	78.5	45	12	16	29	7	6	12	M6×1.0P
FL30CB	90	103.5	42	72	9	70.5	52	12	18	34	9	7	12	M6×1.0P
FL30HB	90	125.5	42	72	9	92.5	52	12	18	34	9	7	12	M6×1.0P
FL35CB	100	115.5	48	82	9	80.5	62	13	21	39	9	8	12	M6×1.0P
FL35HB	100	140.5	48	82	9	105.5	62	13	21	39	9	8	12	M6×1.0P
FL45CB	120	137.5	60	100	10	98	80	14	25	48.5	11	10	16	1/8PT
FL45HB	120	169.5	60	100	10	130	80	14	25	48.5	11	10	16	1/8PT
型号	宽W1	高度M1	间距F	B2	B3	C	Co	MA	MB	MC	滑块个/kg	滑轨米/kg	d×D×h
型号	宽W1	高度M1	间距F	B2	B3	kgf	kgf	kgf-M	kgf-M	kgf-M	滑块个/kg	滑轨米/kg	d×D×h
FL15CB	15	15	60	7.5	16	850	1380	7.3	7.3	10.1	0.2	1.7	4.7×7.5×5.5
FL20CB	20	18	60	10	21.5	1410	2430	15.9	15.9	23.7	0.35	2.5	6×9.5×8.5
FL20HB	20	18	60	10	21.5	2170	3240	27.5	27.5	31.6	0.47	2.5	6×9.5×8.5
FL25CB	23	22	60	11.5	23.5	2030	3510	27.5	27.5	40	0.59	3.6	7×11×9
FL25HB	23	22	60	11.5	23.5	2770	4680	46.8	46.8	51.8	0.75	3.6	7×11×9
FL30CB	28	26	80	14	31	2860	4770	43.8	43.8	65.8	1.1	5.1	9×14×12
FL30HB	28	26	80	14	31	3800	6370	74.4	74.4	87.7	1.3	5.1	9×14×12
FL35CB	34	29	80	17	33	3800	6230	65.4	65.4	104.7	1.6	6.9	9×14×12
FL35HB	34	29	80	17	33	5120	8310	111.1	111.1	139.9	2	6.9	9×14×12
FL45CB	45	38	105	22.5	37.5	6120	9750	127.6	127.6	213.2	2.8	11	14×20×17
FL45HB	45	38	105	22.5	37.5	8200	13000	217.1	217.1	284.1	3.3	11	14×20×17
