FL15CB滑块、FL20CB滑块、FL20HB滑块、FL25CB滑块、FL25HB滑块、FL30CB滑块、FL30HB滑块、FL35CB滑块、FL35HB滑块、FL45CB滑块、FL45HB滑块

发布时间：2025-05-04

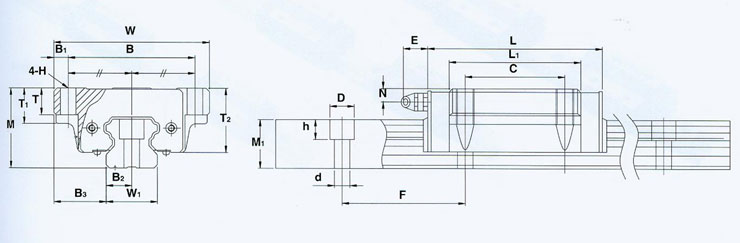

型号	宽W	长度L	高度M	B	B1	L1	C	T	T1	T2	H	N	E	润滑油接管
FL15CB	47	66.5	24	38	4.5	38.5	30	7	11	19.5	4.5	4.5	5.5	M4×0.7P
FL20CB	63	80.5	30	53	5	50.5	40	10	10	24.5	6	5	12	M6×1.0P
FL20HB	63	96.5	30	53	5	66.5	40	10	10	24.5	6	5	12	M6×1.0P
FL25CB	70	89.5	36	57	6.5	59.5	45	12	16	29	7	6	12	M6×1.0P
FL25HB	70	108.5	36	57	6.5	78.5	45	12	16	29	7	6	12	M6×1.0P
FL30CB	90	103.5	42	72	9	70.5	52	12	18	34	9	7	12	M6×1.0P
FL30HB	90	125.5	42	72	9	92.5	52	12	18	34	9	7	12	M6×1.0P
FL35CB	100	115.5	48	82	9	80.5	62	13	21	39	9	8	12	M6×1.0P
FL35HB	100	140.5	48	82	9	105.5	62	13	21	39	9	8	12	M6×1.0P
FL45CB	120	137.5	60	100	10	98	80	14	25	48.5	11	10	16	1/8PT
FL45HB	120	169.5	60	100	10	130	80	14	25	48.5	11	10	16	1/8PT

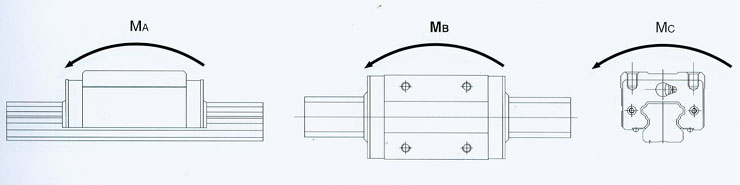

型号	宽W1	高度M1	间距F	B2	B3	C	Co	MA	MB	MC	滑块个/kg	滑轨米/kg	d×D×h
						kgf	kgf	kgf-M	kgf-M	kgf-M
FL15CB	15	15	60	7.5	16	850	1380	7.3	7.3	10.1	0.2	1.7	4.7×7.5×5.5
FL20CB	20	18	60	10	21.5	1410	2430	15.9	15.9	23.7	0.35	2.5	6×9.5×8.5
FL20HB	20	18	60	10	21.5	2170	3240	27.5	27.5	31.6	0.47	2.5	6×9.5×8.5
FL25CB	23	22	60	11.5	23.5	2030	3510	27.5	27.5	40	0.59	3.6	7×11×9
FL25HB	23	22	60	11.5	23.5	2770	4680	46.8	46.8	51.8	0.75	3.6	7×11×9
FL30CB	28	26	80	14	31	2860	4770	43.8	43.8	65.8	1.1	5.1	9×14×12
FL30HB	28	26	80	14	31	3800	6370	74.4	74.4	87.7	1.3	5.1	9×14×12
FL35CB	34	29	80	17	33	3800	6230	65.4	65.4	104.7	1.6	6.9	9×14×12
FL35HB	34	29	80	17	33	5120	8310	111.1	111.1	139.9	2	6.9	9×14×12
FL45CB	45	38	105	22.5	37.5	6120	9750	127.6	127.6	213.2	2.8	11	14×20×17
FL45HB	45	38	105	22.5	37.5	8200	13000	217.1	217.1	284.1	3.3	11	14×20×17
