LSK-GL15CA导轨、LSK-GL20CA导轨、LSK-GL20HA导轨、LSK-GL25CA导轨、LSK-GL25HA导轨、LSK-GL30CA导轨、LSK-GL30HA导轨、LSK-GL35CA导轨、LSK-GL35HA导轨、LSK-GL45CA导轨、LSK-GL45HA导轨

发布时间：2025-06-20

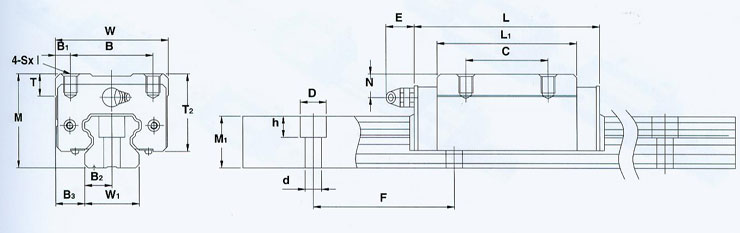

型号	宽W	长度L	高度M	B	B1	L1	C	T	T2	Sxl	N	E	润滑油接管
GL15CA	34	66.5	28	26	4	38.5	26	6	23.5	M4×5	8.5	5.5	M4×0.7P
GL20CA	44	80.5	30	32	6	50.5	36	8	24.5	M5×6	5	12	M6×1.0P
GL20HA	44	96.5	30	32	6	66.5	50	8	24.5	M5×6	5	12	M6×1.0P
GL25CA	48	89.5	40	35	6.5	59.5	35	12	33	M6×8	10	12	M6×1.0P
GL25HA	48	108.5	40	35	6.5	78.5	50	12	33	M6×8	10	12	M6×1.0P
GL30CA	60	103.5	45	40	10	70.5	40	12	37	M8×10	10	12	M6×1.0P
GL30HA	60	125.5	45	40	10	92.5	60	12	37	M8×10	10	12	M6×1.0P
GL35CA	70	115.5	55	50	10	80.5	50	12	46	M8×12	15	12	M6×1.0P
GL35HA	70	140.5	55	50	10	105.5	72	12	46	M8×12	15	12	M6×1.0P
GL45CA	86	137.5	70	60	13	98	60	15	58.5	M10×17	20	16	1/8PT
GL45HA	86	169.5	70	60	13	130	80	15	58.5	M10×17	20	16	1/8PT

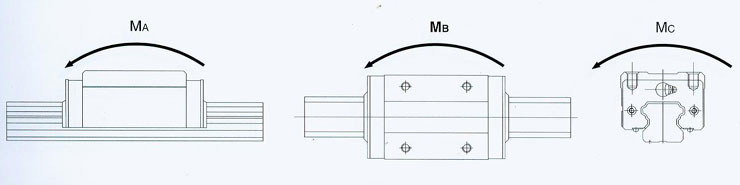

型号	宽W1	高度M1	间距F	B2	B3	C	Co	MA	MB	MC	滑块只/kg	滑轨米/kg	d×D×h
						kgf	kgf	kgf-M	kgf-M	kgf-M
GL15CA	15	15	60	7.5	9.5	850	1380	7.3	7.3	10.1	0.18	1.7	4.7×7.5×5.5
GL20CA	20	18	60	10	12	1410	2430	15.9	15.9	23.7	0.25	2.5	6×9.5×8.5
GL20HA	20	18	60	10	12	2170	3240	27.5	27.5	31.6	0.35	2.5	6×9.5×8.5
GL25CA	23	22	60	11.5	12.5	2030	3510	27.5	27.5	40	0.59	3.6	7×11×9
GL25HA	23	22	60	11.5	12.5	2770	4680	46.8	46.8	51.8	0.75	3.6	7×11×9
GL30CA	28	26	80	14	16	2860	4770	43.8	43.8	65.8	1.1	5.1	9×14×12
GL30HA	28	26	80	14	16	3800	6370	74.4	74.4	87.7	1.3	5.1	9×14×12
GL35CA	34	29	80	17	18	3800	6230	65.4	65.4	104.7	1.5	6.9	9×14×12
GL35HA	34	29	80	17	18	5120	8310	111.1	111.1	139.9	2	6.9	9×14×12
GL45CA	45	38	105	22.5	20.5	6120	9750	127.6	127.6	213.2	2.6	11	14×20×17
GL45HA	45	38	105	22.5	20.5	8200	13000	217.1	217.1	284.1	3.1	11	14×20×17
