LSK-GL15CA滑块、LSK-GL20CA滑块、LSK-GL20HA滑块、LSK-GL25CA滑块、LSK-GL25HA滑块、LSK-GL30CA滑块、LSK-GL30HA滑块、LSK-GL35CA滑块、LSK-GL35HA滑块、LSK-GL45CA滑块、LSK-GL45HA滑块

发布时间：2025-05-05

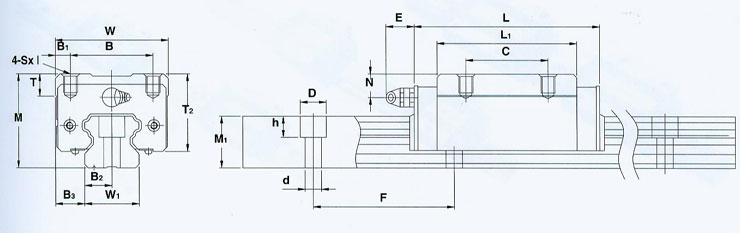

型号

宽W

长度L

高度M

B

B1

L1

C

T

T2

Sxl

N

E

润滑油接管

GL15CA

34

66.5

28

26

4

38.5

26

6

23.5

M4×5

8.5

5.5

M4×0.7P

GL20CA

44

80.5

30

32

6

50.5

36

8

24.5

M5×6

5

12

M6×1.0P

GL20HA

44

96.5

30

32

6

66.5

50

8

24.5

M5×6

5

12

M6×1.0P

GL25CA

48

89.5

40

35

6.5

59.5

35

12

33

M6×8

10

12

M6×1.0P

GL25HA

48

108.5

40

35

6.5

78.5

50

12

33

M6×8

10

12

M6×1.0P

GL30CA

60

103.5

45

40

10

70.5

40

12

37

M8×10

10

12

M6×1.0P

GL30HA

60

125.5

45

40

10

92.5

60

12

37

M8×10

10

12

M6×1.0P

GL35CA

70

115.5

55

50

10

80.5

50

12

46

M8×12

15

12

M6×1.0P

GL35HA

70

140.5

55

50

10

105.5

72

12

46

M8×12

15

12

M6×1.0P

GL45CA

86

137.5

70

60

13

98

60

15

58.5

M10×17

20

16

1/8PT

GL45HA

86

169.5

70

60

13

130

80

15

58.5

M10×17

20

16

1/8PT

型号

宽W1

高度M1

间距F

B2

B3

C

Co

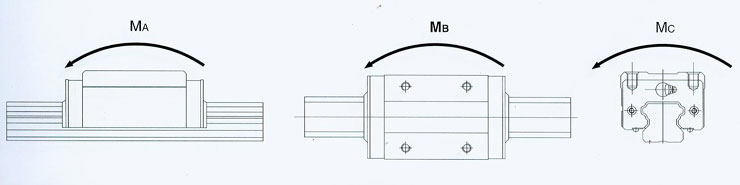

MA

MB

MC

滑块只/kg

滑轨米/kg

d×D×h

kgf

kgf

kgf-M

kgf-M

kgf-M

GL15CA

15

15

60

7.5

9.5

850

1380

7.3

7.3

10.1

0.18

1.7

4.7×7.5×5.5

GL20CA

20

18

60

10

12

1410

2430

15.9

15.9

23.7

0.25

2.5

6×9.5×8.5

GL20HA

20

18

60

10

12

2170

3240

27.5

27.5

31.6

0.35

2.5

6×9.5×8.5

GL25CA

23

22

60

11.5

12.5

2030

3510

27.5

27.5

40

0.59

3.6

7×11×9

GL25HA

23

22

60

11.5

12.5

2770

4680

46.8

46.8

51.8

0.75

3.6

7×11×9

GL30CA

28

26

80

14

16

2860

4770

43.8

43.8

65.8

1.1

5.1

9×14×12

GL30HA

28

26

80

14

16

3800

6370

74.4

74.4

87.7

1.3

5.1

9×14×12

GL35CA

34

29

80

17

18

3800

6230

65.4

65.4

104.7

1.5

6.9

9×14×12

GL35HA

34

29

80

17

18

5120

8310

111.1

111.1

139.9

2

6.9

9×14×12

GL45CA

45

38

105

22.5

20.5

6120

9750

127.6

127.6

213.2

2.6

11

14×20×17

GL45HA

45

38

105

22.5

20.5

8200

13000

217.1

217.1

284.1

3.1

11

14×20×17

上一篇：LSK-GL15CA导轨、LSK-GL20CA导轨、LSK-GL20HA导轨、LSK-GL25CA导轨、LSK-GL25HA导轨、LSK-GL30CA导轨、LSK-GL30HA导轨、LSK-GL35CA导轨、LSK-GL35HA导轨、LSK-GL45CA导轨、LSK-GL45HA导轨 —— 下一篇：GL15CA导轨、GL20CA导轨、GL20HA导轨、GL25CA导轨、GL25HA导轨、GL30CA导轨、GL30HA导轨、GL35CA导轨、GL35HA导轨、GL45CA导轨、GL45HA导轨、

返回搜轴承首页

型号	宽W	长度L	高度M	B	B1	L1	C	T	T2	Sxl	N	E	润滑油接管
GL15CA	34	66.5	28	26	4	38.5	26	6	23.5	M4×5	8.5	5.5	M4×0.7P
GL20CA	44	80.5	30	32	6	50.5	36	8	24.5	M5×6	5	12	M6×1.0P
GL20HA	44	96.5	30	32	6	66.5	50	8	24.5	M5×6	5	12	M6×1.0P
GL25CA	48	89.5	40	35	6.5	59.5	35	12	33	M6×8	10	12	M6×1.0P
GL25HA	48	108.5	40	35	6.5	78.5	50	12	33	M6×8	10	12	M6×1.0P
GL30CA	60	103.5	45	40	10	70.5	40	12	37	M8×10	10	12	M6×1.0P
GL30HA	60	125.5	45	40	10	92.5	60	12	37	M8×10	10	12	M6×1.0P
GL35CA	70	115.5	55	50	10	80.5	50	12	46	M8×12	15	12	M6×1.0P
GL35HA	70	140.5	55	50	10	105.5	72	12	46	M8×12	15	12	M6×1.0P
GL45CA	86	137.5	70	60	13	98	60	15	58.5	M10×17	20	16	1/8PT
GL45HA	86	169.5	70	60	13	130	80	15	58.5	M10×17	20	16	1/8PT
型号	宽W1	高度M1	间距F	B2	B3	C	Co	MA	MB	MC	滑块只/kg	滑轨米/kg	d×D×h
型号	宽W1	高度M1	间距F	B2	B3	kgf	kgf	kgf-M	kgf-M	kgf-M	滑块只/kg	滑轨米/kg	d×D×h
GL15CA	15	15	60	7.5	9.5	850	1380	7.3	7.3	10.1	0.18	1.7	4.7×7.5×5.5
GL20CA	20	18	60	10	12	1410	2430	15.9	15.9	23.7	0.25	2.5	6×9.5×8.5
GL20HA	20	18	60	10	12	2170	3240	27.5	27.5	31.6	0.35	2.5	6×9.5×8.5
GL25CA	23	22	60	11.5	12.5	2030	3510	27.5	27.5	40	0.59	3.6	7×11×9
GL25HA	23	22	60	11.5	12.5	2770	4680	46.8	46.8	51.8	0.75	3.6	7×11×9
GL30CA	28	26	80	14	16	2860	4770	43.8	43.8	65.8	1.1	5.1	9×14×12
GL30HA	28	26	80	14	16	3800	6370	74.4	74.4	87.7	1.3	5.1	9×14×12
GL35CA	34	29	80	17	18	3800	6230	65.4	65.4	104.7	1.5	6.9	9×14×12
GL35HA	34	29	80	17	18	5120	8310	111.1	111.1	139.9	2	6.9	9×14×12
GL45CA	45	38	105	22.5	20.5	6120	9750	127.6	127.6	213.2	2.6	11	14×20×17
GL45HA	45	38	105	22.5	20.5	8200	13000	217.1	217.1	284.1	3.1	11	14×20×17
