搜轴承 -- 黑板报 -- R40-8B2-OFSW-580-839-0.018滚珠丝杠、R40-8B2-OFSW-780-1039-0.018...
R40-8B2-OFSW-580-839-0.018滚珠丝杠、R40-8B2-OFSW-780-1039-0.018滚珠丝杠、R40-8B2-OFSW-980-1239-0.018滚珠丝杠、R45-10B1-OFSW-1380-1647-0.018滚珠丝杠、R45-10B1-OFSW-1780-2047-0.018滚珠丝杠、R45-10B1-OFSW-2480-2747-0.018滚珠丝杠、R45-10B1-OFSW-680-947-0.018滚珠丝杠
发布时间：2019-10-24

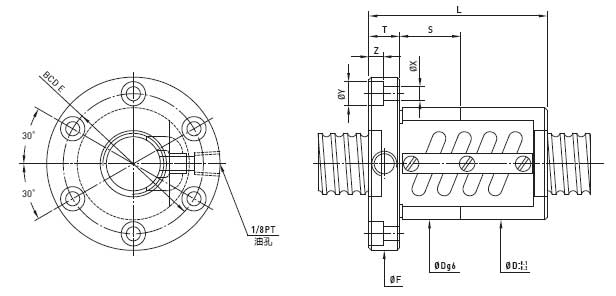

| 規格 | 螺桿外徑 (mm) | 螺帽外徑 (mm) | 螺帽長度 (mm) | 行程 (mm) | L3 (mm) | 動負荷 (kgf) | 靜負荷 (kgf) |
| R28-5B2-OFSW-1158-1333-0.018 | 28 | 55 | 86 | 1050 | 1333 | 1784 | 4932 |
| R28-5B2-OFSW-270-445-0.018 | 28 | 55 | 86 | 150 | 445 | 1784 | 4932 |
| R28-5B2-OFSW-370-545-0.018 | 28 | 55 | 86 | 250 | 545 | 1784 | 4932 |
| R28-5B2-OFSW-470-645-0.018 | 28 | 55 | 86 | 350 | 645 | 1784 | 4932 |
| R28-5B2-OFSW-558-733-0.018 | 28 | 55 | 86 | 450 | 733 | 1784 | 4932 |
| R28-5B2-OFSW-758-933-0.018 | 28 | 55 | 86 | 650 | 933 | 1784 | 4932 |
| R28-5B2-OFSW-958-1133-0.018 | 28 | 55 | 86 | 850 | 1133 | 1784 | 4932 |
| R28-6B2-OFSW-1158-1333-0.018 | 28 | 55 | 99 | 1050 | 1333 | 1784 | 4932 |
| R28-6B2-OFSW-370-545-0.018 | 28 | 55 | 99 | 250 | 545 | 1784 | 4932 |
| R28-6B2-OFSW-570-745-0.018 | 28 | 55 | 99 | 450 | 745 | 1784 | 4932 |
| R28-6B2-OFSW-758-933-0.018 | 28 | 55 | 99 | 650 | 933 | 1784 | 4932 |
| R28-6B2-OFSW-958-1133-0.018 | 28 | 55 | 99 | 850 | 1133 | 1784 | 4932 |
| R32-10B1-OFSW-1180-1429-0.018 | 32 | 74 | 100 | 1050 | 1429 | 2650 | 5599 |
| R32-10B1-OFSW-1480-1729-0.018 | 32 | 74 | 100 | 1350 | 1729 | 2650 | 5599 |
| R32-10B1-OFSW-1780-2029-0.018 | 32 | 74 | 100 | 1650 | 2029 | 2650 | 5599 |
| R32-10B1-OFSW-380-629-0.018 | 32 | 74 | 100 | 250 | 629 | 2650 | 5599 |
| R32-10B1-OFSW-480-729-0.018 | 32 | 74 | 100 | 350 | 729 | 2650 | 5599 |
| R32-10B1-OFSW-580-829-0.018 | 32 | 74 | 100 | 450 | 829 | 2650 | 5599 |
| R32-10B1-OFSW-680-929-0.018 | 32 | 74 | 100 | 550 | 929 | 2650 | 5599 |
| R32-10B1-OFSW-780-1029-0.018 | 32 | 74 | 100 | 650 | 1029 | 2650 | 5599 |
| R32-10B1-OFSW-980-1229-0.018 | 32 | 74 | 100 | 850 | 1229 | 2650 | 5599 |
| R32-5B2-OFSW-1180-1429-0.018 | 32 | 58 | 86 | 1050 | 1429 | 1886 | 5666 |
| R32-5B2-OFSW-1480-1729-0.018 | 32 | 58 | 86 | 1350 | 1729 | 1886 | 5666 |
| R32-5B2-OFSW-280-529-0.018 | 32 | 58 | 86 | 150 | 529 | 1886 | 5666 |
| R32-5B2-OFSW-380-629-0.018 | 32 | 58 | 86 | 250 | 629 | 1886 | 5666 |
| R32-5B2-OFSW-480-729-0.018 | 32 | 58 | 86 | 350 | 729 | 1886 | 5666 |
| R32-5B2-OFSW-580-829-0.018 | 32 | 58 | 86 | 450 | 829 | 1886 | 5666 |
| R32-5B2-OFSW-680-929-0.018 | 32 | 58 | 86 | 550 | 929 | 1886 | 5666 |
| R32-5B2-OFSW-780-1029-0.018 | 32 | 58 | 86 | 650 | 1029 | 1886 | 5666 |
| R32-5B2-OFSW-980-1229-0.018 | 32 | 58 | 86 | 850 | 1229 | 1886 | 5666 |
| R32-6B2-OFSW-1180-1429-0.018 | 32 | 62 | 99 | 1050 | 1429 | 2556 | 7019 |
| R32-6B2-OFSW-1480-1729-0.018 | 32 | 62 | 99 | 1350 | 1729 | 2556 | 7019 |
| R32-6B2-OFSW-380-629-0.018 | 32 | 62 | 99 | 250 | 629 | 2556 | 7019 |
| R32-6B2-OFSW-580-829-0.018 | 32 | 62 | 99 | 450 | 829 | 2556 | 7019 |
| R32-6B2-OFSW-780-1029-0.018 | 32 | 62 | 99 | 650 | 1029 | 2556 | 7019 |
| R32-6B2-OFSW-980-1229-0.018 | 32 | 62 | 99 | 850 | 1229 | 2556 | 7019 |
| R32-8B1-OFSW-1480-1729-0.018 | 32 | 66 | 82 | 1350 | 1729 | 2650 | 5599 |
| R32-8B1-OFSW-380-629-0.018 | 32 | 66 | 82 | 250 | 629 | 2650 | 5599 |
| R32-8B1-OFSW-580-829-0.018 | 32 | 66 | 82 | 450 | 829 | 2650 | 5599 |
| R32-8B1-OFSW-780-1029-0.018 | 32 | 66 | 82 | 650 | 1029 | 2650 | 5599 |
| R32-8B1-OFSW-980-1229-0.018 | 32 | 66 | 82 | 850 | 1229 | 2650 | 5599 |
| R36-10B1-OFSW-1380-1639-0.018 | 36 | 75 | 103 | 1250 | 1639 | 2812 | 6334 |
| R36-10B1-OFSW-1780-2039-0.018 | 36 | 75 | 103 | 1650 | 2039 | 2812 | 6334 |
| R36-10B1-OFSW-480-739-0.018 | 36 | 75 | 103 | 350 | 739 | 2812 | 6334 |
| R36-10B1-OFSW-680-939-0.018 | 36 | 75 | 103 | 550 | 939 | 2812 | 6334 |
| R36-10B1-OFSW-980-1239-0.018 | 36 | 75 | 103 | 850 | 1239 | 2812 | 6334 |
| R40-10B1-OFSW-1180-1439-0.018 | 40 | 82 | 103 | 1050 | 1439 | 2958 | 7069 |
| R40-10B1-OFSW-1380-1639-0.018 | 40 | 82 | 103 | 1250 | 1639 | 2958 | 7069 |
| R40-10B1-OFSW-1580-1839-0.018 | 40 | 82 | 103 | 1450 | 1839 | 2958 | 7069 |
| R40-10B1-OFSW-1780-2039-0.018 | 40 | 82 | 103 | 1650 | 2039 | 2958 | 7069 |
| R40-10B1-OFSW-2380-2639-0.018 | 40 | 82 | 103 | 2250 | 2639 | 2958 | 7069 |
| R40-10B1-OFSW-480-739-0.018 | 40 | 82 | 103 | 350 | 739 | 2958 | 7069 |
| R40-10B1-OFSW-580-839-0.018 | 40 | 82 | 103 | 450 | 839 | 2958 | 7069 |
| R40-10B1-OFSW-680-939-0.018 | 40 | 82 | 103 | 550 | 939 | 2958 | 7069 |
| R40-10B1-OFSW-780-1039-0.018 | 40 | 82 | 103 | 650 | 1039 | 2958 | 7069 |
| R40-10B1-OFSW-980-1239-0.018 | 40 | 82 | 103 | 850 | 1239 | 2958 | 7069 |
| R40-12B1-OFSW-1380-1639-0.018 | 40 | 86 | 117 | 1200 | 1639 | 3425 | 7837 |
| R40-12B1-OFSW-1780-2039-0.018 | 40 | 86 | 117 | 1600 | 2039 | 3425 | 7837 |
| R40-12B1-OFSW-2480-2739-0.018 | 40 | 86 | 117 | 2300 | 2739 | 3425 | 7837 |
| R40-12B1-OFSW-680-939-0.018 | 40 | 86 | 117 | 500 | 939 | 3425 | 7837 |
| R40-12B1-OFSW-980-1239-0.018 | 40 | 86 | 117 | 800 | 1239 | 3425 | 7837 |
| R40-5B2-OFSW-1180-1439-0.018 | 40 | 67 | 89 | 1050 | 1439 | 2070 | 7134 |
| R40-5B2-OFSW-1580-1839-0.018 | 40 | 67 | 89 | 1450 | 1839 | 2070 | 7134 |
| R40-5B2-OFSW-380-639-0.018 | 40 | 67 | 89 | 250 | 639 | 2070 | 7134 |
| R40-5B2-OFSW-580-839-0.018 | 40 | 67 | 89 | 450 | 839 | 2070 | 7134 |
| R40-5B2-OFSW-780-1039-0.018 | 40 | 67 | 89 | 650 | 1039 | 2070 | 7134 |
| R40-5B2-OFSW-980-1239-0.018 | 40 | 67 | 89 | 850 | 1239 | 2070 | 7134 |
| R40-8B2-OFSW-1180-1439-0.018 | 40 | 74 | 130 | 1000 | 1439 | 3634 | 10603 |
| R40-8B2-OFSW-1580-1839-0.018 | 40 | 74 | 130 | 1400 | 1839 | 3634 | 10603 |
| R40-8B2-OFSW-380-639-0.018 | 40 | 74 | 130 | 200 | 639 | 3634 | 10603 |
| R40-8B2-OFSW-580-839-0.018 | 40 | 74 | 130 | 400 | 839 | 3634 | 10603 |
| R40-8B2-OFSW-780-1039-0.018 | 40 | 74 | 130 | 600 | 1039 | 3634 | 10603 |
| R40-8B2-OFSW-980-1239-0.018 | 40 | 74 | 130 | 800 | 1239 | 3634 | 10603 |
| R45-10B1-OFSW-1380-1647-0.018 | 45 | 88 | 103 | 1250 | 1647 | 3115 | 7952 |
| R45-10B1-OFSW-1780-2047-0.018 | 45 | 88 | 103 | 1650 | 2047 | 3115 | 7952 |
| R45-10B1-OFSW-2480-2747-0.018 | 45 | 88 | 103 | 2350 | 2747 | 3115 | 7952 |
| R45-10B1-OFSW-680-947-0.018 | 45 | 88 | 103 | 550 | 947 | 3115 | 7952 |
| R45-10B1-OFSW-980-1247-0.018 | 45 | 88 | 103 | 850 | 1247 | 3115 | 7952 |
| R50-10B1-OFSW-1180-1462-0.018 | 50 | 93 | 103 | 1050 | 1462 | 3263 | 8835 |
| R50-10B1-OFSW-1480-1762-0.018 | 50 | 93 | 103 | 1350 | 1762 | 3263 | 8835 |
| R50-10B1-OFSW-1980-2262-0.018 | 50 | 93 | 103 | 1850 | 2262 | 3263 | 8835 |
| R50-10B1-OFSW-2580-2862-0.018 | 50 | 93 | 103 | 2450 | 2862 | 3263 | 8835 |
| R50-10B1-OFSW-580-862-0.018 | 50 | 93 | 103 | 450 | 862 | 3263 | 8835 |
| R50-10B1-OFSW-780-1062-0.018 | 50 | 93 | 103 | 650 | 1062 | 3263 | 8835 |
| R50-10B1-OFSW-980-1262-0.018 | 50 | 93 | 103 | 850 | 1262 | 3263 | 8835 |
| R50-10B2-OFSW-1180-1492-0.018 | 50 | 93 | 163 | 950 | 1492 | 5923 | 17670 |
| R50-10B2-OFSW-1480-1792-0.018 | 50 | 93 | 163 | 1250 | 1792 | 5923 | 17670 |
| R50-10B2-OFSW-1980-2292-0.018 | 50 | 93 | 163 | 1750 | 2292 | 5923 | 17670 |
| R50-10B2-OFSW-2580-2892-0.018 | 50 | 93 | 163 | 2350 | 2892 | 5923 | 17670 |
| R50-10B2-OFSW-580-892-0.018 | 50 | 93 | 163 | 350 | 892 | 5923 | 17670 |
| R50-10B2-OFSW-780-1092-0.018 | 50 | 93 | 163 | 550 | 1092 | 5923 | 17670 |
| R50-10B2-OFSW-980-1292-0.018 | 50 | 93 | 163 | 750 | 1292 | 5923 | 17670 |
