HJG-DA30AB、HJG-DA30ABL、HJG-DA35AB、HJG-DA35ABL、HJG-DA45AB、HJG-DA45ABL、HJG-DA45BB

发布时间：2025-06-19

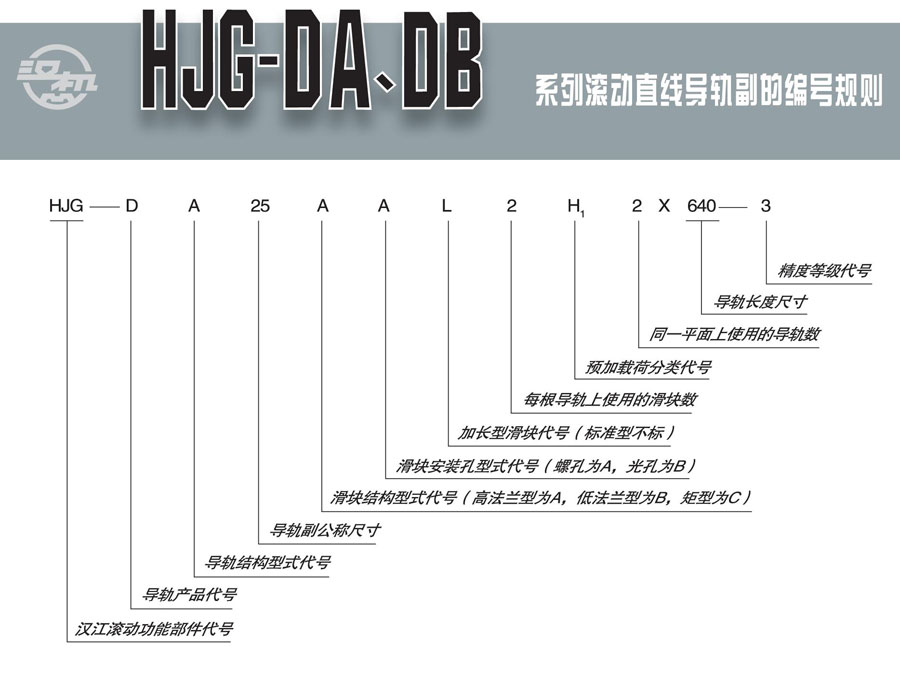

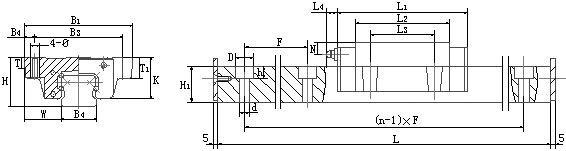

型号	导轨副尺寸		汉江滑块尺寸										重量KG
													滑块	导轨
	H	W	B1	B2	B3	K	T	T1	Ø	L1	L2	L3	个	米
HJS-DA15AB	24	16	47	4.5	38	19.4	7	11	4.5	58	40.5	30	0.2	1.5
HJS-DA20AB	30	21.5	63	5	53	24	10	10	7	70	50	40	0.36	2.3
HJS-DA20ABL										86	66		0.47
HJS-DA25AB	37	23.5	70	6.5	57	30.5	12	16	7	79.5	59	45	0.6	3.3
HJS-DA25ABL										98.5	78		0.76
HJS-DA25BB	36									79.5	59		0.57
HJS-DA25BBL										98.5	78		0.72
HJS-DA30AB	42	31	90	9	72	35	10	18	9	95.2	70	52	1.1	4.6
HJS-DA30ABL										117.2	92		1.3
HJS-DA35AB	50	33	100	9	82	38	13	21	11	107.8	81	62	1.7	6.2
HJS-DA35ABL										131.8	105		2.1
HJS-DA35BB	48									107.8	81		1.6
HJS-DA35BBL										131.8	105		1.9
HJS-DA45AB	62	37.5	120	10	100	51	15	25	13	135	102	80	3	11.1
HJS-DA45ABL										163	130		3.5
HJS-DA45BB	60									135	102		2.8
HJS-DA45BBL										163	130		3.3
HJS-DA55AB	72	43.5	140	12	116	57	20	29	14	161	118	95	4.7	14.9
HJS-DA55ABL										199	156		6
HJS-DA55BB	70									161	118		4.4
HJS-DA55BBL										199	156		5.7
HJS-DA65AB	90	53.5	170	14	142	76	23	37	16	195	147	110	8.5	21.7
HJS-DA65ABL										255	207		10.7
HJS-DA85AB	110	65	215	15	185	94	30	55	18	243.4	179	140	17	36.1
HJS-DA85ABL										300.4	236		23
型号	汉江导轨尺寸						单根	额定	额定	额定力矩			油杯尺寸
							长度	动载	静载
	L4	G	N	B4	H1	F	Lmax	C	C0	MA	MB	MC	d×D×h
								(KN)	(KN)	(N.m)	(N.m)	(N.m)
HJS-DA15AB	2.5	Φ4	4	16	15	60	500	6.07	6.8	55.5	55.5	88.8	4.5×7.5×5.3
HJS-DA20AB	11	M6	6	20	18	60	1400	11.6	14.5	92.4	92.4	154	6×9.5×8.5
HJS-DA20ABL								13.6	20.3	121.8	121.8	203
HJS-DA25AB	11	M6	7.2	23	22	60	3000	17.7	22.6	149.8	149.8	246	7×11×9
HJS-DA25ABL								20.7	34.97	244.8	244.8	402
HJS-DA25BB								17.7	22.6	149.8	149.8	246
HJS-DA25BBL								20.7	34.97	244.8	244.8	402
HJS-DA30AB	11	M6	7	28	26	80	3000	27.6	34.4	311.3	311.3	546	9×14×12
HJS-DA30ABL								33.4	45.8	560	560	745.2
HJS-DA35AB	11	M6	8	34	29	80	3000	35.1	47.2	488	488	790	9×14×12
HJS-DA35ABL								39.96	64.85	681	681	1102.45
HJS-DA35BB								35.1	47.2	488	488	790
HJS-DA35BBL								39.96	64.85	681	681	1102.45
HJS-DA45AB	11	M6	12	45	38	100	3000	42.5	71	848	848	1448	14×20×16
HJS-DA45ABL								64.4	102.1	1345.4	1345.4	2247.25
HJS-DA45BB								42.5	71	848	848	1448
HJS-DA45BBL								64.4	102.1	1345.4	1345.4	2247.25
HJS-DA55AB	14	M8×1	12	53	44	120	3000	79.4	101	1547	1547	2580	16×23×20
HJS-DA55ABL								92.2	142.5	2264.3	2264.3	3776.25
HJS-DA55BB	14	M8×1	12	53	44	120	3000	79.4	101	1547	1547	2580
HJS-DA55BBL								92.2	142.5	2264.3	2264.3	3776.25
HJS-DA65AB	14	M8×1	12	63	53	150	3000	115	163	3237	3237	4860	18×26×22
HJS-DA65ABL								148	224.5	4627.5	4627.5	6945.75
HJS-DA85AB	14	M8×1	14	85	65	180	3000	172.2	257.4	6076.4	6076.4	12842	24×35×28
HJS-DA85ABL								202.3	327.6	9946.3	9946.3	15410
