说明: 1、座的上下有两个滑槽,在机架上可以往返移动,因此适合于需要调整轴间距离的场合,机械在运转中轴心亦可移动。多用于皮带、链条等传动轴上。 2、所承受的负荷较UCT300型要大。 | ||||||||||||||||||||

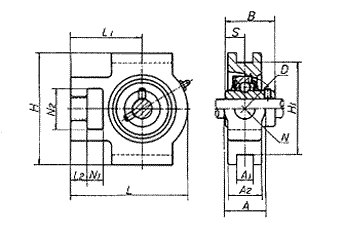

带座轴承代号 | 外形尺寸 (mm) | 带座轴承重量(Kg) | 配用轴承代号 | 配用轴承座代号 | ||||||||||||||||
新代号 | 旧代号 | D | B | S | L | L1 | L2 | H | H1 | A | A1 | A2 | N | N1 | N2 | 新代号 | 旧代号 | 新代号 | 旧代号 | |
UCT305 | K90605 | 62 | 38 | 15 | 122 | 76 | 12 | 89 | 80 | 36 | 12 | 26 | 26 | 16 | 36 | 1.4 | UC305 | 90605 | T305 | K605 |
UCT306 | K90606 | 72 | 43 | 17 | 137 | 85 | 14 | 100 | 90 | 41 | 16 | 28 | 28 | 18 | 41 | 1.8 | UC306 | 90606 | T306 | K606 |
UCT307 | K90607 | 80 | 48 | 19 | 150 | 94 | 15 | 111 | 100 | 45 | 16 | 32 | 30 | 20 | 45 | 2.4 | UC307 | 90607 | T307 | K607 |
UCT308 | K90608 | 90 | 52 | 19 | 162 | 100 | 17 | 124 | 112 | 50 | 18 | 34 | 32 | 22 | 50 | 3.0 | UC308 | 90608 | T308 | K608 |
UCT309 | K90609 | 100 | 57 | 22 | 178 | 110 | 18 | 138 | 125 | 55 | 18 | 38 | 34 | 24 | 55 | 4.0 | UC309 | 90609 | T309 | K609 |
UCT310 | K90610 | 110 | 61 | 22 | 191 | 117 | 20 | 151 | 140 | 61 | 20 | 40 | 37 | 27 | 61 | 5.0 | UC310 | 90610 | T310 | K610 |
UCT311 | K90611 | 120 | 66 | 25 | 207 | 127 | 21 | 163 | 150 | 66 | 22 | 44 | 39 | 29 | 66 | 6.4 | UC311 | 90611 | T311 | K611 |
UCT312 | K90612 | 130 | 71 | 26 | 220 | 135 | 23 | 178 | 160 | 71 | 22 | 46 | 41 | 31 | 71 | 7.6 | UC312 | 90612 | T312 | K612 |
UCT313 | K90613 | 140 | 75 | 30 | 238 | 146 | 25 | 190 | 170 | 80 | 26 | 50 | 43 | 32 | 70 | 9.7 | UC313 | 90613 | T313 | K613 |
UCT314 | K90614 | 150 | 78 | 33 | 252 | 155 | 25 | 202 | 180 | 90 | 26 | 52 | 46 | 36 | 85 | 11.0 | UC314 | 90614 | T314 | K614 |
UCT315 | K90615 | 160 | 82 | 32 | 262 | 160 | 25 | 216 | 192 | 90 | 26 | 55 | 46 | 36 | 85 | 14.0 | UC315 | 90615 | T315 | K615 |
UCT316 | K90616 | 170 | 86 | 34 | 282 | 174 | 28 | 230 | 204 | 102 | 30 | 60 | 53 | 42 | 98 | 16.0 | UC316 | 90616 | T316 | K616 |
UCT317 | K90617 | 180 | 96 | 40 | 298 | 183 | 30 | 240 | 214 | 102 | 32 | 64 | 53 | 42 | 98 | 20.0 | UC317 | 90617 | T317 | K617 |
UCT318 | K90618 | 190 | 96 | 40 | 312 | 192 | 30 | 255 | 228 | 110 | 32 | 66 | 57 | 46 | 106 | 22.0 | UC318 | 90618 | T318 | K618 |
UCT319 | K90619 | 200 | 103 | 41 | 322 | 197 | 31 | 270 | 240 | 110 | 35 | 72 | 57 | 46 | 106 | 25.0 | UC319 | 90619 | T319 | K619 |
UCT320 | K90620 | 215 | 108 | 42 | 345 | 210 | 32 | 290 | 260 | 120 | 35 | 75 | 59 | 48 | 115 | 32.0 | UC320 | 90620 | T320 | K620 |
UCT321 | K90621 | 225 | 112 | 44 | 345 | 210 | 32 | 290 | 260 | 120 | 35 | 75 | 59 | 48 | 115 | 32.0 | UC321 | 90621 | T321 | K621 |
UCT322 | K90622 | 240 | 117 | 46 | 385 | 235 | 38 | 320 | 285 | 130 | 38 | 80 | 65 | 52 | 125 | 40.0 | UC322 | 90622 | T322 | K622 |
UCT324 | K90624 | 260 | 126 | 51 | 432 | 267 | 42 | 355 | 320 | 140 | 45 | 90 | 70 | 60 | 140 | 55.0 | UC324 | 90624 | T324 | K624 |
UCT326 | K90626 | 280 | 135 | 54 | 465 | 285 | 45 | 385 | 350 | 150 | 50 | 100 | 75 | 65 | 150 | 69.0 | UC326 | 90626 | T326 | K626 |
UCT328 | K90628 | 300 | 145 | 59 | 515 | 315 | 50 | 415 | 380 | 155 | 50 | 100 | 80 | 70 | 160 | 84.0 | UC328 | 90628 | T328 | K628 |
注: 根据国标《GB/T7810》,该型作配以UEL300型轴承或UK300+H2300型轴承,可装配成为带滑块座
偏心套外球面球轴承或带滑块座紧定套外球面球轴承,本厂均生产供货。
